Arclight Arc Pro V2 Elite 4×8 CNC Plasma Table With 1.5” Thick Mild Steel Capacity and Flashcut Control System

Arclight Arc Pro V2 Elite 4×8 CNC Plasma Table With 1.5” Thick Mild Steel Capacity and Flashcut Control System is a Arclight Dynamics product in the CNC Plasma Tables collection.

Product Details

• Weight Capacity: 1.5” Thick Mild Steel
• Cutting Envelope: 51.5" x 104" x 6"
• Water Pan Capacity: 107 Gallons
• Table Power: 110V / 15-20A
• Description
• Introducing the all new Arc Pro V2 Elite 4×8 CNC Plasma Table by Arclight Dynamics. Engineered and assembled in the USA, this industrial-grade cutting machine combines precision, power, and ease of use. With its premium motion control system, it delivers smoother and more precise cuts with tighter tolerances. Designed by industry experts and backed by an industry-leading 3-year warranty, the Arc Pro V2 Elite is the ultimate turnkey solution for professionals seeking the best-in-class performance at an unbeatable price. Upgrade your cutting capabilities and experience the pinnacle of CNC plasma technology today.
• FlashCut CNC comes standard on all Arc Pro V2 Elite tables. Decades of experience, superior features and tens of thousands of satisfied customers world-wide make FlashCut’s fully integrated CAD/CAM/CNC plasma control system among the best in the world.
• Standard Performance Features
• Advanced Flashcut CNC Software
• Go from Drawing to Toolpath to Cutting all in one.
• Integrated CAD/CAM/CNC Software FlashCut CAD’s intuitive user interface makes it simple to draw and edit any 2D and 2.5D shape
• Simple import of any 2D drawing Convert any bitmap image or photo into a toolpath (outline or centerline)
• Advanced true shape nesting includes nesting of multiple CAD or DXF files and multi-sheet nesting
• Shape library allows you to instantly draw and customize common shapes DXF export for sharing drawings with other CAD programs
• Fix tool finds and corrects CAD mistakes instantly
• Easily bridge internal cut outs such as the center of an “O”
• Precision Steel Frame
• The Arc Pro V2 Elite CNC Plasma Table by Arclight Dynamics features a precision-engineered steel frame that ensures exceptional stability and durability. This robust construction minimizes vibrations, allowing for smoother and more accurate cuts with tighter tolerances. Experience the precision and reliability of the Arc Pro V2 Elite’s steel frame, delivering professional-grade results with every cut.
• Heavy duty steel frame that outperforms low cost, entry-level, thin-gauge frames
• Built to support up to 1.5″ thick mild steel
• Hand made in the USA

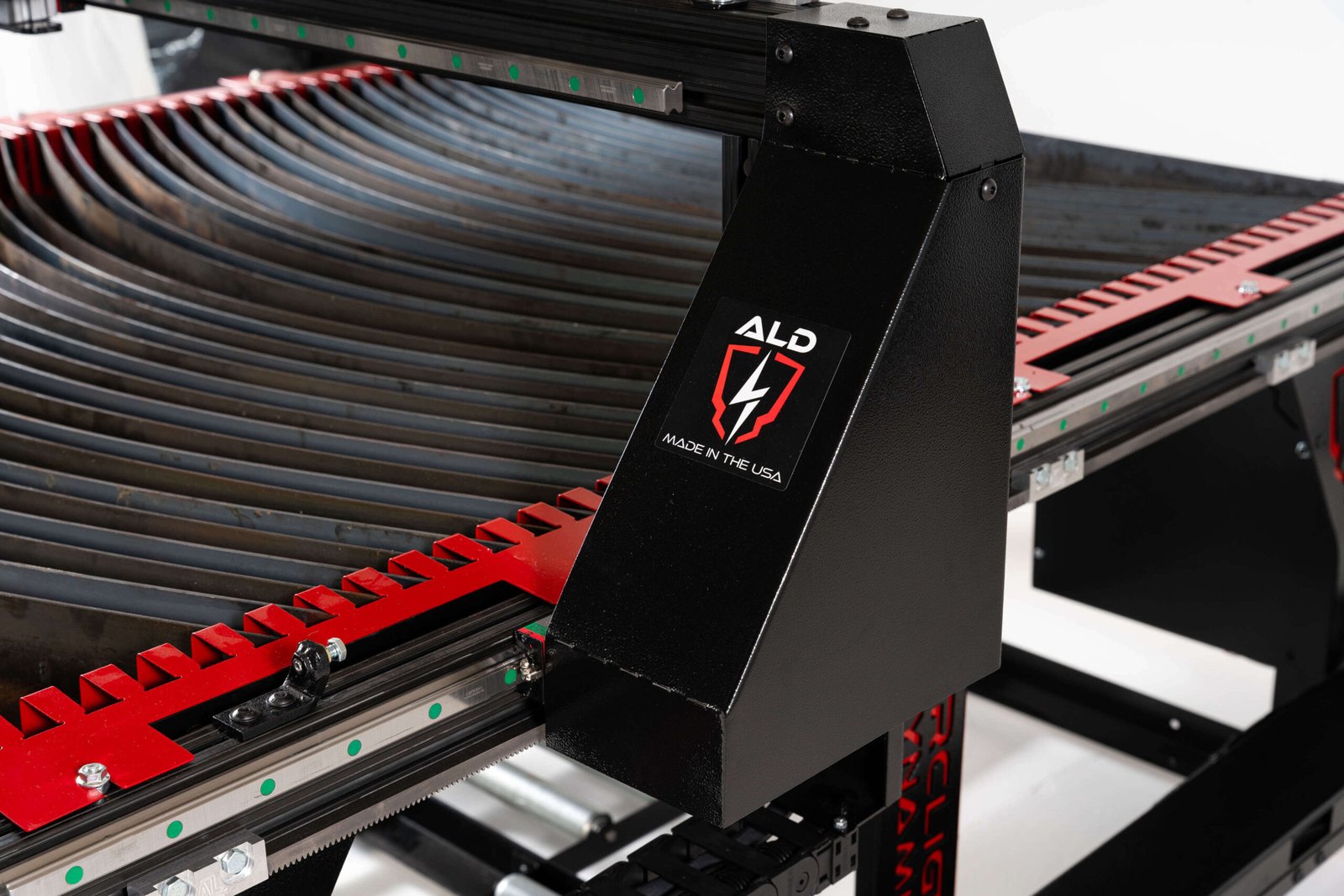

• High Speed Dual Drive Gantry
• The Arc Pro V2 Elite gantry is driven on both sides with two powerful motors. This dual drive eliminates gantry flex which allows for fast, clean, accurate cutting. This means:
• High clearance gantry comes standard
• Cleaner cuts (less clean up means more profit)
• More accurate cuts (less waste of material and time)
• Faster cut times (faster positioning between cuts reduces cut time dramatically)
• Uses precision bearings for minimal resistance and low maintenance
• Hiwin® Precision Linear Rails
• Hiwin® 20 mm precision linear guide rails
• Provides super smooth motion for unmatched cut quality
• Dual seals and scrapers maintain a clean guideway for longer life and the best protection available
• Advanced Control Systems
• With advanced features like corner and hole slow downs, reverse cut directions, contouring, and additional option inputs, you will achieve superior cut quality through simple programming that is easy to understand and use.
• The Arclight Plasma system allows for complete control of the cut: pause, fast forward, rewind and re-cut any part, virtually eliminating steel/materials waste. Their Computer Numerated Control (CNC) system provides a simple ‘click of the button’ control and operation or can operate with complex sophistication using personally generated g-code. CNC features that competitors just don’t offer.
• Preloaded with Hypertherm cut charts and toolsets
• Ethernet based communications, for more reliable faster performance.
• Industrial Linux software for reliability and ease of use
• Torch Height Control with blazing fast response
• Dynamic Voltage Sampling
• Leveling Rollers
• All-in-one leveling rollers are standard equipment with the Arc Pro V2 Elite CNC Plasma Table. Move your table and level it with ease.
• Specifications
• Overall Dimensions: 163” x 58” x 67”
• Frame: Steel
• Dimensions At Base: 72” X 120"
• Overall Weight: 1,015 Pounds
• Positioning Accuracy: .001"
• Plasma Cutter: Not Included, Sold Separately
• Available Options & Accessories
• Plasma Cutter Hypertherm Powermax 45XP Hypertherm Powermax 65 SYNC Hypertherm Powermax 85 SYNC Hypertherm Powermax 105 SYNC Hypertherm Powermax 125 Razor Cut 45di Plasma Cutter (includes torch)
• Hypertherm Powermax 45XP
• Hypertherm Powermax 65 SYNC
• Hypertherm Powermax 85 SYNC
• Hypertherm Powermax 105 SYNC
• Hypertherm Powermax 125
• Razor Cut 45di Plasma Cutter (includes torch)
• Collision Detection and Bevel Cutting System
• Laser Torch Locator
• Tsunami Regenerative Air Dryer System
• Air Filtration
• Touch Screen Monitor
• Mobile Cabinet
• Plasma Rover
• Cabinet Cover
• Green Guard Rust Blocker
• Plate Roller
• Galvanized Water Pan
• Water Pan
• Double Slats
• Plate Engraver
• Pipe Cutter
• Router Kit
• Logic Board Digitizing System (44" x 60")
• *PLASMA CUTTERS SOLD SEPERATLY

Specifications

• Manufacturer: Arclight Dynamics
• SKU: Arc Pro Elite 4 x 8
• Shipping Method: LTL Freight
• Weight: 1,200 lb
• Dimensions: 120 × 77 × 65 in
• Country of Origin: United States of America
• Warranty Details: 3 years for CommandCNC-based (Standard) Systems, 1 year for Flashcut-based (Elite and Unlimited) Systems
