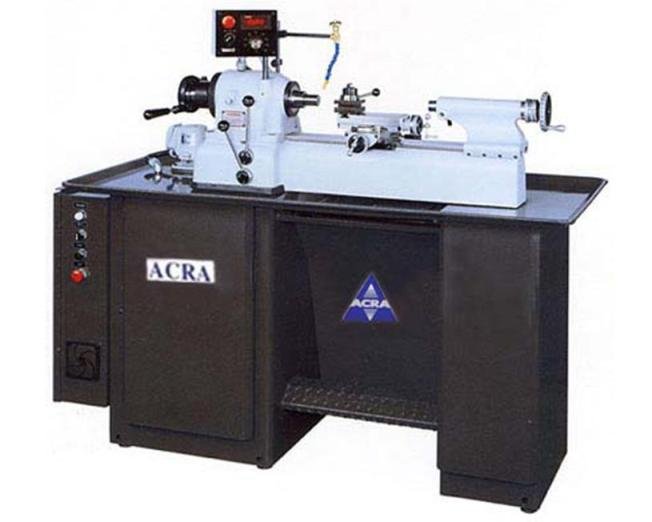

Acra Second Operation Toolmaker’s Lathe ATL27EVS

Acra Second Operation Toolmaker’s Lathe ATL27EVS is a Acra Machinery product in the Lathes collection.

Product Details

• Spindle Nose Diameter: 2 3/16"
• Spindle RPM (Variable): 0 ~ 4000 RPM
• Distance Between Center: 15"
• Swing Over Bed: 9"
• Standard Equipment
• 5C Lever Collet Closer
• Double Tool Cross Slide
• Coolant System
• Six Station Bed Turret
• Automatic Spindle Brake
• Specifications
• Spindle Nose: 5C (10º) / 4º x Taper
• Spindle Motor: 3 HP
• Hole Through Spindle: 1 1/4"
• Bar Stock Diameter (5C Collet): 1 1/16"
• Cross Slide Travel: 3 3/4"
• Coolant Pump: 1/8 HP, 220V, 3PH
• Net Weight: 990 LBS
• Shipping Weight: 1,364 LBS
• Dimensions (LxWxH): 69" x 28" x 63"

Specifications

• Manufacturer: Acra Machinery
• SKU: ATL27EVS
• Shipping Method: LTL Freight
• Weight: 1,000 lb
