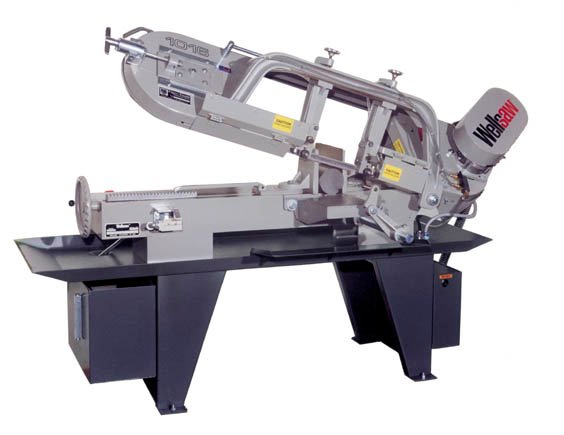

Wellsaw Model 1016 Manual Bandsaw

Wellsaw Model 1016 Manual Bandsaw is a Wellsaw product in the Band Saws collection.

Product Details

• Spring-Loaded Carbide Guides with Rollers
• 2hp Baldor Motor
• Variable Hydraulic Downfeed Control
• Flood Type Wet Cutting System
• Our most popular model. The standard in the industry since 1933. Now with more features and more flexibility. Powerful and robust. Provides fast and straight cuts for a lifetime.
• Cuts 10-1/2″ rounds
• 10″ x 16″ rectangles and 10″ x 9″ 45 degrees
• 1″ Blade
• Reliable power with a 2 HP blade motor and 4 speed drive
• Accurate feed control with variable hydraulic downfeed
• Premium carbide guides with back up rollers
• Rotary blade brush
• Available Options Include: Infinitely Variable Bandspeed, Roller Conveyors, Worklight.
• Capacity Round Flat Rectangular 45° Angle: 10.5" 16.5" 10" x 16" 10" x 9"
• Blade Size: 1" x .035" x 11'6" (138")
• Blade Speeds: 50-100-175-275 SFPM
• Blade Guides: Carbide Guides wih Rollers
• Blade Tension: Manual Rite-Tension
• Electrical Options: 115-208-230/60/1 or 208-230-460/60/3
• Coolant System: Tank Capacity 8 Gallons Submersible Pump 115V/.6 Amp/170 GPH
• Vise Control: Quick Acting / Manual Screw
• Swivel Vise: To 45°
• Feed Control: Variable Hydraulic with Counterbalance Spring
• Band Wheels: 15" Diameter Case Iron
• Bed Height: 29"
• Floor Area: 40" W x 84" L
• Shipping Weight: 900 lbs.

Specifications

• Manufacturer: Wellsaw
• SKU: Model 1016
• Shipping Method: LTL Freight
• Weight: 900 lb
• Country of Origin: United States of America
