Weldsale 5’ x 5’ Welding Table Platen and Steel Stand Bundle WSC-55B-BUNDLE

Weldsale 5’ x 5’ Welding Table Platen and Steel Stand Bundle WSC-55B-BUNDLE is a Weldsale product in the Welding Equipment collection.

Product Details

• Platen dims: 60” x 60” x 5.5”
• Platen thickness: 2.5”
• Stand size: 60” x 60” (5ftx5ft)
• Height of Platen & Stand: 32”
• Description
• This bundle consists of the Weldsale 5 ft x 5 ft Platen and 5 ft x 5 ft Steel Stand. This includes the Part Numbers: WSC-55B and WSC-55BNS, respectively.
• The overall height of Platens and Stand will be 32 inches, from floor to top of Platen. Leveling pads will increase this height!

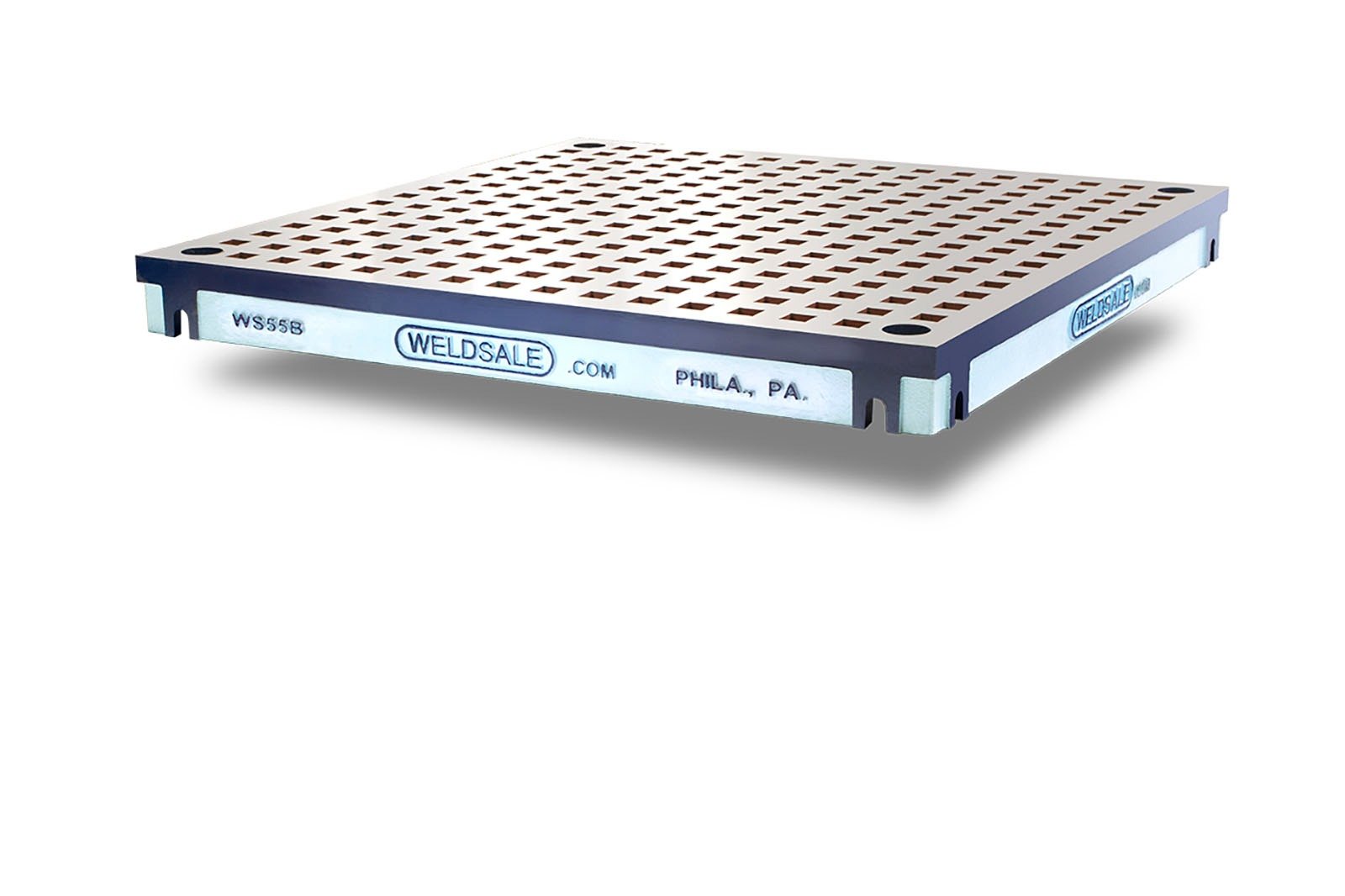

• The Platen is made of high tensile strength Cast Iron, and measures 60” x 60” x 5.5” overall height, and is 2.5” thick as measure through the square hole. The Platen is Cross Ribbed on the underside for added strength.
• The Steel Stand is fully welded of structural steel tubing and angle iron. This stand has 4 legs. The Stand is slightly smaller than the Platen so it will not interfere if you wish to bolt two or more Platens together. Platen will bolt to the Stand. Weldsale includes 4 each 1” dia. bolts, nuts, and washers with this bundle.
• (Can be purchased separately)
• Features
• High tensile strength cast iron platen
• Platen is cross ribbed on underside
• Stand is full welded structural steel tubing and angle iron
• Specifications
• Number of stand legs: 4
• Approx Weight: 2,425 lbs
• Optional Add-Ons
• Custom stand heights available

Specifications

• Manufacturer: Weldsale
• SKU: WSC-55B-BUNDLE
• Shipping Method: LTL Freight
• Weight: 2,425 lb
• Dimensions: 60 × 60 × 60 in
