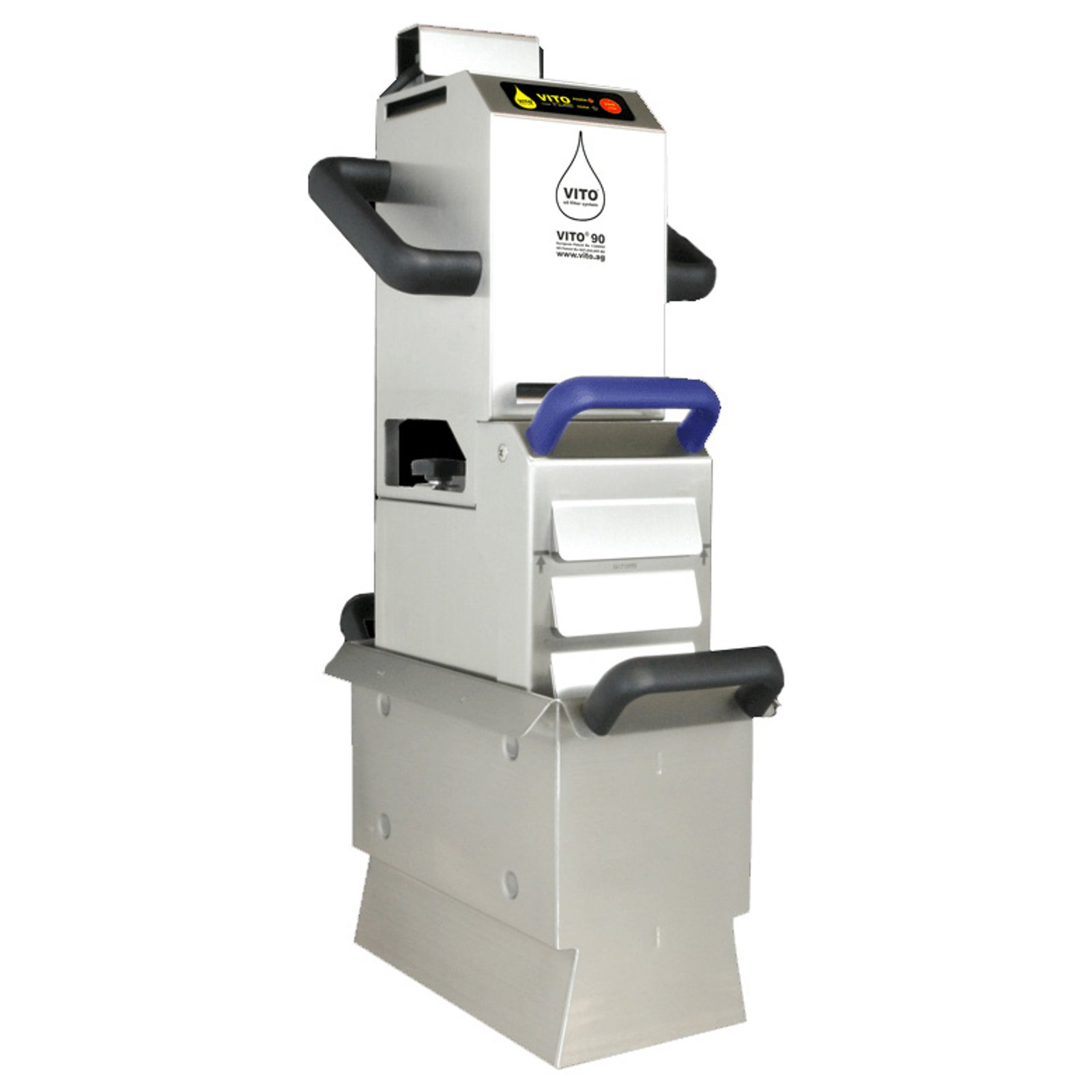

Vito 90 Portable Coolant Lubricant and Oil Filtration System 102409

Vito 90 Portable Coolant Lubricant and Oil Filtration System 102409 is a VITO AG product in the Coolant & Lubrication collection.

Product Details

• Filtration Power: Up to 198 lbs/min
• Particle Uptake: 5.5 lbs
• Suction Depth: ~ 17.7 in
• Max Temperature: 397°F
• Description
• The VITO 90 cleans your coolant in an easy and continuous way. The VITO is placed directly in the lubricant and filters it from chips and other micro-particles without supervision. VITO 90 is suitable for all industrial basins, large volumes of coolant are a breeze, it can filter up to 198 lbs. per minute. In addition, VITO ventilates the lubricant during the filtration. After the set time (standard 10 minutes) VITO stops automatically and takes a break (standard 3 hours) before the filtration will be automatically started again. The result is a clean high quality coolant lubricant, oil and watery solution – freed from chips and solids
• Functionality:

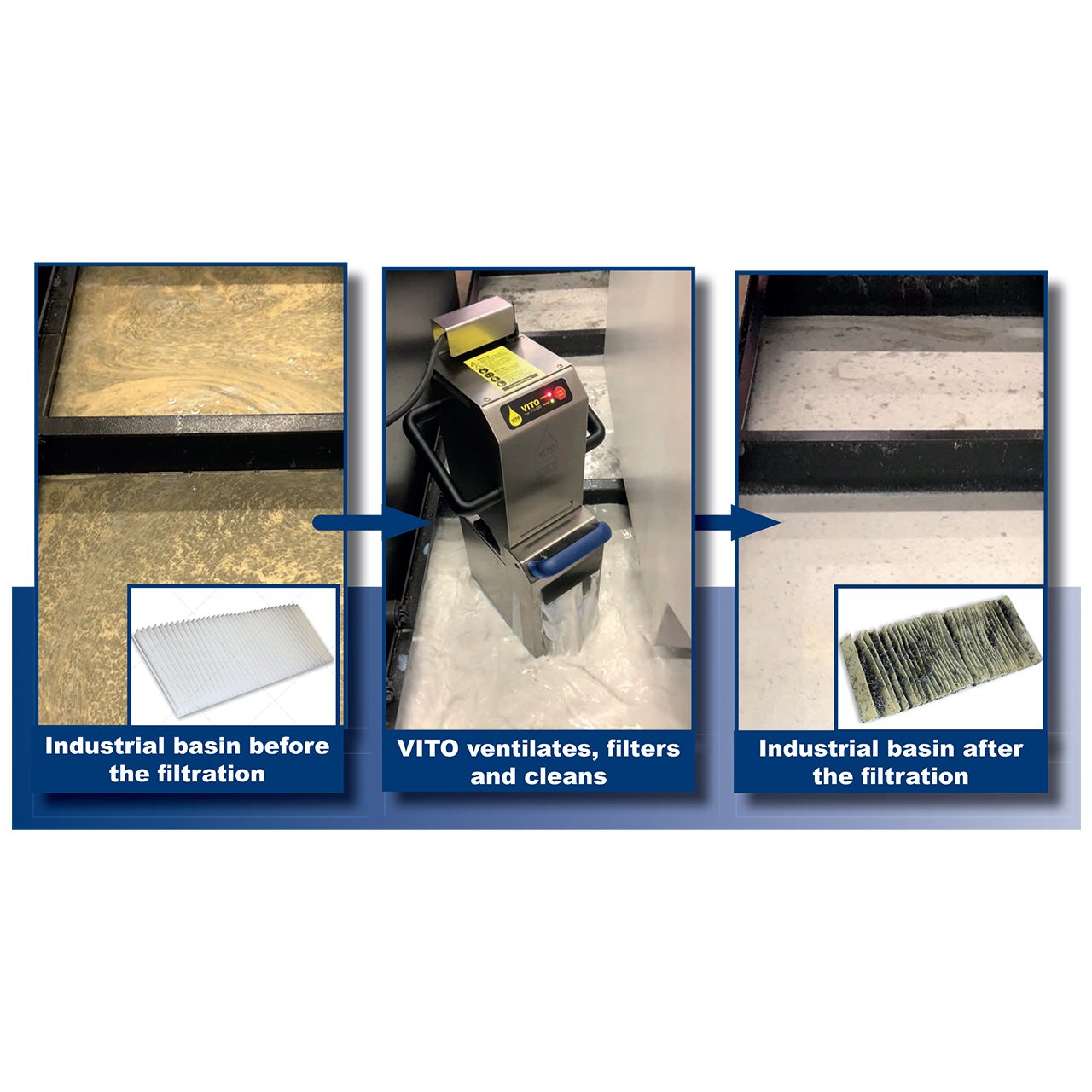

• VITO cleans and ventilates your coolant lubricant to ensure its optimum quality. The VITO is placed directly into the basin. The vortex created by the machine removes chips and microparticles up to 5 μm from your fluid and keeps it ventilated to prevent the growth of fungus & bacteria. Due to the extended service life and the decreased tool wear, you achieve a reduction of your operating costs as well as a consistent quality of your workpieces.
• Features

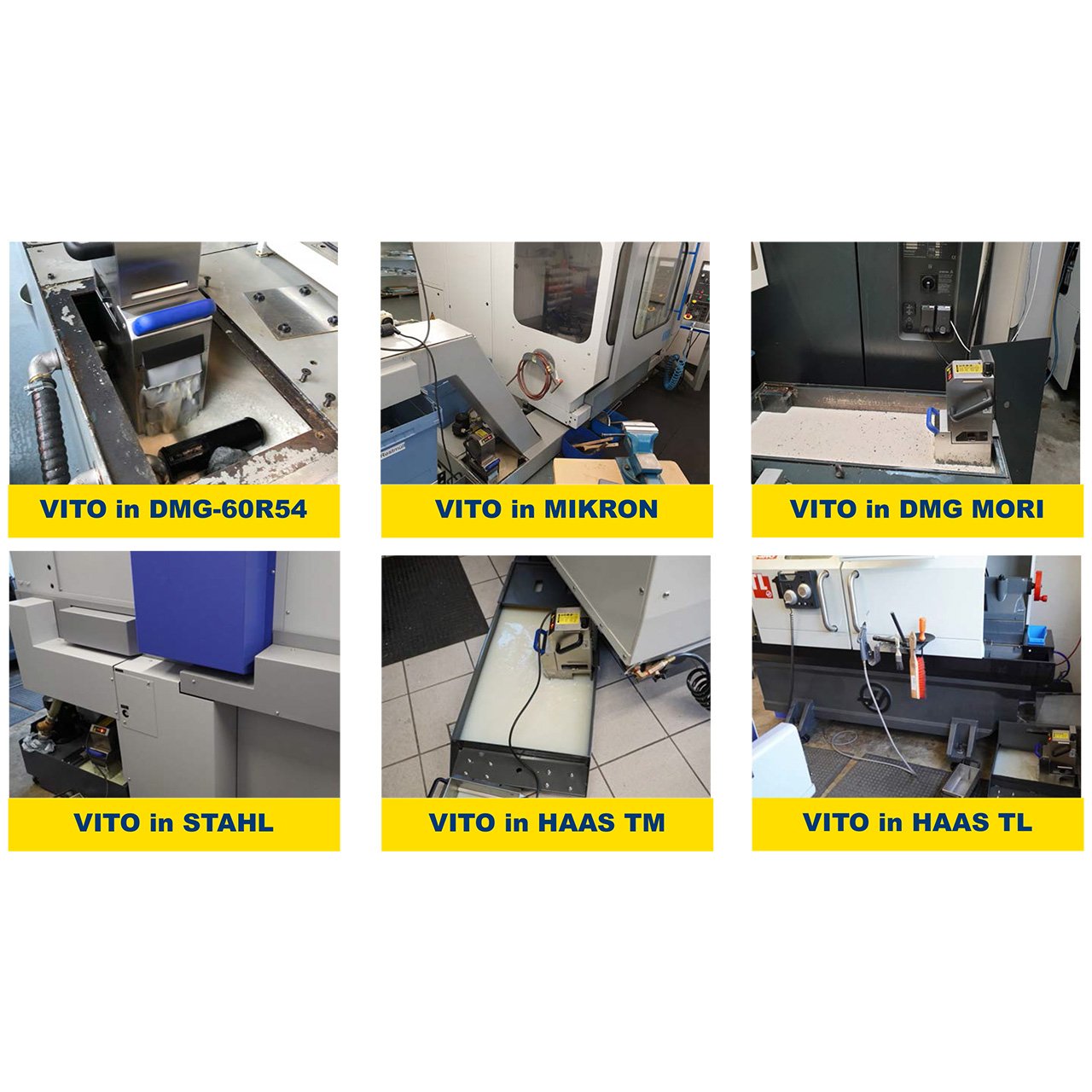

• Built for all industrial basins
• Pressure flow filtration at operating temperature up to 392 °F
• Automatic filtration – VITO stops after set filtration time
• Different filtration modes – continuous (standard), once and customized
• Automatic safety off – VITO has integrated heat protection
• Made from rustproof materials
• Removable internal filters (closed internal filters on request)
• Pump-filter unit and drip pan can be machine cleaned
• Acoustic and visual signals
• Specifications
• Filtration: Up to 5 ųm / 200min
• Cycle Time: 10 min (adjustable)
• Weight: 20.3 lbs
• Temperature: Max. 200°C / 397°F
• Material: Stainless Steel 1.4301
• Maximum Power: 500 Watts

Specifications

• Manufacturer: VITO AG
• SKU: 102409
• Shipping Method: Ground
• Weight: 34 lb
• Dimensions: 22 × 17 × 12 in
• Country of Origin: Germany
• Warranty: 1 Year (Parts)
