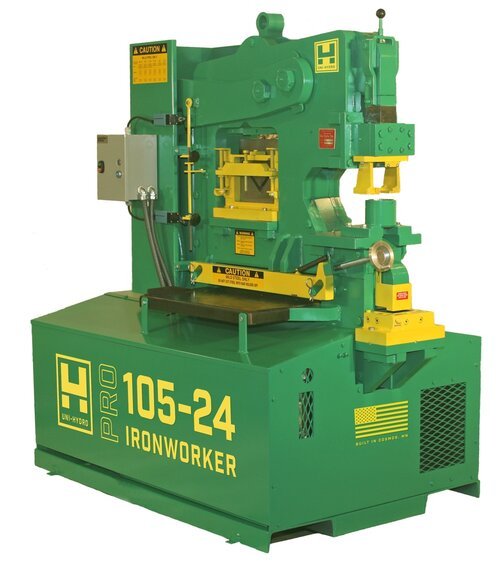

Uni-Hydro PRO 105-24 220V Three Phase 105 Ton Hydraulic Ironworker 110530

Uni-Hydro PRO 105-24 220V Three Phase 105 Ton Hydraulic Ironworker 110530 is a Uni-Hydro product in the Ironworkers collection.

Product Details

• Manual punch aligner
• Magnetic starter for safety & reliability
• Motor: 7.5 HP, 220 Volt, 3 Phase
• Made In The USA
• Description
• If you appreciate well-built machinery, the Uni-Hydro Model 105-24 is the ironworker for you. This machine has been overbuilt on massive scale to handle the toughest fabrication job with ease. Competitor ironworkers are not only dwarfed by the size of “The 105”, most don’t even offer a true integrated 4-station design. They attempt to weld on a notcher and claim a 4th, NOT UNI-HYDRO!
• The PRO Series of Uni-Hydro are machines designed with a Flat Bar Shear, Power Cavity, Punch Station and Notching Station.
• Their machines are made in the USA, not assembled from imported parts. All Uni-Hydro machines are built from the ground up at their factory in Cosmos, MN.
• Features
• 105-ton open throat punch with manual punch aligner
• Full 4th Notcher Station – Choice of Square, V Coper or Pipe Notcher
• 4-Way 24″ low rake flat bar shear blades
• Flat bar shear table
• Fixed or adjustable bar shear hold down
• Electric foot control
• Variable electric stroke control
• Grease bank for lubricating machine without removing covers
• 2-1/4″ Stripper
• L 150 & 500 Series punch and die adaptor kit that accepts up to 2-1/4″ dia punching
• Eyelet & forklift accommodations
• Specifications
• Model: PRO 105-24
• Tonnage: 105
• Throat Depth: 12"
• Punch: 1-5/16” hole in 1" mild steel 2-1/4" hole in 7/16” mild steel
• 1-5/16” hole in 1" mild steel
• 2-1/4" hole in 7/16” mild steel
• Bar Shear: 1/4" x 24" , 1/2” x 20” 3/4” x 12”, 1” x 8”
• 1/4" x 24" , 1/2” x 20”
• 3/4” x 12”, 1” x 8”
• Angle Shear 90°: Slug Type – 6" x 6" x 1/2" Sever Cut – 4" x 4" x 3/8"
• Slug Type – 6" x 6" x 1/2"
• Sever Cut – 4" x 4" x 3/8"
• Miter Angle 45°: Slug Type – 4" x 4" x 1/2" Sever Cut – 4" x 4" x 3/8"
• Slug Type – 4" x 4" x 1/2"
• Rod Shear: Round (Max) – 1-1/4" Square (Max) – 1-1/4”
• Round (Max) – 1-1/4"
• Square (Max) – 1-1/4”
• V Coper Notcher 90°: Notcher Station 3" x 3" x 1/4” Punch/Power Cavity 4" x 4" x 1/2”
• Notcher Station 3" x 3" x 1/4”
• Punch/Power Cavity 4" x 4" x 1/2”
• Square Notcher: Notcher Station 3" x 3" x 3/8” Punch/Power Cavity 3" x 3" x 3/8”
• Notcher Station 3" x 3" x 3/8”
• Punch/Power Cavity 3" x 3" x 3/8”
• Pipe Notcher (Sch 40 or 80): 1/2", 3/4", 1", 1-1/4", 1-1/2", 1-3/4”, 2" – Larger avail
• Brake: 6", 9”, 14”, 18”, 24” capacity
• Channel Shear: 2" & 3" combined or 4", 5”, 6” standard
• Strokes Per Min: Light Material – 40 Max Capacity – 8
• Light Material – 40
• Max Capacity – 8
• Hydraulics: 3,000 psi
• Oil Capacity: 28 gallons
• Motor: 7.5 HP, 220 Volt, Three Phase
• Dimensions (L x W x H): 61.5" x 41" x 69.5"
• Bar Shear Work Height: 30-3/4"
• Punch Table Top Height: 40-1/2"
• Cavity Table Top Height: 41-3/4"
• Notcher Station Work Height: 26-3/4”
• Weight (May Vary): 4,640 lbs
• Optional Tooling & Accessories
• V-Coper Notcher
• Square Notcher
• Pipe Notcher
• Slug Type Angle Shear
• Universal Sever Housing
• Sever Plates
• Sever Housing Back
• 2-Part Brake
• Spring Return Brake
• Punch Table + Adjusting Jig
• Bar Shear Table
• Steel Bin Catcher
• Deluxe Back Gauge
• Bar Shear Stop
• Grease Bank
• Remote Foot Switch
• Oversize Die Stands
• Punch Nut Wrenches
• Punch Rack
• Oversize Die Stand
• Offset Die Stands
• Offset L100 Die Stand
• Oversize Punches
• Special Die Stand

Specifications

• Manufacturer: Uni-Hydro
• SKU: 110530
• Shipping Method: LTL Freight
• Weight: 4,640 lb
• Dimensions: 62 × 41 × 70 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
