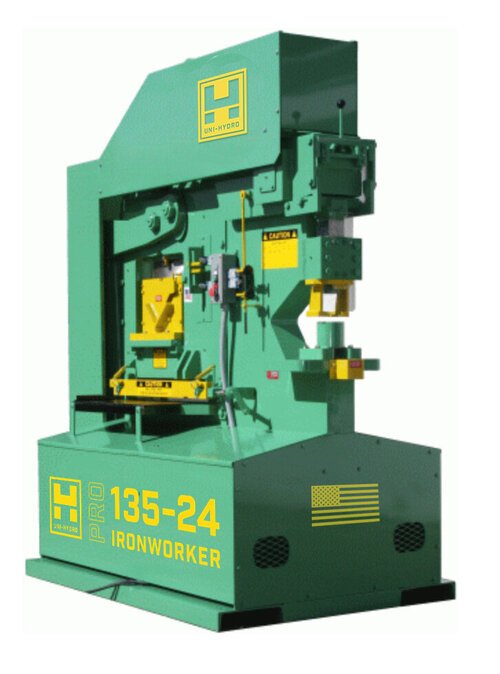

Uni-Hydro 7.5HP 220V Single Phase PRO 135 Ton Ironworker with 24” Bar Shear Blade 112010

Uni-Hydro 7.5HP 220V Single Phase PRO 135 Ton Ironworker with 24” Bar Shear Blade 112010 is a Uni-Hydro product in the Ironworkers collection.

Product Details

• Tonnage: 135
• Throat Depth: 12"-24”
• Hydraulics: 3,000 psi
• Oil Capacity: 28 gallons
• Description
• Uni-Hydro takes the business of building mammoth ironworkers to a new level with the PRO 135 and 150 ton models. These hulking machines are constructed in the same spirit as their forbearers from the Golden Age of machine tools with weldments up to 9” thick, a foot of metal surrounding the punch and weights of almost a ton more than the PRO 125 ton.
• Uni-Hydro’s PRO Series Dual Operator models are designed with separate cylinders allowing operators to run both the punching station and the back shearing section, which includes a flat bar shear, a power cavity, and a notching station.
• Features
• 135-ton open throat punch
• Four different work stations can be used without retooling stations
• Manual punch aligner – Punches and dies can be aligned without lowering machine under power
• Two-stage hydraulic pump
• Two-cylinder design maximizes machine strength, safety, reliability, and life
• 24″ bar shear with 4-sided blades
• Magnetic starter for safety and reliability
• Fixed or adjustable bar shear hold-down
• Portable electric foot control
• Built for forklift handling
• Variable stroke control
• Specifications
• Model: PRO 135
• Punch 1-11/16” hole in 1" 2-1⁄4” hole in 3/4”
• 1-11/16” hole in 1"
• 2-1⁄4” hole in 3/4”
• Bar Shear: 1/2" x 24", 5/8” x 20”, 3/4” x 18”, 1” x 12”
• Angle Shear 90° Slug Type: 6" x 6" x 1/2" Sever Cut: 6" x 6" x 3/8"
• Slug Type: 6" x 6" x 1/2"
• Sever Cut: 6" x 6" x 3/8"
• Miter Angle 45° Slug Type: 4" x 4" x 1/2" Sever Cut: 4" x 4" x 3/8"
• Slug Type: 4" x 4" x 1/2"
• Sever Cut: 4" x 4" x 3/8"
• Rod Shear Round (Max): 1-1/4" Square (Max): 1-1/4”
• Round (Max): 1-1/4"
• Square (Max): 1-1/4”
• V Coper Notcher 90° Notcher Station: 4" x 4" x 5/16” Punch/Power Cavity: 4" x 4" x 1/2”
• Notcher Station: 4" x 4" x 5/16”
• Punch/Power Cavity: 4" x 4" x 1/2”
• Square Notcher Notcher Station: 3" x 3" x 5/16” Punch/Power Cavity: 3" x 3" x 3/8”
• Notcher Station: 3" x 3" x 5/16”
• Punch/Power Cavity: 3" x 3" x 3/8”
• Pipe Notcher (Sch 40 or 80): 1/2", 3/4", 1", 1-1/4", 1-1/2", 1-3/4”, 2" – Larger avail
• Brake: 6", 9”, 14”, 18”, 24” capacity
• Channel Shear: 2", 3", 4", 5”, 6”, 7”, 8”
• Strokes Per Min Light Material: 40 Max Capacity: 8
• Light Material: 40
• Max Capacity: 8
• Motor: 7.5 HP / 220v / 1ph
• Dimensions (L x W x H): 79" x 46" x 91.5"
• Bar Shear Work Height: 32.5"
• Punch Table Top Height: 39"
• Cavity Table Top Height: 43"
• Notcher Station Work Height: 43"
• Weight: 7,220 lbs.
• Options
• V-Coper Notcher
• Square Notcher
• Pipe Notcher
• Slug Type Angle Shear
• Universal Sever Housing
• Sever Plates
• Sever Housing Back
• 2-Part Brake
• Spring Return Brake
• Punch Table + Adjustable Jig
• Bar Shear Table: Extends table from 3” to 12”
• Steel Bin Catcher
• Deluxe Back Gauge: For shearing up to 6’ pieces
• Bar Shear Stop: For shearing up to 24” long pieces
• Grease Bank
• Oversize Die Stands
• Punch Nut Wrenches
• Punch Rack
• Offset Die Stands
• Oversize Punches
• Special Die Stand

Specifications

• Manufacturer: Uni-Hydro
• SKU: 112010
• Shipping Method: LTL Freight
• Weight: 7,320 lb
• Dimensions: 84 × 51 × 97 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
