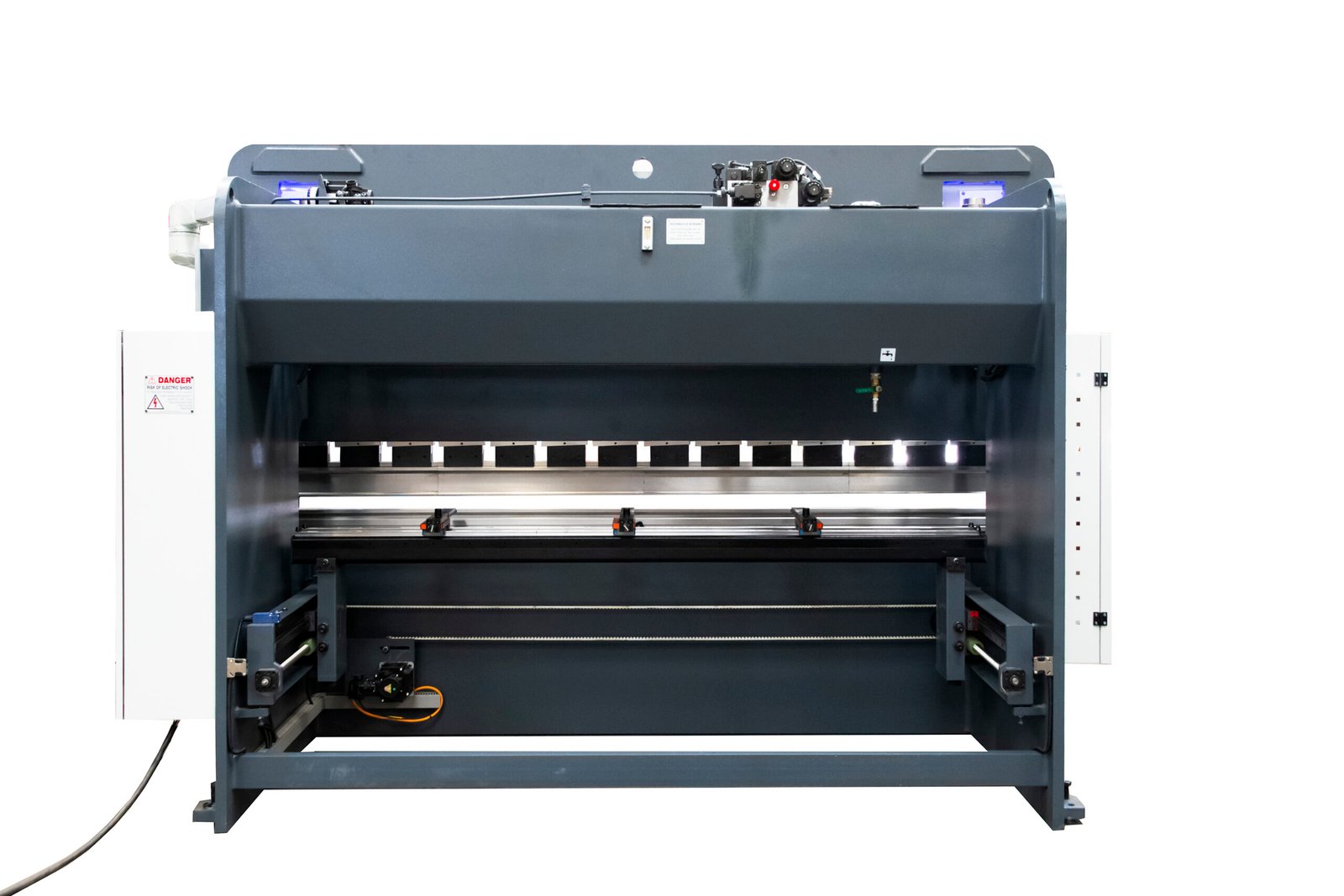

U.S. Industrial Machinery 22 Ton x 4′ Manual Hydraulic Press Brake USHB22-4M

U.S. Industrial Machinery 22 Ton x 4′ Manual Hydraulic Press Brake USHB22-4M is a U.S. Industrial Machinery product in the Press Brakes collection.

Product Details

• Tonnage: 22
• Working Length: 52 in
• Distance Between Columns: 40.16 in
• Throat Depth: 7.87 in
• Description
• At U.S. Industrial Machinery, we carry a wide variety of hydraulic press brake models to meet the unique needs of the various businesses we serve throughout the country. Our press brakes range in size from 22 tons to 440 tons and bed lengths from 4’ to 13’ with CNC or manual controls. In addition to our standard inventory, we can accommodate custom orders for specialty length requests and tonnage.
• Manual Control Press Brakes
• For industries and jobs that don’t require the detail and precision achieved with CNC controls, our manual control press brakes offer ease of use when you’re looking to keep things simple. The manual press brakes have all the same safety features of the CNC models, manual press brakes are powerful machines that are easy to get started on and great for more straightforward jobs. They include a front-operated power back-gauge and ram adjust with digital readouts and fine adjustment handwheels for both. Our models range from 22 tons to 440 tons.
• Standard Equipment
• Torsion bar design for parallelism
• Servo X-axis (back gauge positioning) – faster and more accurate
• Servo Y-axis (ram depth) – faster and more accurate
• OSHA required light curtains across the front of the machine
• Support arms across the front of the machine
• Photo-electric eye on rear of machine for added safety
• Forged heavy duty cylinders and cylinder bodies
• 3-speed ram
• Rapid approach, bending, and rapid retreat
• Bottom time delay
• Inching, cycle, and auto-run
• Versatile set of tooling including goose-neck punch and 4-sided die with multiple v-openings
• Space between ram clamps allows for deep box bending
• Versatile ram clamps that can accept standard tang tooling, American safety tang tooling, or European Z1 tooling
• Specifications
• Working Lenth: 52 in
• Working Length (Feet): 4’
• Ram Travel: 3.94 in
• Open Height: 13.39 in
• Ram Travel Adjustment: 1.97 in
• Main Motor: 5 HP
• Approaching: 3.54 in
• Pressing: 0.39 in
• Return: 2.76 in
• Dimensions (LWH): 71” x 57” x 85”
• Oil Capacity: 21 Gallons
• Weight: 5,292 lbs
• Available Upgrades/Options
• Fiessler laser guarding for added safety and small part applications
• Third axis controlling back gauge height
• CNC controlled crowning
• Quick release ram clamps for fast tool changes
• Training at customer’s site by a U.S. Industrial Machinery technician
• Custom tooling for specific applications

Specifications

• Manufacturer: U.S. Industrial Machinery
• SKU: USHB22-4M
• Shipping Method: Flatbed
• Weight: 4,400 lb
• Dimensions: 73 × 56 × 77 in
• Warranty: 1 Year (Parts)
