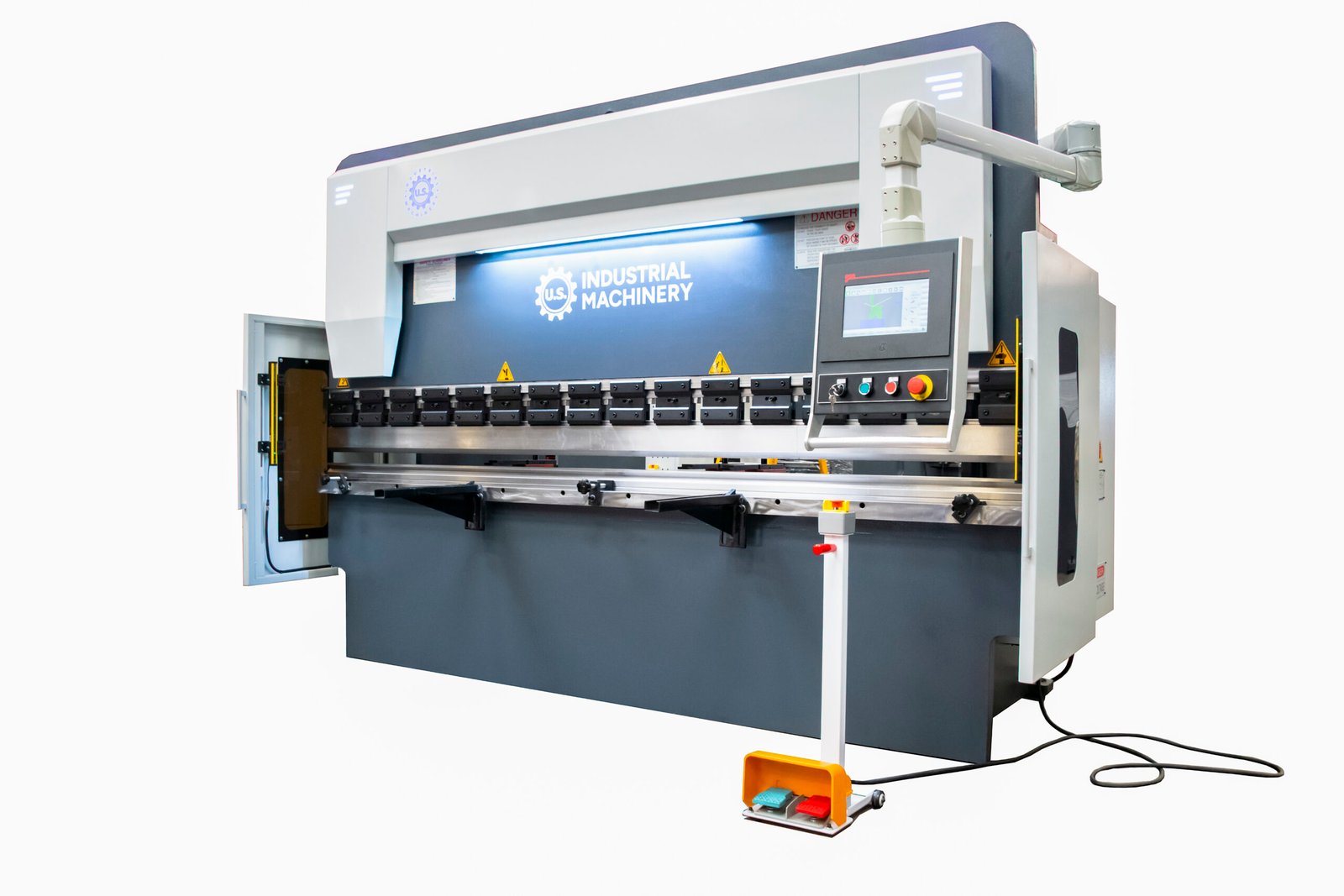

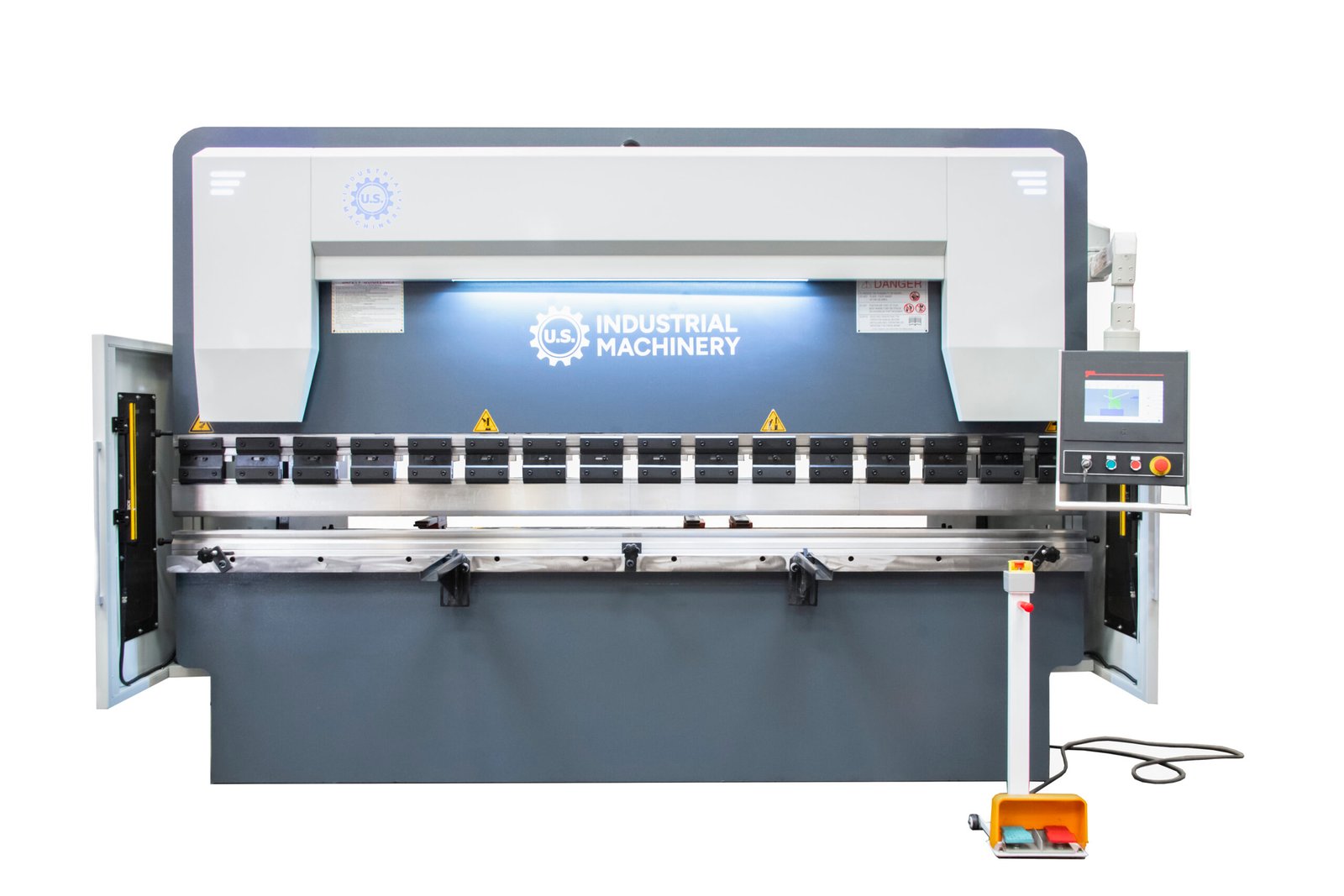

U.S. Industrial Machinery 125 Ton x 10′ Hydraulic CNC Press Brake USHB125-10C

U.S. Industrial Machinery 125 Ton x 10′ Hydraulic CNC Press Brake USHB125-10C is a U.S. Industrial Machinery product in the Press Brakes collection.

Product Details

• Tonnage: 125
• Working Length: 126 in
• Distance Between Columns: 100.39 in
• Throat Depth: 12.60 in
• Description
• At U.S. Industrial Machinery, we carry a wide variety of hydraulic press brake models to meet the unique needs of the various businesses we serve throughout the country. Our press brakes range in size from 22 tons to 440 tons and bed lengths from 4’ to 13’ with CNC or manual controls. In addition to our standard inventory, we can accommodate custom orders for specialty length requests and tonnage.
• CNC Control Press Brake Features
• Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume. These machines can handle the most demanding jobs with impeccable details. The capability to use a removable USB drive means that additional program storage is virtually limitless. Other key features include:
• 6” LCD touchscreen to control the bend angle and back-gauge position
• 10 bends per program or cross-section
• Up to 20 punch library and up to 50 die library
• Auto bend sequence
• Auto back-gauge retract
• Spread length
• Interference bend chart
• Calculated bend allowance
• Programmable ram dwell
• And more
• About ESA CNC Controllers
• U.S. Industrial’s standard USHB Series press brake comes with an ESA 929 CNC control. ESA CNC controllers offer users a reliable and cost-effective solution for press brakes, making them an excellent option for operators that want advanced functionality without overspending. Known for being user-friendly, these controllers provide operators with the ability to quickly set up and run jobs with precision, reducing downtime and increasing efficiency. Their intuitive touchscreens and easy-to-follow programming allow even less experienced operators to produce accurate bends, which helps improve consistency and overall productivity on the shop floor.
• What makes ESA CNC controllers particularly appealing is their balance of affordability and versatility. They support a wide range of bending applications while offering features typically found in higher-priced control systems. This means fabricators can handle complex parts, multiple bends, and repeat jobs with confidence—all at a price point that fits within tighter budgets. For shops looking to maximize the capability of their press brake investment, ESA controllers deliver the performance needed without the premium price tag.
• Standard Equipment
• Torsion bar design for parallelism
• Servo X-axis (back gauge positioning) – faster and more accurate
• Servo Y-axis (ram depth) – faster and more accurate
• OSHA required light curtains across the front of the machine
• Support arms across the front of the machine
• Photo-electric eye on rear of machine for added safety
• Forged heavy duty cylinders and cylinder bodies
• 3-speed ram
• Rapid approach, bending, and rapid retreat
• Bottom time delay
• Inching, cycle, and auto-run
• Versatile set of tooling including goose-neck punch and 4-sided die with multiple v-openings
• Space between ram clamps allows for deep box bending
• Versatile ram clamps that can accept standard tang tooling, American safety tang tooling, or European Z1 tooling
• Specifications
• Working Lenth: 126 in
• Working Length (Feet): 10’
• Ram Travel: 5.12 in
• Open Height: 14.96 in
• Ram Travel Adjustment: 3.35 in
• Main Motor: 10 HP
• Approaching: 3.15 in
• Pressing: 0.33 in
• Return: 2.76 in
• Dimensions (LWH): 146” x 73” x 101”
• Oil Capacity: 53 Gallons
• Weight: 17,199 lbs
• Available Upgrades/Options
• Upgrade ESA 929 to a different ESA controller
• Fiessler laser guarding for added safety and small part applications
• Third axis controlling back gauge height
• CNC controlled crowning
• Quick release ram clamps for fast tool changes
• Training at customer’s site by a U.S. Industrial Machinery technician
• Custom tooling for specific applications

Specifications

• Manufacturer: U.S. Industrial Machinery
• SKU: USHB125-10C
• Shipping Method: Flatbed
• Weight: 18,739 lb
• Dimensions: 148 × 64 × 101 in
• Warranty: 1 Year (Parts)
