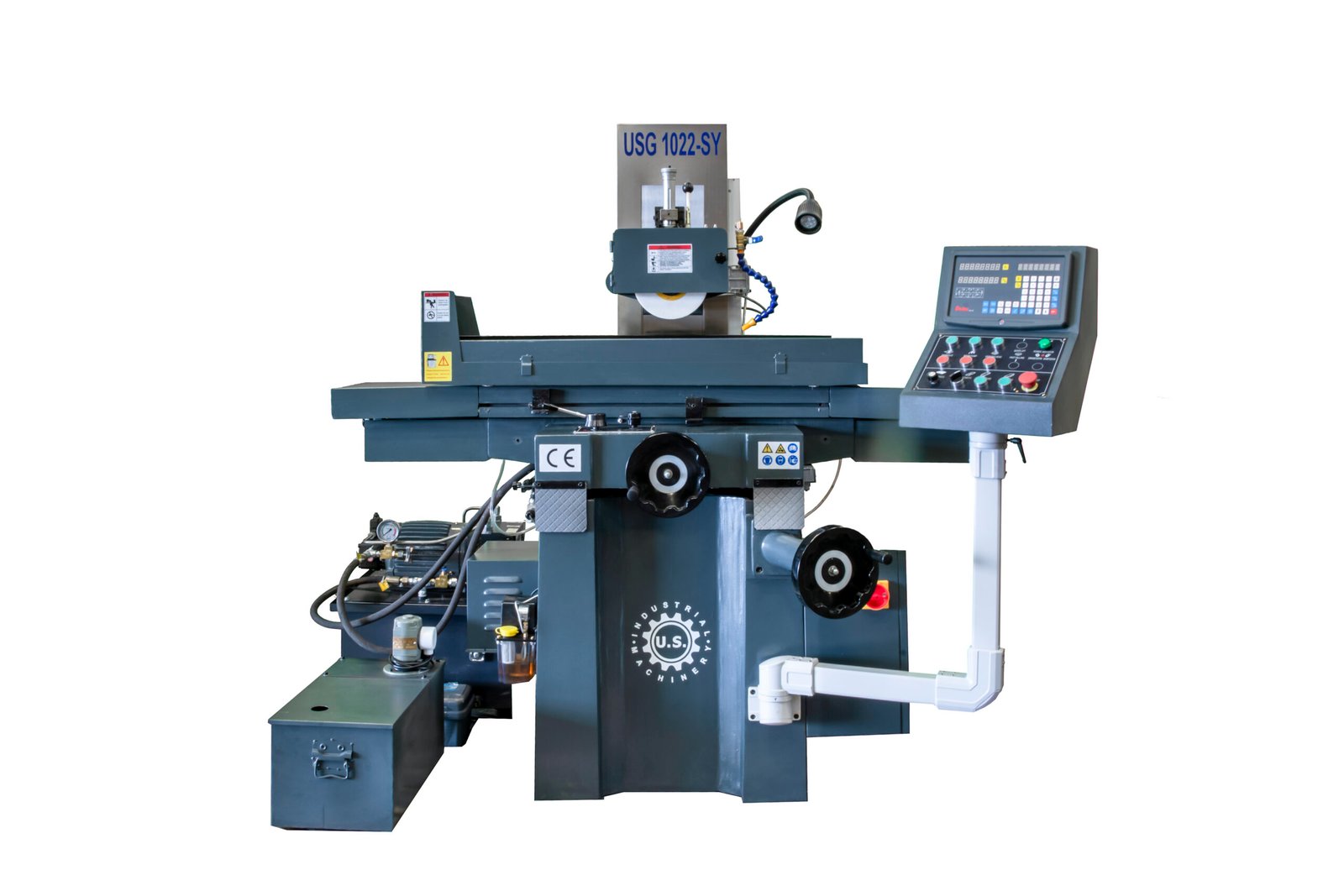

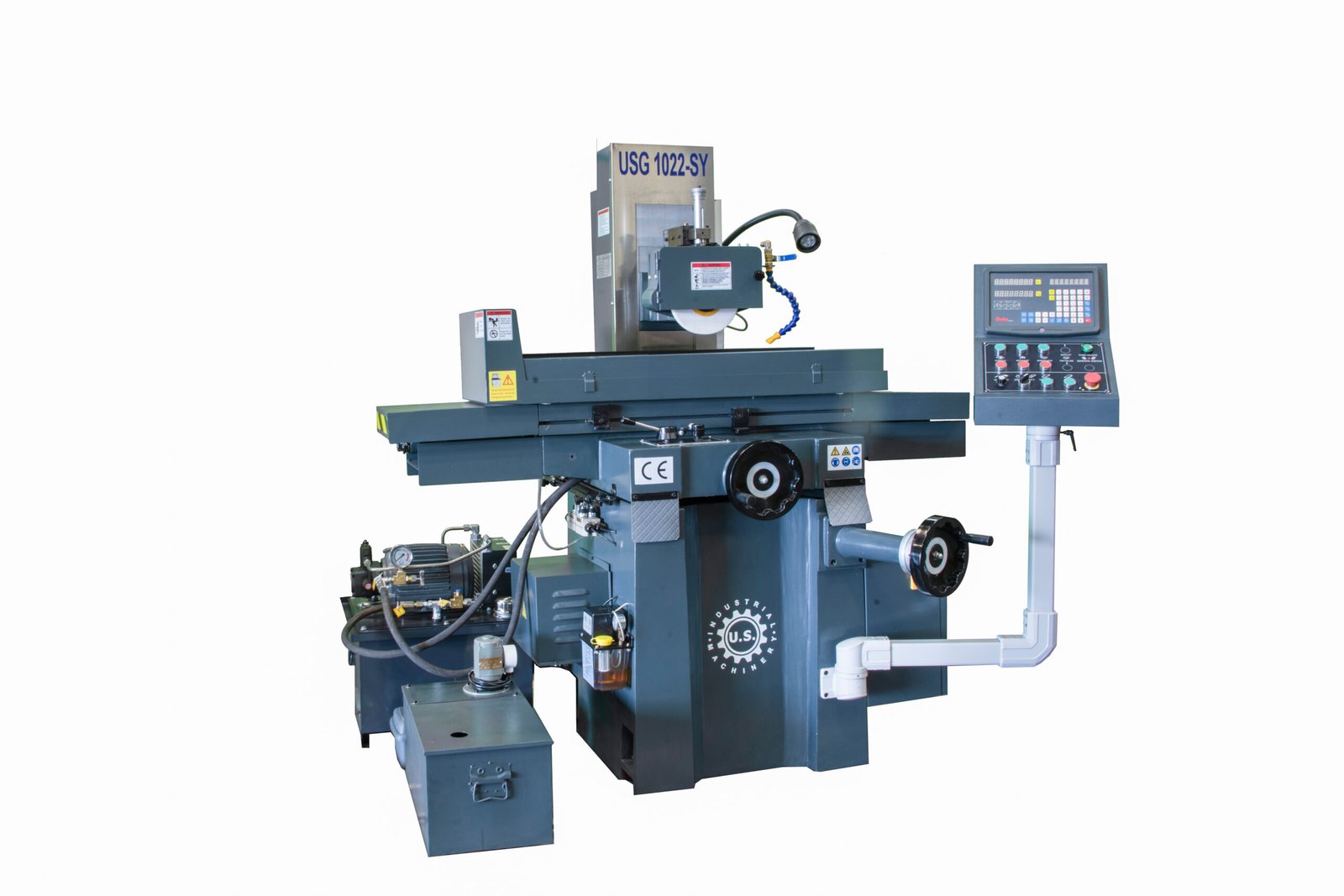

U.S. Industrial 2HP 220V Three Phase 22″ x 10.2″ Two Axis Automatic Toolroom Surface Grinder USG1022-SY

U.S. Industrial 2HP 220V Three Phase 22″ x 10.2″ Two Axis Automatic Toolroom Surface Grinder USG1022-SY is a U.S. Industrial Machinery product in the Grinding & Sanding collection.

Product Details

• Type of Operation: Hydraulic Reciprocation, Electric Crossfeed
• Table/Cross Travel Max: 22" x 10.2"
• Grinding Wheel Supplied: 8" x 3/4" -1.25" hole
• Spindle RPM: 3360
• Description
• U.S. Industrial Machinery has you covered with all of the machinery to perform artistic metalworking jobs right down to the finish. Their surface grinder inventory includes four models that offer varying levels of grinding but all provide the finish you need. U.S. Industrial’s company prides itself on the high level of customer service they provide each customer. This includes their ongoing support for you with your products, including their warranty, troubleshooting support, and traveling field technicians.
• At their Memphis, Tennessee facility U.S. Industrial completes the assembly, calibrate, test, and perform cosmetic upgrades of all in-coming machinery. They don’t let products leave their hands until they are fully confident that they surpass their high standards.
• This is a medium duty toolroom Surface Grinder with hydraulic reciprocation of table and electric motor power incremental setting crossfeed. Downfeed increment is manually set by operator. This is a TWO-AXIS Automatic Surface Grinder.
• Types of Surface Grinder Operation Each one of U.S. Industrial’s surface grinders includes a two-axis readout. Operation type varies by model number, but you can find a machine that offers all manual operation, electric reciprocating and electric cross, or hydraulic reciprocating and electric cross. Each one is capable of 220- or 440-volt 3-phase electric power.
• Each one of U.S. Industrial’s surface grinders includes a two-axis readout. Operation type varies by model number, but you can find a machine that offers all manual operation, electric reciprocating and electric cross, or hydraulic reciprocating and electric cross. Each one is capable of 220- or 440-volt 3-phase electric power.
• Standard Equipment
• Grinding wheel
• Balancing base and arbor
• Over wheel (parallel) dresser w/ diamond
• Manual one-shot lubrication
• Semi Fine Pole Permanent magnetic chuck: 9.8” x 19.7”
• Wheel flange
• Toolbox and tools
• Wet Coolant system
• Sino Two-axis digital readout
• Hydraulic reciprocation of table
• Electric motorized crossfeed
• Specifications
• Two-Axis Readout Included: Yes
• Slideway Type: Double V Type Rail
• Machine Lube System: Part of Hydraulic System
• Function of Table Reciprocation: Hydraulic Reciprocation Only
• Wheelhead Movement Up/Down: Handwheel-manual
• Wheelhead dial graduation: 0.0002”
• Perm mag chuck included: 9.8" x 19.7"
• Pole Spacing of Mag Chuck: 0.125”
• Cross Dial Graduation: 0.0005”
• Dust under wheel to chuck: 10"
• Wheel balancing arbor/base: Yes – included
• Over wheel diamond dress: Yes – included
• Worklight: Included
• Spindle HP: 2 HP
• Hydraulic Unit Motor: 2 HP – 21 gallons
• Coolant Pump – Tank Size: 40 watt – 9 gallons
• Voltage: 220V or 440V, 3 phase
• Full load amps @ 220 Volts: 20
• Parallelism & Flatness Accuracy: <0.0008”
• Max. Distance Spindle Center to Table: 17.7”
• Weight: 2,300 lbs.
• Dimension (L x W x H): 66.4” x 48” x 73”
• Options
• Extra general purpose factory grinding wheel
• Extra wheel flange

Specifications

• Manufacturer: U.S. Industrial Machinery
• SKU: USG1022-SY (220V)
• Shipping Method: Flatbed
• Weight: 3,400 lb
• Dimensions: 76 × 60 × 80 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
