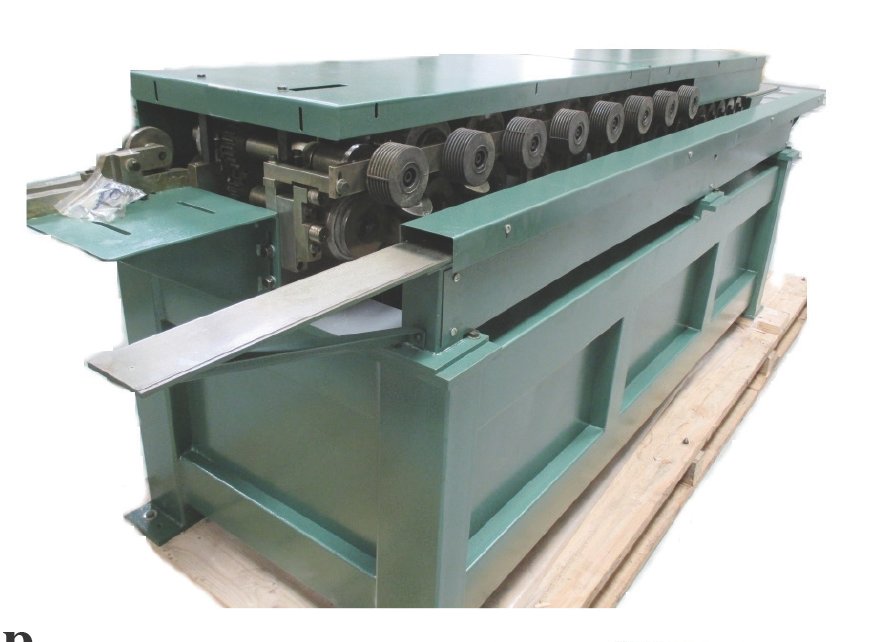

Tin Knocker 220V Three Phase 14-Station T-D-P Roll Former with Clip Rolls TK TDP

Tin Knocker 220V Three Phase 14-Station T-D-P Roll Former with Clip Rolls TK TDP is a Tin Knocker product in the Metal Forming & Shaping collection.

Product Details

• Capacity: T-D-P 18-24 ga
• Motor: 10HP 220V Three Phase
• Forming Speed: 50 FPM
• Produces either TDC or TDF flanges
• Description
• At last, an affordable, full service, high quality, transverse duct connector machine! This 14-station roll former comes standard with TDC or TDF Rolls, Slitter and Clip Rolls outboard. This T-D-P roll former will roll sheet metal into leak proof, sealable TDC or TDF flanges at speeds of up to 50 fpm, automatically! Start saving time and money by forming your own TDC or TDF flanges – with their snap on corners – and eliminate spot welding altogether.
• Buyer must specify which set of transverse duct connector rolls is wanted on the machine (TDC or TDF). Slitting and Clip Rolls come on all RPD roll formers.
• Specifications
• Capacity: T-D-P 18-24 ga. for T-D-P Uses approx. 1-7/8″ of material on T-D-P 50 feet per minute T-D-P Clip (min. length 20″) 22 ga. 2-1/8″ 2 1/8″
• Forming Sections: 14
• Shaft Diameter: 1.25″
• Passline: 38.625″
• Motor: 10HP / 220V / Three Phase / 60 Hz
• Dimensions: 38 x 136.75 x 46 in
• Weight: 3450 lbs

Specifications

• Manufacturer: Tin Knocker
• SKU: TkTDP
• Shipping Method: Flatbed
• Weight: 2,900 lb
• Dimensions: 38 × 137 × 46 in
