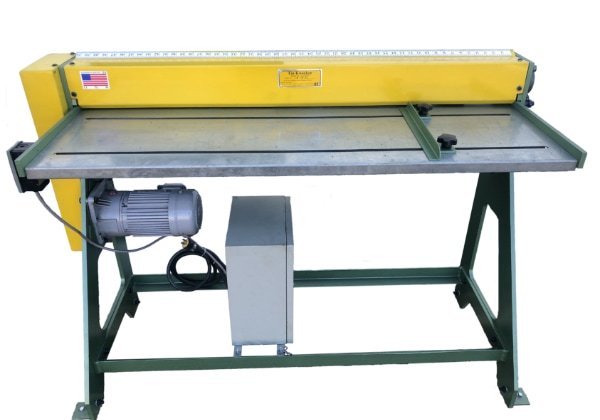

Tin Knocker 110V Single Phase TK Gang Slitter

Tin Knocker 110V Single Phase TK Gang Slitter is a Tin Knocker product in the Metal Forming & Shaping collection.

Product Details

• Max Cutting Width: 48 ½”
• Table Height: 35”
• Overall depth: 26”
• Shaft Diameter: 3”
• Description
• Cut multiple blanks of light gauge sheet metal in one pass! Great for roofing and architectural! Gang slit blanks from 16 to 30 gauge. Slit blanks at speeds up to 60 FPM
• Standard Features
• Life lubed bearings
• 3” cold rolled polish shafts
• 3 sets of reversible knives
• Heavy duty chain drive
• Stripper fingers to prevent twist
• Operating Speed: 60 FPM
• ¾ HP, 110V, 1 Phase Motor
• Tool steel blades with stripper rings
• (Non-scratch: pre-painted, copper, polished metals, etc.)
• Specifications
• Overall width: 58:
• Width between end frames: 52 ¼”
• Feed Speed: 60 FPM
• Weight: 525 lbs.
• Knife Dimensions: 5” OD x ¼”
• Motor HP: ¾ HP
• Electrics: 110V – 1ph
• Ship Dimensions: 67” x 37” x 48”

Specifications

• Manufacturer: Tin Knocker
• SKU: TkGangSlitter
• Shipping Method: LTL Freight
• Weight: 475 lb
• Dimensions: 56 × 26 × 20 in
• Warranty: 1 Year (Parts)
