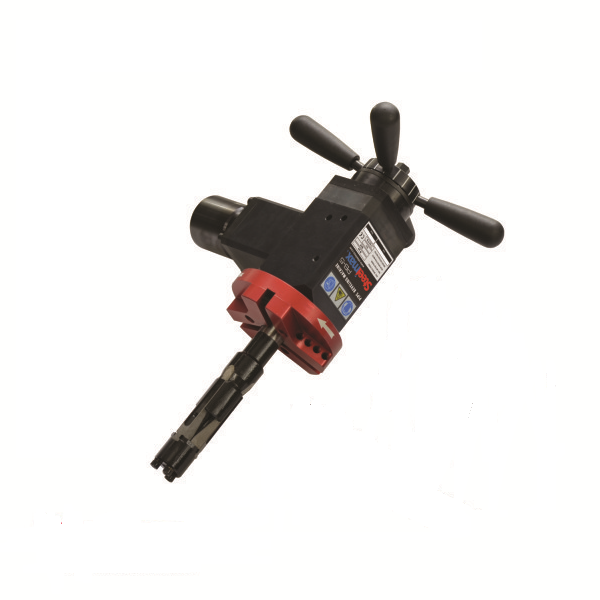

Steelmax PB5 240V Single Phase Electric 1100W Portable Pipe Beveling Machine SM-PB5-E

Steelmax PB5 240V Single Phase Electric 1100W Portable Pipe Beveling Machine SM-PB5-E is a Steelmax product in the Beveling Machines collection.

Product Details

• Motor Power: 1,100W
• Speed Range: 0-300 rpm
• Electrical requirements: 240V Single Phase
• Operating weight (w/motor): 24 lbs
• Description
• Eliminate laborious hand grinding, poor fit-up, weld defects and over welding with this in-line machining tool!

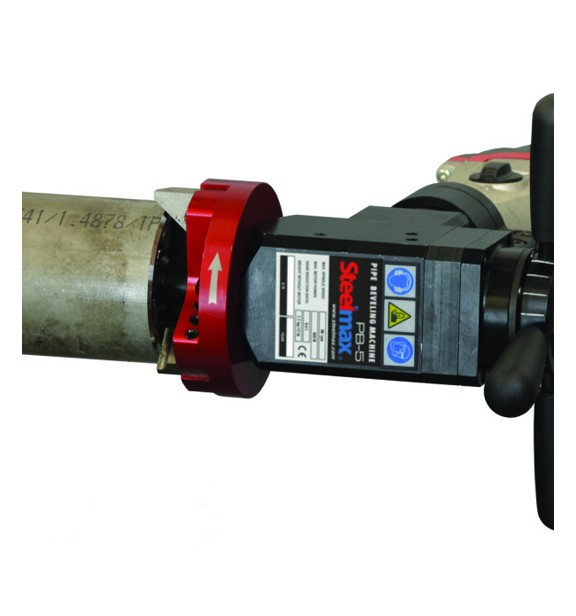

• Extremely productive when full penetration welding is required, the Steelmax PB5 will produce accurate weld preparation in minutes. Creating highly repeatable and consistent fit-up, this tool dramatically reduces cycle times and improves work flow. By utilizing a self-centering mandrel which mounts internally to the open end of the tube or pipe, the PB5 can be rapidly deployed from one pipe to another.
• Available with a pneumatic or electric motor, the PB5 can be mounted in pipe or tubing with a minimum inside diameter of 1.25”and can bevel outside diameters up to 4.5”. Designed with three tool holders, the PB5 can simultaneously mill the OD Bevel, Root Face, and ID counterbore to create consistent wall thickness around the joint and ensure complete weld penetration.
• Features
• Simultaneously bevel, face and ID counterbore pipe or tubing
• Available with pneumatic or electric motor options
• Variety of tool bits available for creating various bevel angles for V and J grove preparation
• Self-Centering ID mounted mandrel
• Standard Set Includes
• Beveling head unit with either electric or pneumatic motor
• Metal shipping box
• Standard self-centering expandable mandrel for pipe ID Ø 1.25”-4.25”
• 118mm spindle disc
• Jaw blocks (1, 2, 3, 4, 5, 6) – 3 sets
• Set of tools
• Coolant container
• Operator’s manual
• Specifications
• Electrical requirements: 240V / Single Phase / 60 Hz
• Standard Mandrel Min ID: 1.26” Max OD: 4.49”
• Min ID: 1.26”
• Max OD: 4.49”
• Small Mandrel Min ID: 1” Max ID: 1.25”
• Min ID: 1”
• Max ID: 1.25”
• Large Spindle Disc Min OD: 4.5” Max OD: 5.5”
• Min OD: 4.5”
• Max OD: 5.5”
• Pipe Beveling Capacity
• Nominal Pipe Diameter: 1” Max Pipe Size: Sch 40S/40STD
• Max Pipe Size: Sch 40S/40STD
• Nominal Pipe Diameter: 1¼” Max Pipe Size: Sch 80/80XS
• Max Pipe Size: Sch 80/80XS
• Nominal Pipe Diameter: 1½” Max Pipe Size: Sch 160
• Max Pipe Size: Sch 160
• Nominal Pipe Diameter: 2” Max Pipe Size: XXS
• Max Pipe Size: XXS
• Nominal Pipe Diameter: 2½” Max Pipe Size: Sch 160
• Nominal Pipe Diameter: 3” Max Pipe Size: Sch 160
• Nominal Pipe Diameter: 3½” Max Pipe Size: Sch 80/80XS
• Nominal Pipe Diameter: 4” Max Pipe Size: Sch 120
• Max Pipe Size: Sch 120
• Nominal Pipe Diameter: 4½” Max Pipe Size: Sch 40S/40/STD (requires optional spindle disk set)
• Max Pipe Size: Sch 40S/40/STD (requires optional spindle disk set)
• Nominal Pipe Diameter: 5” Max Pipe Size: Sch 40S/40/STD (requires optional spindle disk set)
• Max Allowable Pipe/Tube Wall Thickness
• Pipe/Tube Size Range: 1” to 1.25” ID Max Wall Thickness: 0.5”
• Max Wall Thickness: 0.5”
• Pipe/Tube Size Range: 1.25” to 4.5” OD Max Wall Thickness: 0.5”
• Pipe/Tube Size Range: 4.5” to 5” OD (requires optional spindle disk set) Max Wall Thickness: 0.39”
• Max Wall Thickness: 0.39”
• Pipe/Tube Size Range: 5” to 5.2” OD (requires optional spindle disk set) Max Wall Thickness: 0.31”
• Max Wall Thickness: 0.31”
• Pipe/Tube Size Range: 5.2” to 5.5” OD (requires optional spindle disk set) Max Wall Thickness: 0.24”
• Max Wall Thickness: 0.24”
• Optional Accessories
• Extension set to accommodate pipe or tubing up to 5½” OD
• Boiler repair kit for working on water walls and in restricted spaces

Specifications

• Manufacturer: Steelmax
• SKU: SM-PB5-E (240V)
• UPC: 848118004509
• Shipping Method: Ground
• Weight: 60 lb
• Dimensions: 26 × 23 × 12 in
• Country of Origin: Poland
