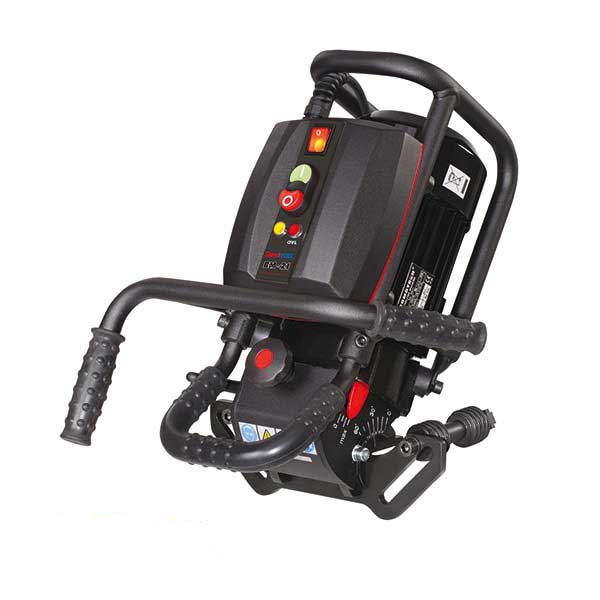

Steelmax BM21 230V Single Phase Portable 21mm Beveling Machine SM-BM21-230

Steelmax BM21 230V Single Phase Portable 21mm Beveling Machine SM-BM21-230 is a Steelmax product in the Beveling Machines collection.

Product Details

• Power: 230V / Single Phase / 50 Hz / 1.5 HP / 1.1 kW
• Spindle Speed: 2820 rpm
• Beveling Angle: 0-60° with continuous angle adjustment
• Max Bevel Width: 13/16”
• Description
• Reduce your costs and lay the foundation for high-quality welds with the Steelmax BM21. Inaccurate bevels and poor weld preparation are often the root cause of weld defects and excessive welding costs. The BM21 utilizes a high speed rotary milling head with ten carbide inserts to produce precise bevel angles from 0 to 60 degrees that dramatically improve fit up and all subsequent welding operations.
• Unlike flame or plasma cut weld preparation, the BM21 produces no heat affected zone or distortion of the work piece. These portable tools can be carried anywhere and eliminate time consuming and costly material handling associated with moving plates around the shop to stationary burning and milling machines.
• The BM21 features an ergonomic design that includes vibration dampening technology to protect the operator and the machine during heavy continuous operation. Automatic thermal overload protection circuitry protects the motor from premature failure, providing a reliable tool that can withstand the toughest jobs.
• Features
• Single milling head using 10 indexable carbide inserts produces weld-ready bevels quickly and efficiently with low operator effort
• Fast and easy exchange of inserts with no need for special adjustment
• Working range from 0 to 60 degrees with continuous angle adjustment
• Simple bevel angle and bevel width setup
• Advanced vibration isolation protects both the operator and the machine
• Universal guide plate requires no additional accessories for beveling both plate and pipe
• Specifications
• Tooling: Integrated milling head with 10 square TCT inserts
• Max Bevel Width: 13/16” (21mm)
• Weight: 43 lbs

Specifications

• Manufacturer: Steelmax
• SKU: SM-BM21-230
• UPC: 848118001669
• Shipping Method: Ground
• Weight: 75 lb
• Dimensions: 19 × 15 × 15 in
• Country of Origin: Poland
