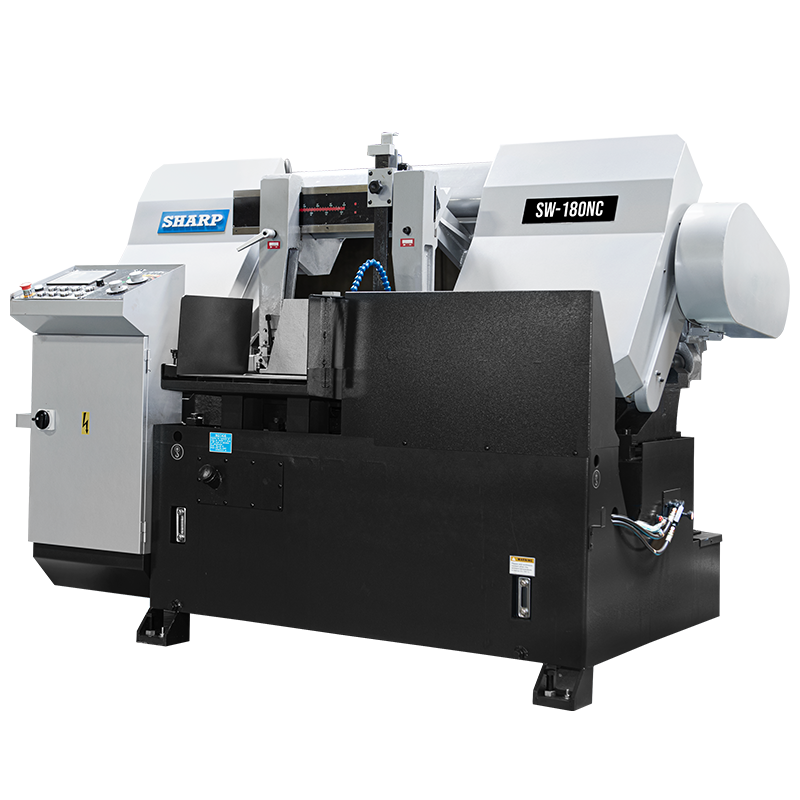

Sharp Industries 7.5 HP NC Control Horizontal Band Saw with 18.5” Cutting Capacity SW-180NC

Sharp Industries 7.5 HP NC Control Horizontal Band Saw with 18.5” Cutting Capacity SW-180NC is a Sharp Industries product in the Band Saws collection.

Product Details

• Cutting Capacity: Round: 18.5”, Square: 18.5”
• Feed Mode: Hydraulic, NC Automatic
• Speed: 66-330 fpm
• Motor: 7.5 HP
• Description
• This NC operated hydraulic heavy duty automatic band saw utilize the Smart NC-100 system to store most parameters and functions and programmed to perform most cutting jobs.
• Standard Features
• 18” round, 18.1” square, 18.1” x 18.1” rectangular cutting capacity, 7.5 HP
• NC operating panel with touch screen
• Hydraulic saw frame with heavy duty ball joint for powerful down feed
• Back tilt saw head design to reduce saw twisting between wheel and blade guide
• Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
• Automatic hydraulic blade tensioning provide proper tensioning during and after machining
• Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
• Gearbox blade drive for heavy duty cutting
• "Programmable touch screen control of input quantity, material length, feed vise position, auto kerf loss compensation, display blade speed, feed pressure, work height, feed rate selection, auto shut down"
• 10", 12", 12.6", 16.5", 18.5", 31.5" square, round cutting capacity
• Programmable 100 jobs
• Error feedback function
• Other features as automatic band saws
• Blade "clip" change device
• Bi-metal saw blade
• Additional fence to support bundled cut off stock
• Built-in work light
• Coolant system
• Tool box and tools
• Specifications
• Round: 18.5”
• Square: 18.5”
• Rectangle: 18.5” x 18.5”
• Size: 1 1/2” x .050” x 198”
• Tension: Hydraulic
• Guides: Interchangeable Tungsten Carbide
• Cleaning: Steel Wire Brush with Flexible Drive Shaft Driven by Main Motor
• Saw Blade Motor Output: 7.55 HP
• Hydraulic Motor Output: 2 HP
• Coolant Motor Output: 0.25 HP
• Hydraulic Oil Tank Capacity: 22.3 gal.
• Collant Tank Capacity: 31.7 gal.
• Feed Length: Single Stoke: 0 to 19.68” Multi Stroke: 0 to 324.8”
• Single Stoke: 0 to 19.68”
• Multi Stroke: 0 to 324.8”
• Vise Control: Hydraulic with Full Stroke Cylinder
• Net Weight: 5,071 lbs
• Gross Weight: 5,51170 lbs
• Floor Space (L x W x H): 7.61’ x 8.12’ x 8.20’
• Available Options & Accessories
• Hydraulic chip conveyor
• Vise pressure regulator
• 3 M powered roller table
• Double retracting vise jaws
• Hydraulic tool clamp for bundle cut
• Laser beam light

Specifications

• Manufacturer: Sharp Industries
• SKU: SW-180NC
• Shipping Method: Flatbed
• Weight: 6,950 lb
• Dimensions: 117 × 92 × 75 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
