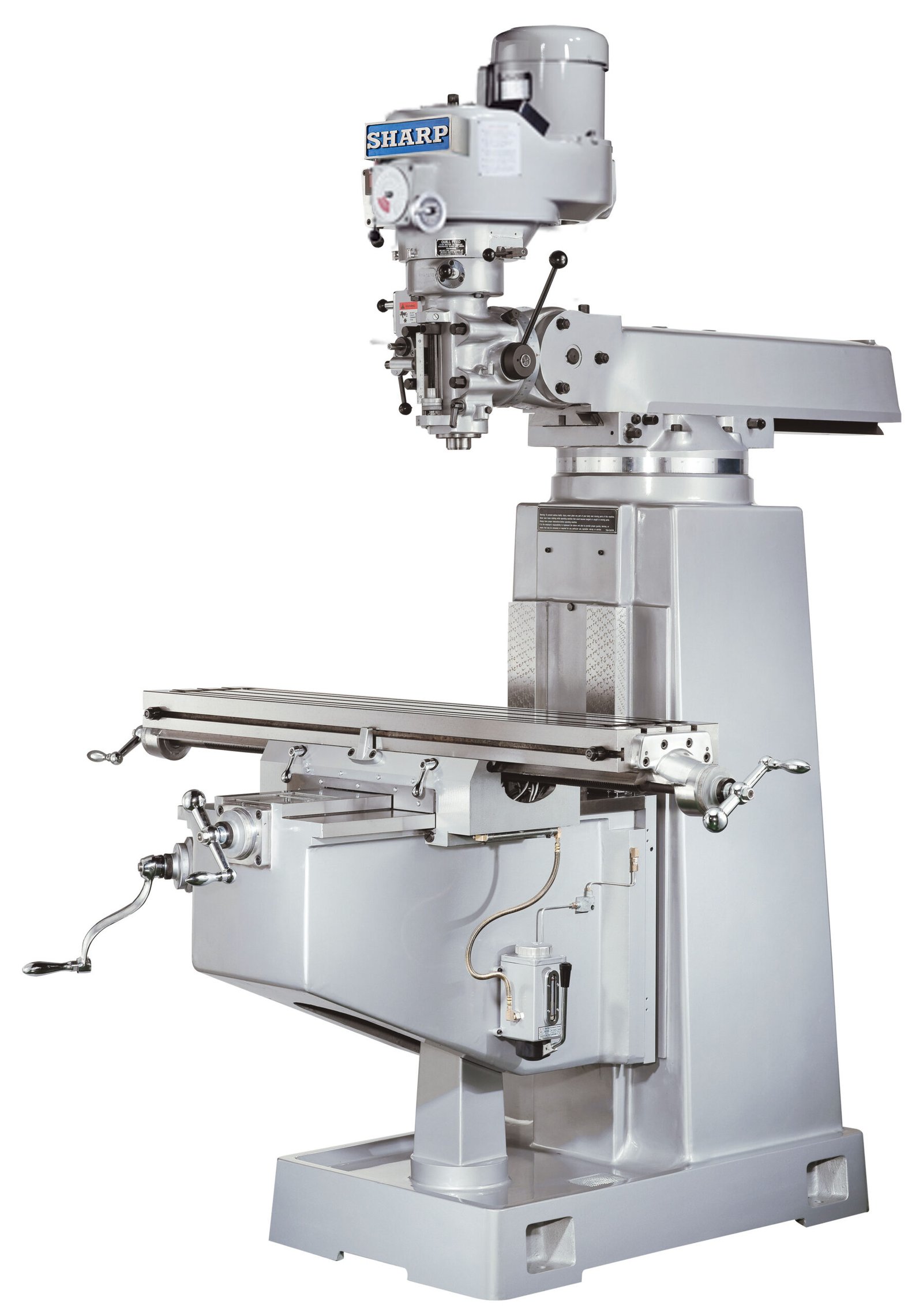

Sharp Industries 440V 54” Variable Speed Large Vertical Knee Mill TMV

Sharp Industries 440V 54” Variable Speed Large Vertical Knee Mill TMV is a Sharp Industries product in the Milling Machines collection.

Product Details

• Table Size: 10” x 54”
• X, Y, Z Axis Travel: 39” x 16.3” x 5”
• Spindle Nose Taper: R-8
• Spindle Motor: 440V, 3HP
• Description
• The TMV vertical knee milling machine is constructed with box ways instead of dove tail ways. The model has many unique features compared with most of the similar machines on the market.
• The quill is CNC ground to a mirror finish and chromed to fit the housing resulting in close to jig bore accuracy for quill downfeed.
• Tapered gibs installed on the ways allows easy adjustment for long term usage.
• The feed handles are designed to spin free which eliminates the friction between the operator’s hand and the feed handle.
• The bottom of the saddle, instead of the top of the knee ways, which rides on the knee, is hand scraped for better oil retention and prevent dirt and chips from embedded in the knee ways.
• Standard Features
• 10 x 54 ins table, 16.3 x 39 ins travel
• R-8 spindle, 3 hp, variable speed (60-4,500 rpm)
• Spindle runout of no more than 0.0002 ins TIR
• Hardened and ground box ways, column, base
• Head tilt side to side, up and down
• One shot lubrication with back flow valve
• Tapered gibs for adjustment
• Dual cooling fans
• Meehanite casting
• Self-lube motor shaft
• Super precision spindle bearings
• Turcite coated saddle ways
• Backlash eliminator tool
• Front & rear way covers
• Tool kit
• Specifications
• T-slots (No., Size, Pitch): 3, 5/8”, 2.5”
• Table Travel: X Longitudinal: 39”
• Table travel: Y Cross: 16.3”
• Quill travel: Z Vertical: 5”
• Ram Travel: 18.5”
• Knee travel: Vertical: 15.3”
• Spindle Center to Column: 9.8” – 28.3”
• Spindle Nose to Tabletop: 5.375” – 16.9”
• Spindle Variable Speed Range: 60 – 4500 rpm
• Quill Feed (Inch/Rev) (3 speeds): .0015”, .003”, .006”
• Quill Diameter: 3.375”
• Head Tilt Angle (L/R): 90°
• Head Tilt Angle (Up/Down): 45°
• Floor Area (W x D x H): 9.83’ x 6.25’ x 7.64’
• Approximate Weight: 3,000 lbs.
• Power Consumption (440V): 3 KVA/4 amp
• Available Options & Accessories
• TMV-K Package (TMV Mill, Digital Variable Speed, Power Table Feed, & 3 Axes Digital Readout, Power Drawbar)
• Auto Lube Pump with 2 Adjustments
• “Sharp” Power Table Feed with Safety Handle
• “Sharp” Power Cross Feed with Safety Handle
• “Sharp” Power Knee Feed with Safety Handle
• 6 in. “Kurt” Vise with Swivel Base
• Right Angle Milling Attachment with Arbor
• Drill Chuck & Drill Arbor
• 6 in. Riser Block
• Coolant System with Chip Pan (pump included
• “Maxi Torque Rite” Power Draw Bar
• Clamping Kit (52 pcs/Steel Rack)
• Halogen Work light
• CE mark
• 380V and 575V transformer
• UL components upgrade with electrical box
• UL compliance certificate under State of California
• Digital Readout System

Specifications

• Manufacturer: Sharp Industries
• SKU: TMV (440V)
• Shipping Method: LTL Freight
• Weight: 3,060 lb
• Dimensions: 75 × 70 × 88 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
