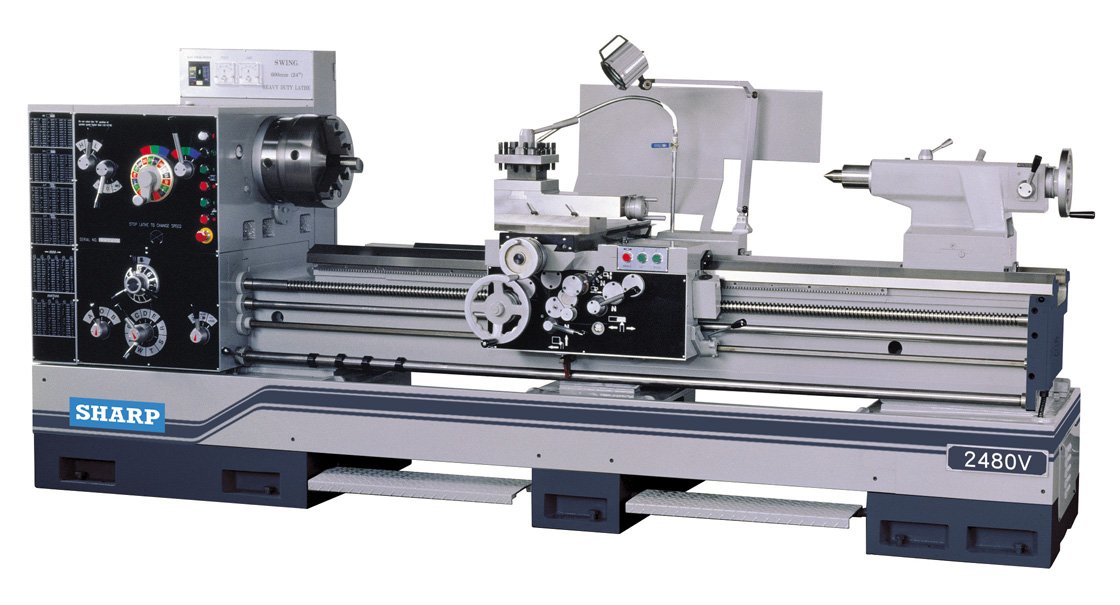

Sharp Industries 440V 30” x 120” V Series Heavy Duty Precision Lathes 30120V

Sharp Industries 440V 30” x 120” V Series Heavy Duty Precision Lathes 30120V is a Sharp Industries product in the Lathes collection.

Product Details

• Swing Over Bed: 30”
• Distance Between Centers: 120”
• Spindle Speed: 18 Speeds (10-1,200 RPM)
• Motor: 440V , 15 HP
• Description
• The model heavy duty lathe has 4.125” spindle bore, D1-11 Camlock spindle head,19” wide bed and wide range of threading capacity. Coarse thread reaches 1/4” TPI.
• Standard Features
• D1-11 camlock spindle
• Clutch type geared head
• 4.125″ spindle bore
• 15 hp motor
• 18 speeds (10-1,200 rpm)
• Wide thread range (1/4 tpi – 84 tpi)
• 19″ wide bed
• Multiple leads thread indicator
• Steady rest with roller jaws (8-3/4" – 13" capacity)
• Face plate 20"
• Coolant system
• Longitudinal carriage stop
• Halogen work light
• Tailstock with 2 speeds on quill
• Specifications
• Swing Over Cross Slide: 19.75”
• Swing Over Gap: 39”
• Spindle Speed: 10 – 1,200 RPM
• No. of Spindle Speeds: 18
• Spindle Nose: D1-11 camlock
• Spindle Bore: 4.125”
• Threads, Number: 0.25-84”, 60
• Modular Threads, Number: 0.05-28 MP, 55 threads
• Diametral Pitch Threads, Number: 1-240 DP, 55 threads
• Longitudinal Feeds: 0.0015-0.2”/Rev
• Cross Feeds: 0.0006-0.16”/Rev
• Leadscrew Pitch, Diameter: 1.5” / 2 tpi
• Cross Slide Travel: 14.75”
• Compound Travel: 9”
• Compound Width: 30.25”
• Bed Width: 19”
• Quill Diameter: 3.12”
• Quill Travel: 7.5”
• Quill Center Taper: MT #5
• Spindle Motor: 15 HP
• Voltage: 440V
• Phase: 3 Ph
• Power Consumption ( 440V ): 15 KVA / 20 amps
• Available Options & Accessories
• Taper attachment
• Roller jaw set (3 pcs) for steady rest
• 3-jaw chuck 12″
• 4-jaw chuck 16”
• Follow rest
• Quick change tool holder
• Live center – (dual bearing) MT #5
• Live center – MT #5
• Micrometer carriage stop
• Steady rest, 8-3/4′ – 13″, 11″ – 17″ ,14″ – 21″
• 20 HP motor in lieu of 15 HP motor
• Rear splash guard (80″ / 120″ / 160″ length) • CSA or UL electrical parts and wiring
• Chuck guard with limit switch
• Tool post guard
• Spindle rear end cover
• Lead screw cover

Specifications

• Manufacturer: Sharp Industries
• SKU: 30120V (440V)
• Shipping Method: Flatbed
• Weight: 10,120 lb
• Dimensions: 189 × 56 × 76 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
