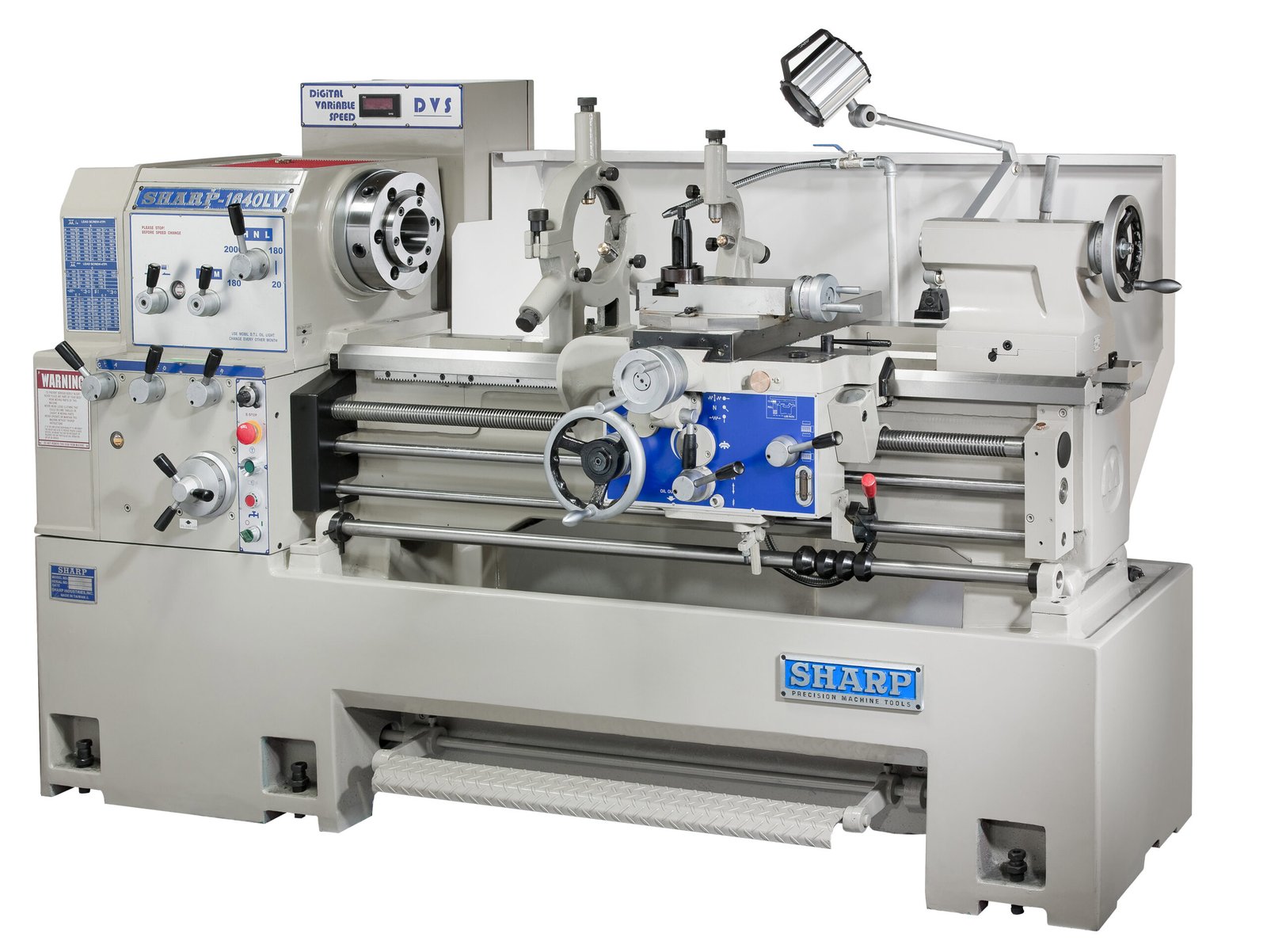

Sharp Industries 440V 16” x 60” Swing Precision Lathe 1660L

Sharp Industries 440V 16” x 60” Swing Precision Lathe 1660L is a Sharp Industries product in the Lathes collection.

Product Details

• Swing Over Bed: 16”
• Distance Between Centers: 60”
• Spindle Speed: 12-speed geared head 40-2,000 rpm
• Motor: 440V, 7.5 HP
• Description
• This model is designed with 3.18” spindle hole which is unique for 16” swing lathes. Due to its one-piece casting machine base, it can support heavier cutting on large diameter materials. The large through hole allows most 3” diameter oil pipes to be machined.
• Standard Features
• 16″x 40″
• 12-speed geared head (40-2,000 rpm)
• D1-8 camlock spindle
• 3.18" spindle bore
• 7.5 hp motor
• Direct selection for inch/metric threads
• One piece cast meehanite bed
• 3 jaw 10" chuck (Bison)
• Face plate (16")
• Steady rest w/ bronze tip (1/2" to 6")
• Follow rest
• Coolant system
• Full length splash guard
• American toolpost
• Halogen work light
• Longitudinal carriage stops
• Tailstock
• Tool kit
• Specifications
• Swing Over Cross Slide: 8.75”
• Swing Over Gap: 25.5”
• Gap Width (In Front of Face Plate): 11.81”
• Spindle Speed: 40 – 2000 RPM
• Spindle Nose: D1-8 camlock
• Spindle Bore: 3.18”
• Threads, Number: 4-56 TPI, 36
• Modular Threads, Number: 0.019 – 0.275”, 17
• Diametral Pitch Threads, Number: 0.157 – 2.20”, 36
• Longitudinal Feeds: 0.002 – 0.032”/Rev
• Cross Feeds: 0.0001 – 0.0094”/Rev
• Leadscrew Pitch, Diameter: 1.37”, 35mm
• Cross Slide Travel: 9.84”
• Compound Travel: 4.92”
• Compound Width: 4.5”
• Bed Length: 84.44”
• Bed Width: 11.8”
• Quill Diameter: 2.28”
• Quill Travel: 5.9”
• Quill Center Taper: MT #4
• Spindle Motor: 7.5 HP
• Voltage: 440V
• Phase: 3 Ph
• Power Consumption (440V): 8 KVA / 12.5 amps
• Approximate Weight: 3,461.26 lbs
• Dimensions: 7.05’ x 2.66’ x 3.9’
• Available Options & Accessories
• 3-jaw 12″ chuck
• 4-jaw 12″ chuck
• Chuck guard
• Tool guard (at front of compound slide with limit switch)
• Lead screw cover (full length, accordion style)
• Safety cover at end of spindle
• UL or CSA electrical components, UL spindle motor, CSA pump motor

Specifications

• Manufacturer: Sharp Industries
• SKU: 1660L (440V)
• Shipping Method: LTL Freight
• Weight: 4,070 lb
• Dimensions: 42 × 110 × 66 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
