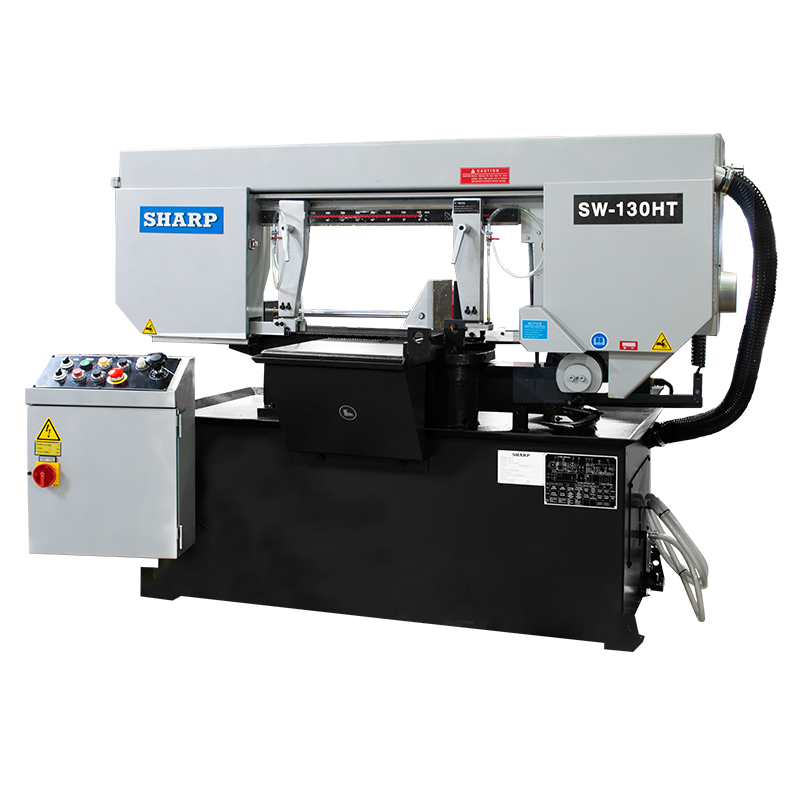

Sharp Industries 3 HP Horizontal Semi-Automatic Miter Band Saw SW-130HT

Sharp Industries 3 HP Horizontal Semi-Automatic Miter Band Saw SW-130HT is a Sharp Industries product in the Band Saws collection.

Product Details

• Cutting Capacity at 90°: Round: 13”, Square: 11”
• 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device
• Full stroke hydraulic vise clamp
• Motor: 3 HP
• Description
• This is a semi-automatic miter saw with saw frame that can swivel 0° to 60° for cutting work pieces. Angle change is facilitated by pivot system for accurate angle cuts. It is equipped with full stroke hydraulic vise clamping and easy to operate control panel.
• Standard Features
• 13” round, 11” x 11” square, 10.6” x 18” rectangular cutting capacity (90°)
• 11.4” round, 10.5” x 10.5” square, 8.7” x 8.7” rectangular cutting capacity (45°)
• 8.7” round, 8.7” x 8.7” square, 8.7” x 8.8” rectangular cutting capacity (30°)
• 3 HP motor, wt.1,800 lbs
• Coolant system
• Auto saw arm return to preset height at end of cut to facilitate next cut.
• Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
• Synchronized Blade brush to remove chips from blade gullet
• Adjuster stock stop
• Manual blade tension adjustment
• Swivel turn table
• Built in material stop
• Bi-metal saw blade
• Tools leveling pads and additional wire brush
• Specifications
• Round: 90°: 13” 45°: 11.4” 30°: 8.7”
• 90°: 13”
• 45°: 11.4”
• 30°: 8.7”
• Square: 90°: 11” 45°: 10.5” 30°: 8.7”
• 90°: 11”
• 45°: 10.5”
• Rectangle (H x W): 90°: 10.6” x 18” or 19.6” x 5.5” 45°: 8.7” x 8.7” 30°: 8.7” x 8.8”
• 90°: 10.6” x 18” or 19.6” x 5.5”
• 45°: 8.7” x 8.7”
• 30°: 8.7” x 8.8”
• Speed: 98 ~ 328 fpm
• Size: 1” x .035” x 163”
• Tension: Manual
• Saw Blade Motor Output: 3 HP
• Hydraulic Motor Output: 1/2 HP
• Coolant Motor Output: 1/8 HP
• Vise Control: Hydraulic
• Table Height: 32.3”
• Net Weight: 1,408 lbs
• Gross Weight: 1,848 lbs
• Floor Space (L x W x H): 87.44” x 43.38” x 57.8”
• Available Options & Accessories
• Infinite variable speed device
• 2M roller table
• 1M roller table

Specifications

• Manufacturer: Sharp Industries
• SKU: SW-130HT
• Shipping Method: LTL Freight
• Weight: 2,500 lb
• Dimensions: 89 × 48 × 70 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
