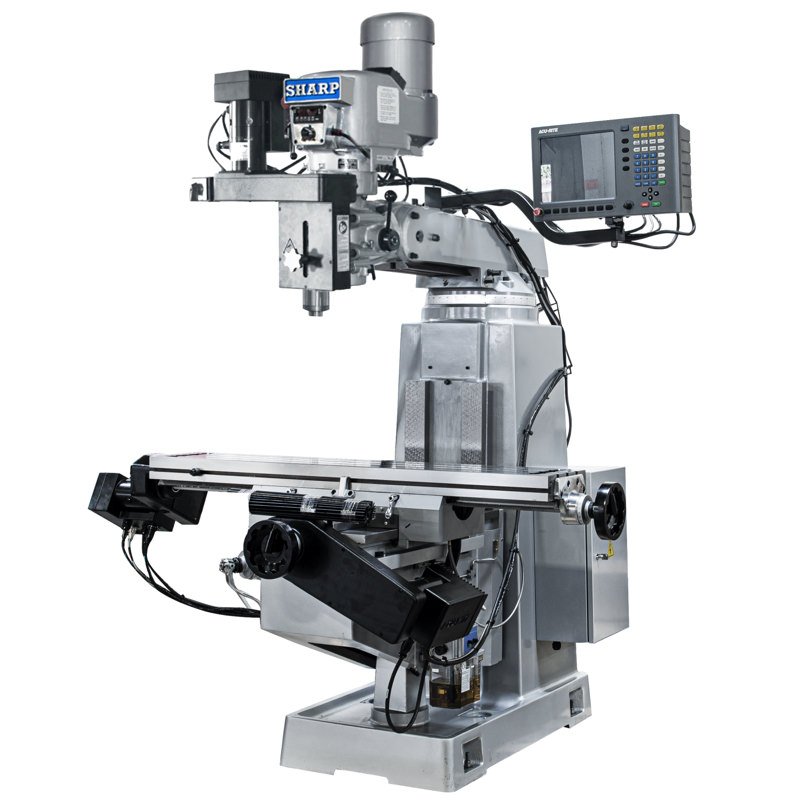

Sharp Industries 220V 50” Digital Variable Speed 3 Axes CNC Vertical Knee Mill TMV/DVS/MP-3 G2

Sharp Industries 220V 50” Digital Variable Speed 3 Axes CNC Vertical Knee Mill TMV/DVS/MP-3 G2 is a Sharp Industries product in the Milling Machines collection.

Product Details

• Table Size: 10” x 50”
• X, Y, Z Axis Travel: 31”, 15.5”, 5”
• Spindle: 60 – 4500 rpm Digital Variable Speed
• Motor: 220V, 3 HP
• Description
• This is a simple, easy to use 3 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle, and quill. The Millpwr G2 CNC has G code and conversational type programming. The CNC system is built on the top quality SHARP vertical mills frame.
• Standard Features
• 10 x 54” table, 15.5 x 31x 5” travel, Digital Vari Speed 3 HP, R-8 spindle
• AcuRite Millpwr G2 CNC 3 axes control (Longitudinal, Cross)
• G code and conversational type programming
• 3 axes precision ball screws
• Safety handwheels
• Auto lube system
• 3 axes Digital Readout System (table, saddle, quill)
• Servo drive system (3 axes) (table, saddle,quill)
• Dual cooling fans
• Hardened and ground box ways
• Turcite coated saddle ways
• Meehanite castings
• Roller bearing support bottom of motor shaft
• Abec-7 super precision angular contact bearings
• Complete Acu-rite Millpwr G2 CNC system
• Front and rear way covers
• Specifications
• T-Slots (No., Size, Pitch): 3”, 5/8”, 2.5”
• Table Travel: X Longitudinal: 31”
• Table Travel: Y Cross: 15.5”
• Quill Travel: Z Vertical: 5”
• Ram Travel: 18.5”
• Knee Travel: Vertical: 15.3”
• Spindle Center to Column: 9.8” – 28.3”
• Spindle Nose to Table Top: 1.6” – 16.9”
• Spindle Nose Taper: R-8
• Spindle Variable Speed Range: 60 – 4500 rpm Digital Variable Speed
• Spindle Motor: 220V, 3 HP
• Quill Feed (Inch/Rev)(3 Speed): .0015”, .003”, .006”
• Head Tilt Angle (L/R): 90°
• Head Tilt Angle (Up/Down): 45°
• Floor Area: 7.08’ x 6.66’ x 7.5’
• Approximate Weight: 3,500 lbs
• Power Consumption (220V): 3 KVA / 25 amps
• Power Consumption (440V): 3 KVA/ 12.5 amps
• Available Options & Accessories
• 440V available with the purchase of an additional transformer
• NT#30 SPINDLE IN LIEU OF NT#40
• Acu-Rite electrical edge finder
• 6” “Kurt” Vise with Swivel Base
• Drill chuck
• Sharp Power Kneel
• Coolant System with Chip Pan At Base
• Power Draw Bar
• R-8 Collet (Set of 11) – 1/8” – 3/4” by 1/16”
• Clamping Kit (52 pcs/steel rack)
• Halogen Work light
• Riser block 6
• 4th axes Digital Readout System (on knee

Specifications

• Manufacturer: Sharp Industries
• SKU: TMV/DVS/MP-3 G2 (220V)
• Shipping Method: LTL Freight
• Weight: 3,600 lb
• Dimensions: 85 × 80 × 90 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
