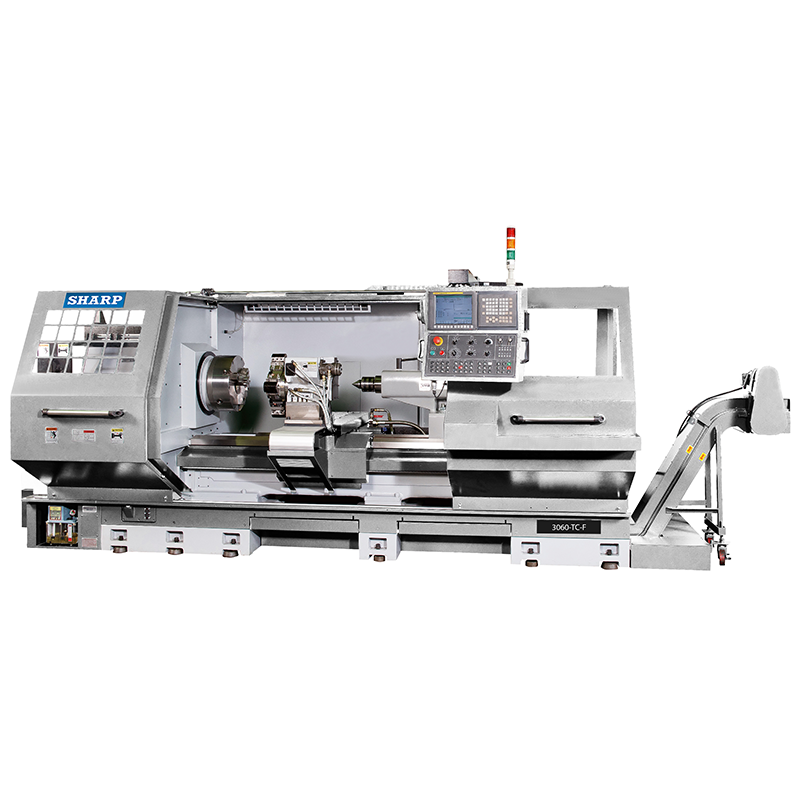

Sharp Industries 220V 30” x 78” TC-F Series CNC Precision Flat Bed Lathe 3080TC-F

Sharp Industries 220V 30” x 78” TC-F Series CNC Precision Flat Bed Lathe 3080TC-F is a Sharp Industries product in the Lathes collection.

Product Details

• Swing Over Bed: 29.92”
• Distance Between Centers: 78.75”
• Spindle Speed: 10-1,000 rpm
• Motor: 220V, 20 HP
• Description
• This is a user-friendly CNC lathe with full CNC functions and manual operation functions. It has programmable spindle speed, and 4- way tool post positioning. The Electronic handwheel (MPG) can be used for manual operation.
• The Fanuc OiTF all digital control and drive package provides exceptional value and reliability. The control features a clear 10.4” LCD screen that pivots out of easy operator viewing. It can catalog 400 part-program numbers and features an internal 2 GB solid state Data Server with 512 K RAM memory reserved for part programs. It features an embedded high speed Ethernet capability and AICC II and includes DB-25, RS-232 serial interface, RJ-45 Ethernet interface USB, and PC MCIA CF memory card connections for program transfer. Manual Guide-i conversational programming provides fast & efficient intuitive menu driven shop floor programming and includes a Thread Repair Cycle. An MPG handwheel is also provided.
• Standard Features
• FANUC Oi-TF CNC , 10.4” LCD screen
• 30” swing, 79” between centers (3080 Oi-TF)
• A2-11 , 6.7” spindle bore,
• 20 HP motor
• 2 steps gear speed change (10-1,000 rpm)
• programmable spindle speed
• Electronic Handwheel (MPG)
• 8 positions hydraulic turret ( 4 internal, 4 external)
• Auto lube system
• Flat belt type chip conveyor
• Full enclosure splash guard
• 16” 3 jaw chuck
• Air assist manual tailstock
• Stead rest (3”-8”)
• High pressure coolant system
• Rear chuck guard
• Electrical box to suit CNC Turning Control
• Incandescent Work Lamp
• Electronic handwheel (MPG) X & Y Axis
• Specifications
• Swing Over Cross Slide: 19”
• Turning diameter (in front of cross slide with 8- station turret turning tool): 22”
• Width of Bed: 18”
• Length of Bed: 137.75”
• Center Height: 15”
• Bed Casting Height: 15.75”
• Bed Way: One Flat and V
• Bed Way of Cross Slide: Dovetail Slide Way
• Spindle Bore: 6.7”
• Spindle Nose: A2-11
• Range of Spindle Speed: 10-1,000 rpm
• No. of Spindle Spped: 2 Steps/ Auto Selected Gear Ranges
• X-axis Cross Slide Travel: 19.68”
• Z-axis Travel Longitudinal Travel: 78.75”
• X-axis Ball Screw Diameter: 1.25”
• Z-axis Ball Screw Diameter: 1.96”
• X/Z-axis Rapid Feed: 1,394 ipm
• X/Z-axis Cutting Feed Rate: 118.11 ipm
• Turret: Hydraulic 8 Position Turret LS 200 with 4 X Internal Tool Holder and 4 X External Tool Wedges
• Tool Shank/Number: 1 x 1”
• Boring Bar Diameter: 1.5”
• Quill Diameter: 5”
• Quill Travel: 7.87”
• Quill Center Taper: MT6
• Spindle Motor: 20 HP
• X-axis Servo Motor: 2 HP
• Z-axis Servo Motor: 4 HP
• Hydraulic Pump Motor: 2 HP
• Colland Pump: 0.75 HP
• Power Consumption: 28 KVA
• Approximate Weight: 10,120 lbs
• Dimensions: 15.41’ x 6.56’ x 5.91’
• Available Options & Accessories
• Transformer (28 KVA)
• Steady rest with bearing (grip range
• Follow up rest (0.4” – 5.5”)
• Follow up rest (10”- 18”)
• Hydraulic tailstock with foot padel in lieu of manual tailstock
• Boring attachment
• 20” 3 jaw chuck, A2-15 with back plate
• 10” bore in lieu of 6.5” bore
• 20” 3-jaw chuck A2-15, 255 mm through hole with back plate
• Spindle chiller

Specifications

• Manufacturer: Sharp Industries
• SKU: 3080TC-F
• Shipping Method: Flatbed
• Weight: 10,120 lb
• Dimensions: 185 × 79 × 71 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
