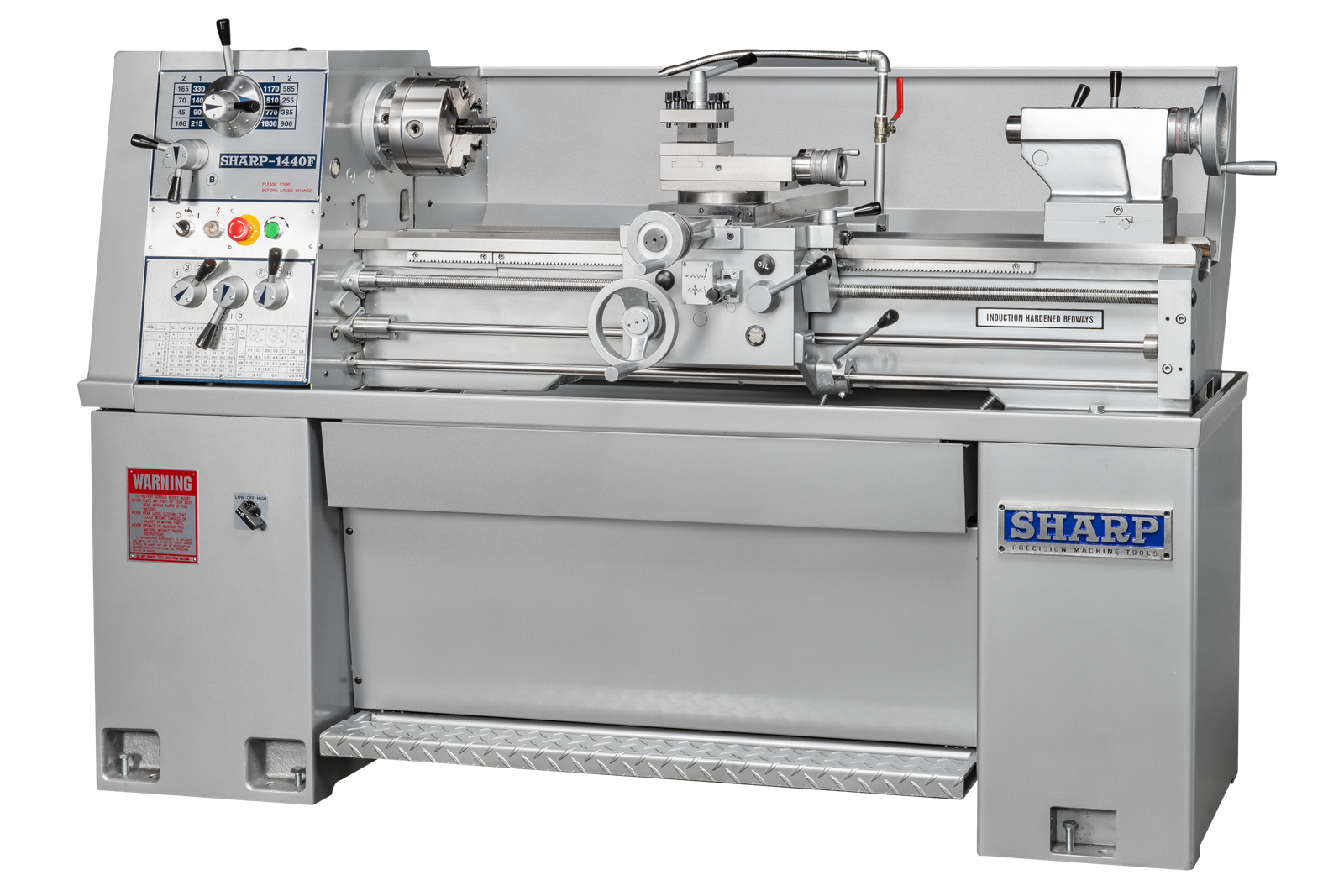

Sharp Industries 220V 14” x 40” Precision Lathe 1440F

Sharp Industries 220V 14” x 40” Precision Lathe 1440F is a Sharp Industries product in the Lathes collection.

Product Details

• Spindle Bore: 1.5”
• Swing Over Bed: 14”
• Spindle Speed: 45 – 1800 RPM
• Motor: 220V, 3 HP
• Description
• The 14” swing precision lathe offer simple and easy operation for doing light work with all the features as a larger engine lathe. The economy value is ideal for schools, training for the next generation of skilled workers. It is also great for general machine shops, maintenance shops and individual workshops.
• Standard Features
• 3 HP motor speeds (45-1800 rpm)
• 16 Speeds (40-1,800 rpm)
• D1-4 camlock spindle 1 ½” bore
• Gap bed
• Hardened and ground chrome-moly gears
• 3-jaw 8" chuck, steady rest (1/4" – 3-3/4")
• Removeable gap, back plate
• Coolant system, 4 way toolpost
• Full length splash guard
• Center sleeves, dead center, tool kit
• Wired 220v
• Specifications
• Swing Over Cross Slide: 8.62”
• Swing Over Gap: 20”
• Gap Width (In Front of Face Plate): 9.25”
• Distance Between Centers: 40”
• Spindle Nose: D1-4 camlock
• Threads, Number: 4-112 TPI / 40
• Longitudinal Feeds: 0.0012 – 0.03”/Rev
• Cross Feeds: 0.0003 – 0.01”/Rev
• Leadscrew Pitch, Diameter: 8 TPI, 7/8”
• Cross Slide Travel: 6.6”
• Compound Travel: 4”
• Compound Width: 3.5”
• Bed Length: 66”
• Bed Width: 8.5”
• Quill Diameter: 1.75”
• Quill Travel: 4.5”
• Quill Center Taper: MT #3
• Spindle Motor: 3 HP
• Voltage: 220V
• Phase: 3 Ph
• Power Consumption (220V): 3.5 KVA / 10 amps
• Power Consumption (440V): 3.5 KVA / 5 amps
• Approximate Weight: 1,650 lbs
• Dimensions: 6.29’ x 2.41’ x 3.91’
• Available Options & Accessories
• 440V available with the purchase of an additional transformer or new motor
• 1440F-K Package (Includes): 14" x 40", 16 Speeds (45-1,800 rpm), 1.5" Bore, D1-4 Camlock 2 Axes Digital Readout (Newall), Follow Rest, Chuck Guard with Limit Switch, Work Light
• 14" x 40", 16 Speeds (45-1,800 rpm), 1.5" Bore, D1-4 Camlock
• 2 Axes Digital Readout (Newall), Follow Rest, Chuck Guard with Limit Switch, Work Light
• 3-jaw chuck, different sizes
• 4-jaw chuck, different sizes
• Chuck guard w/ limit switch
• Follow rest
• Roller jaw set for steady rest
• Taper attachment
• Quick change tool holder set (7 pcs. Holder) • Live center – MT#3
• Drill & arbors • Face plate (12″)
• 4-way carriage stop
• Micrometer carriage stop safety cover on end of spindle
• Halogen work light
• tool guard (at front of compound slide with limit switch)
• Lead screw cover (accordion style)
• 5C collet set (1/8″ to 1-1/16″ by 1/16″) 16 pcs.
• 5C lever collet closer

Specifications

• Manufacturer: Sharp Industries
• SKU: 1440F
• Shipping Method: LTL Freight
• Weight: 1,936 lb
• Dimensions: 33 × 77 × 61 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
