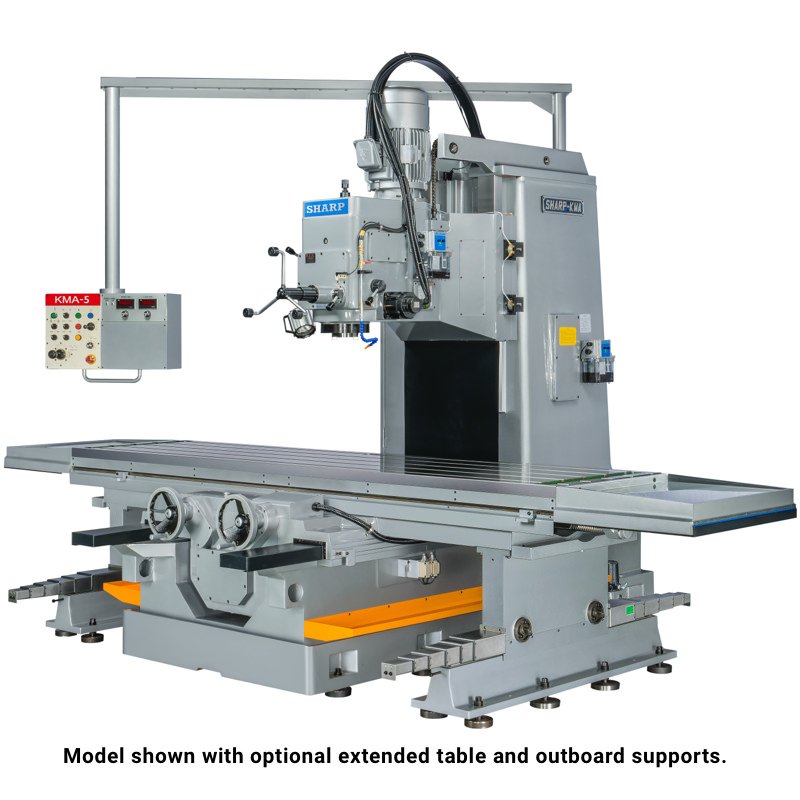

Sharp Industries 220V 106” Heavy Duty Vertical Bed Type Mill KMA-5

Sharp Industries 220V 106” Heavy Duty Vertical Bed Type Mill KMA-5 is a Sharp Industries product in the Milling Machines collection.

Product Details

• Table Size: 29.5” x 106.3”
• X & Y Axis Travel: 78.74” x 31.5”
• Spindle Taper: NST #50
• Spindle Motor: 220V, 17.5 HP
• Description
• Bed type vertical mills are ideal for milling large work pieces or heavy cutting on hard metals. The quill is fixed so it can withstand strong lateral forces. For this model, the entire vertical head moves up to 20” that enables deep drilling and boring operations. The large spindle with #50 taper can remove large amounts of metals in one pass. Even though the geared vertical head is huge, it travels smoothly by cranking the eye level tri-lever handle.
• Standard Features
• 30” x 106” table, 32” x 79” travel
• Vertical head travel 27.6”, fixed quill
• NST #50 taper spindle, 17.5 HP motor
• Hardened and ground box ways
• Fully ribbed castings on column, table and saddle to make it a rigid structure
• Double nut backlash eliminator
• Eye-level lever control for vertical head rapid traverse
• 4 way toggle control of table rapids
• Pneumatic locks on spindle, table saddle
• Variable speed feed on table, saddle
• Ballscrew, AC servo drive on table, saddle
• Gear driven, 2 range variable speed vertical head feed
• Honeycombed ribbing castings
• Automatic table feeds with rapid traverse
• Climb milling backlash eliminator
• Fixed quill design on vertical head
• Coolant system
• Auto lubrication system
• Draw-in bolt (1 pc)
• Tool box
• Specifications
• T-slots (No., Size, Pitch) : 5, 0.75”, 5.9”
• Table Travel: X Longitudinal: 78.74”
• Table travel: Y Cross: 31.5”
• Vertical Head Travel: 27.56”
• Spindle Center to Column: 31.5”
• Spindle Nose to Table: 2.75”-30.3”
• Longitudinal Feeds (Variable): 1.1”
• Longitudinal Rapids: 122”
• Cross Feeds (Variable): 39.5”
• Cross Rapids: 122”
• Spindle Speeds: 45-1500 rpm
• Vertical Head Feeds: 11.81”
• Vertical Spindle: 17.5 HP
• Table Feed and Rapid: 1.75 HP
• Coolant System: 1/6 HP
• Floor Area (W x D x H): 18.68’ x 10.08’ x 9.58’
• Approximate Weight: 26,000 lbs
• Power Consumption: 220V, 60 amp
• Available Options & Accessories
• 440V available with the purchase of an additional transformer
• Power drawbar w/ foot pedal control
• 6 in. “KURT” vise with swivel base D688
• Halogen work light
• 30in. travel in z axis in lieu of 27.5 in.

Specifications

• Manufacturer: Sharp Industries
• SKU: KMA-5 (220V)
• Shipping Method: Flatbed
• Weight: 26,840 lb
• Dimensions: 144 × 96 × 114 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
