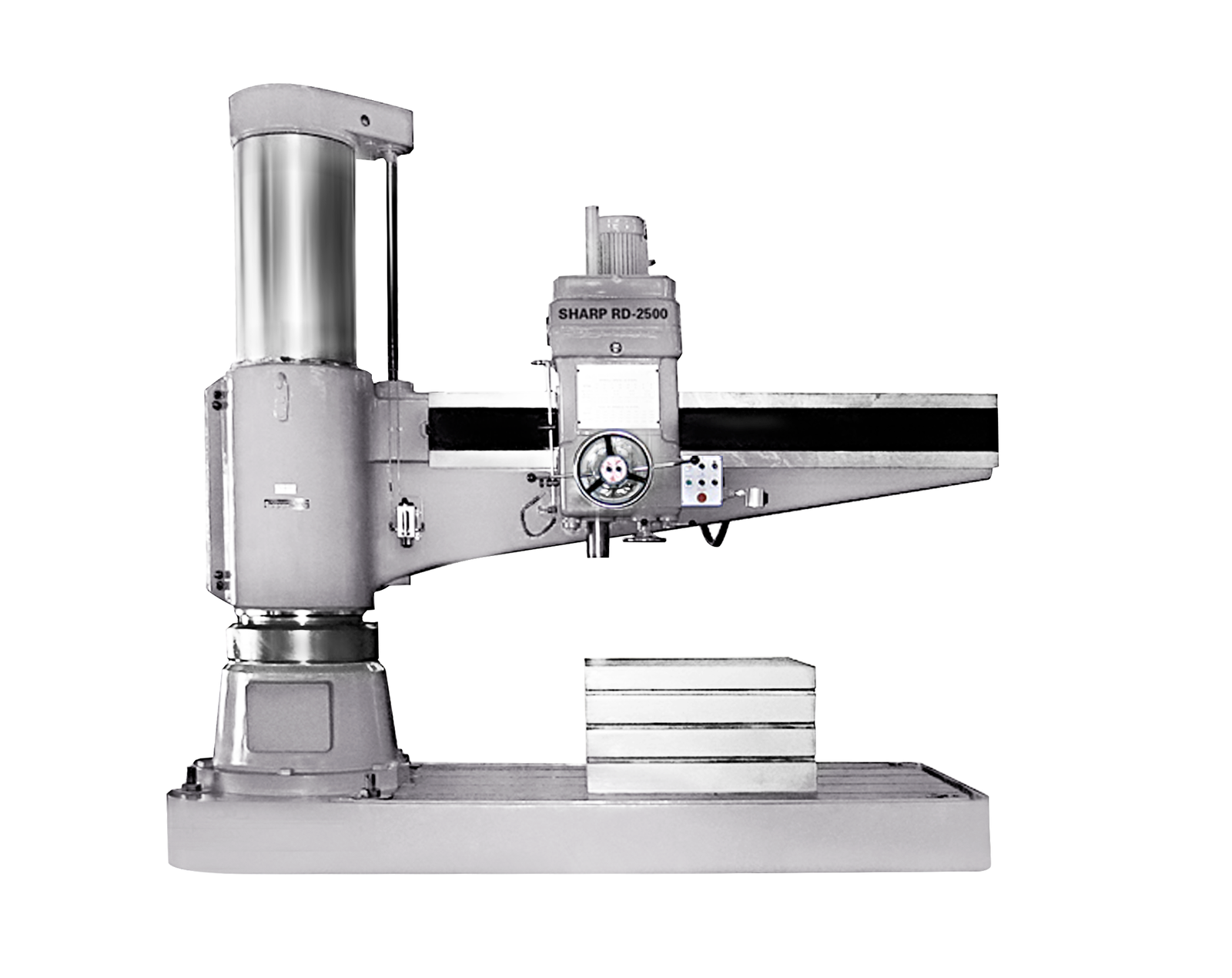

Sharp Industries 220V 10 HP Radial Drill RD-2500

Sharp Industries 220V 10 HP Radial Drill RD-2500 is a Sharp Industries product in the Drill Presses collection.

Product Details

• Diameter to Column: 22”
• Head Travel: 79”
• Column to Spindle: 98”
• Motor: 220V, 10 HP
• Description
• This is a high-performance machine ideal for drilling, tapping, boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.
• Standard Features
• 22” column diameter
• MT#6 spindle, 10 HP motor
• 98” column to spindle center
• Drilling : 3.9” cast iron, 3.1” steel
• Boring : 8.2” cast iron, 6.5” steel
• Hardened and ground arm slide ways and gears
• Double tube column design to increase rigidity
• Arm elevation controlled by electric motor
• Built-in automatic tool ejector
• Safety device prevents arm from dropping even when bronze nut is worn out
• T-slots and drain channels on box table
• Box table
• Coolant system
• Auto spindle reverse for tapping
• Work light
• Tool box
• Specifications
• Diameter of column: 21.65”
• Distance from column surface to spindle center, max.: 98.42”
• Distance from column surface to spindle center, min.: 19.68”
• Travel of spindle head: 78.74”
• Distance from base surface to spindle end, max.: 78.74”
• Distance from base surface to spindle end, min.: 21.65”
• Elevating height of arm: 39.37”
• Effective area of table: 39.37” x 31.49” x 22.04”
• Dimensions of base: 138.58” x 55.12” x 12.60”
• Taper hole in spindle: MT #6
• Stoke of spindle: 17.72”
• R.P.M. of spindle (rpm range x steps): 16-1250 x 16 Steps
• Feed of spindle (1PR x steps): 0.0016-0.126” x 16 Steps
• Main motor: 10 HP
• Elevating motor: 5 HP
• Coolant equipment: 0.25 HP
• Machine height from floor, max.: 13.09’
• Base + column height: 12.63’
• Measurement (LxWxH): 13.12’ x 5.25’ x 12.63’
• Net weight: 24,200 lbs
• Approximate shipping weight: 27,500 Lbs.
• Cast Iron: Drilling: 3.15” Capacity Tapping: 3.94”
• Drilling: 3.15”
• Capacity Tapping: 3.94”
• Steel: Drilling: 2.56” Capacity Tapping: 2.95”
• Drilling: 2.56”
• Capacity Tapping: 2.95”
• Total Power Consumption (220V): 18 KVA/50 amps
• ​​​​​​​ Available Options & Accessories
• Tilting Box Table

Specifications

• Manufacturer: Sharp Industries
• SKU: RD-2500 (220V)
• Shipping Method: Flatbed
• Weight: 27,500 lb
• Dimensions: 162 × 73 × 150 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
