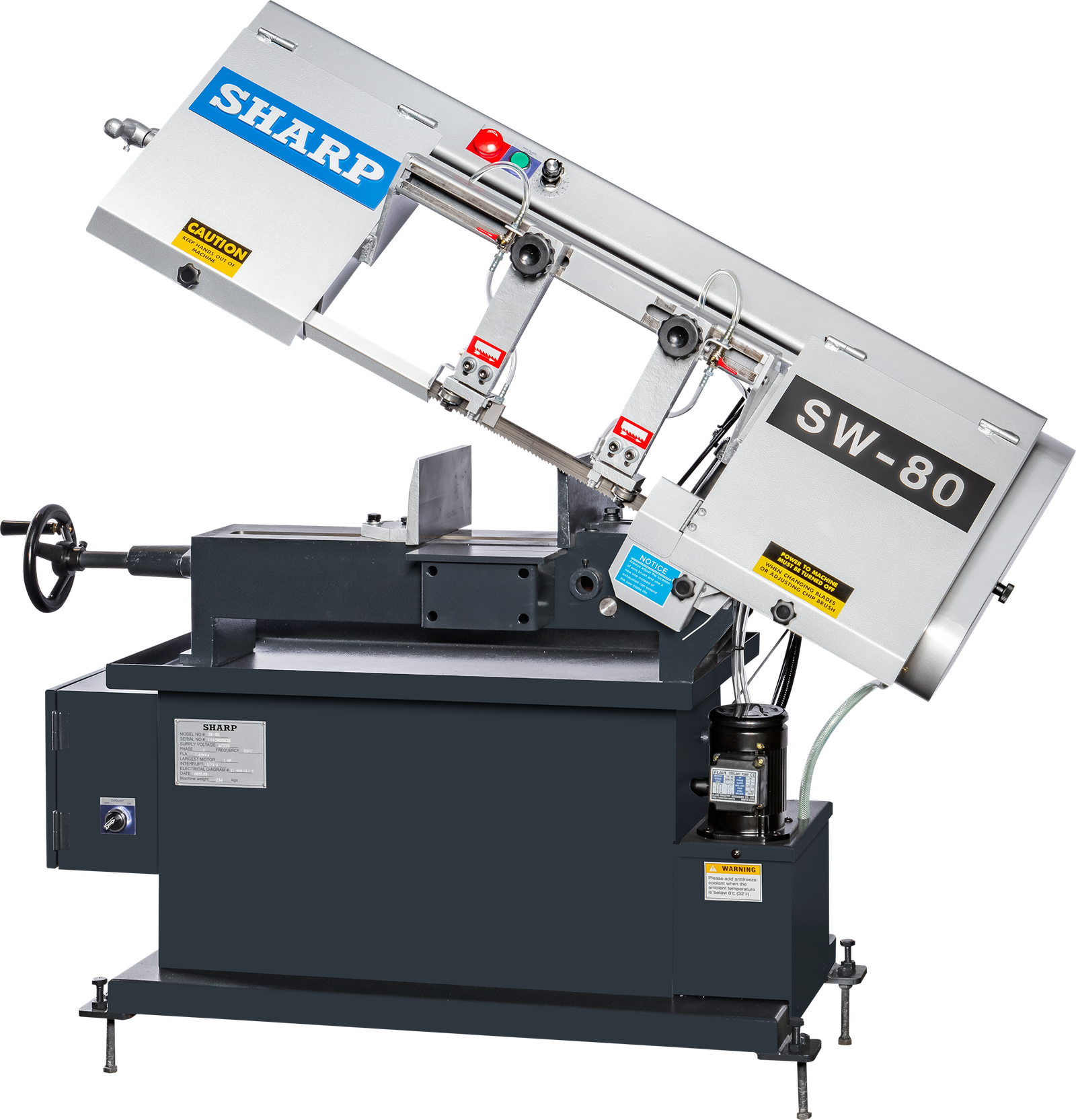

Sharp Industries 1 HP Horizontal Manual Band Saw SW-80

Sharp Industries 1 HP Horizontal Manual Band Saw SW-80 is a Sharp Industries product in the Band Saws collection.

Product Details

• Cutting Capacity at 90°: Round: 8”, Square: 7”
• 4 step blade speeds with worm gear speed reducer
• Auto saw arm return at end of cut
• Motor:1 HP
• Description
• Simple, easy to use manual saw with 8” capacity for round stock, vise can swivel 45°, manual vise clamping, mechanical length stop.
• Standard Features
• 8” round, 7” square, 7” x 11.4” rectangular cutting capacity (90°)
• 5” round, 6” square capacity (45°)
• 1 HP motor, wt.660 lbs
• Coolant system
• Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
• Blade brush to remove chips from blade gullet
• Adjuster stock stop
• Manual blade tension adjustment
• Adjustable mechanical material stop
• Bi-Metal saw blade
• Tools leveling pads and additional wire brush
• Specifications
• Round: ​​​​​​​ 90°: 8" ​​​​​​​​​​​​​​ 45°: 8"
• ​​​​​​​ 90°: 8"
• ​​​​​​​​​​​​​​ 45°: 8"
• ​​​​​​​ Square: ​​​​​​​​​​​​​​ 90°: 7" 45°: 6"
• ​​​​​​​​​​​​​​ 90°: 7"
• 45°: 6"
• Rectangle (H x W): ​​​​​​​ 90°: 7” x 11.4” 45°: 9" x 6"
• ​​​​​​​ 90°: 7” x 11.4”
• 45°: 9" x 6"
• Speed: 60HZ: 59, 96, 155 , 260 fpm 50HZ: 49, 83, 129, 217 fpm ​​​​​​​
• 60HZ: 59, 96, 155 , 260 fpm
• 50HZ: 49, 83, 129, 217 fpm ​​​​​​​
• Size: 1” x .035” x 107”
• Tension: Manual
• Saw Blade Motor Output: 1 HP
• Coolant Motor Output: 1/8 HP
• Table Height: 25”
• Vise Control: Manual
• Net Weight: 484 lbs
• Gross Weight: 528 lbs
• Floor Space (L x W x H): 56” x 24.5” x 45”
• Available Options & Accessories
• Infinite variable speed device
• 2M roller table
• 1M roller table

Specifications

• Manufacturer: Sharp Industries
• SKU: SW-80
• Shipping Method: LTL Freight
• Weight: 800 lb
• Dimensions: 59 × 32 × 47 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
