Scotchman SUP-600 24″ Non-Ferrous 460V Three Phase Semi-Automatic Upcut Circular Cold Saw 1849

Scotchman SUP-600 24″ Non-Ferrous 460V Three Phase Semi-Automatic Upcut Circular Cold Saw 1849 is a Scotchman product in the Cold Saws collection.

Product Details

• Maximum Diameter Blade: 600 mm
• Cutting Speed: 3,000 RPM
• Motor: 5.5 hp, 460 Volt, 3 Phase
• Made in the Spain with a 3-year parts warranty
• Features
• Precision miter upcut non-ferrous saw
• Miter capabilities with fixed stops at 22.5°, 45°, 90°, 135° & 157.5°
• Powered safety hood with safety interlock switch
• Blade door with safety interlock switch
• Dual palm buttons
• Adjustable feed rate on saw head
• Two horizontal pneumatic clamps
• Two vertical pneumatic clamps
• Capable of slotting
• Moveable back fence for larger capacity
• One gallon coolant
• Mist coolant lubrication system
• One 600 mm diameter, 132-tooth carbide blade
• One blade wrench
• Air hose
• Chip collection drawer in base and a 4-3/4" chip collection port
• Adjustable leveling pads
• Meets CE standards
• Warranty: Three years on parts
• Made in Spain
• Specifications

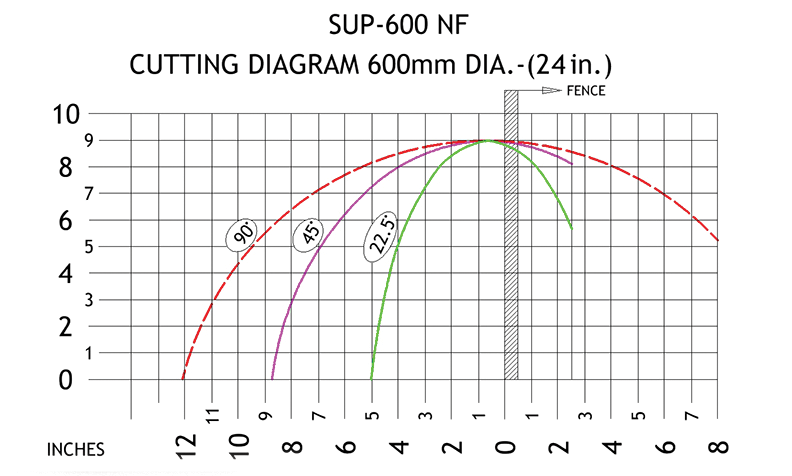

• Maximun Cutting Capacities (Non-Ferrous & PVC ): Round 90°: 9" Square 90°: 8" Rectangle 90°: 15" x 6" Round 45°: 9" Square 45°: 7" Rectangle 45°: 10" x 4"
• Round 90°: 9"
• Square 90°: 8"
• Rectangle 90°: 15" x 6"
• Round 45°: 9"
• Square 45°: 7"
• Rectangle 45°: 10" x 4"
• Motor Rate: 5.5 HP
• Motor Options: 460 Volt, Three Phase
• Air Pressure: 90 psi
• Arbor Bore: 50 mm
• Width: 49-1/4"
• Depth: 54-1/2"
• Height (top of hood): 64-3/8"
• Height (floor to table): 38-5/8"
• Shipping Weight (may vary): 1,465 lbs.

Specifications

• Manufacturer: Scotchman
• SKU: 1849
• Shipping Method: LTL Freight
• Weight: 1,465 lb
• Dimensions: 55 × 48 × 65 in
• Country of Origin: Spain
• Warranty: 3 Years (Parts)
