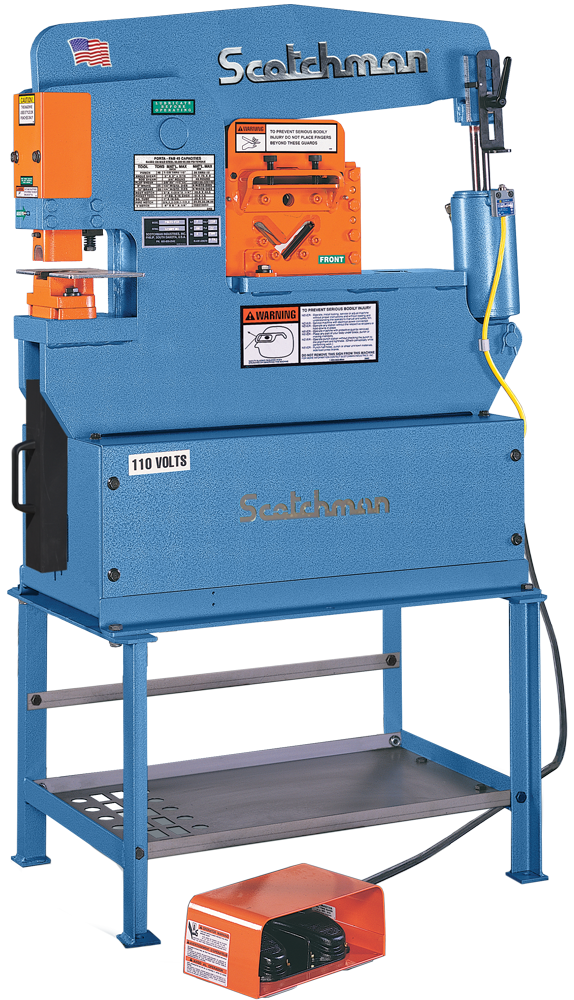

Scotchman Porta Fab 45 110V Single Phase 45 Ton Hydraulic Ironworker 012600

Scotchman Porta Fab 45 110V Single Phase 45 Ton Hydraulic Ironworker 012600 is a Scotchman product in the Ironworkers collection.

Product Details

• Punching Capacity: 45 Ton 1-1/8" in 1/2"
• Hydraulics: 2,500 psi
• Motor: 2 hp, 110 Volt, 1 Phase
• Made in the USA with a 3-year parts warranty
• Description
• It's portable, versatile, and designed for in-plant or on-the-job operation!
• With a 45-ton punching capacity, this ironworker can punch 1-1/8" hole through 1/2" mild steel and runs on 110-volt power from your standard wall outlet or generator. A 3-in-1 combination tool consisting of a flat bar shear, rod shear, and an angle shear comes standard and is located in our unique tool table area. This versatile workstation allows additional tooling to be easily swapped in and out so you can customize the machine to fit your needs.
• This American-made ironworker is built tough and utilizes a hydraulic system with electric valve and remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty.
• Features
• Single Operator, 4 Stations
• Designed to be portable for job-site operation
• 45 Ton punch station
• Keyed punch ram for safety
• 2" Die holder
• Punch nut with wrench & stripper
• One round punch & die: max. diameter 1"
• Adjustable electric stroke control with scale
• Electric remote foot pedal

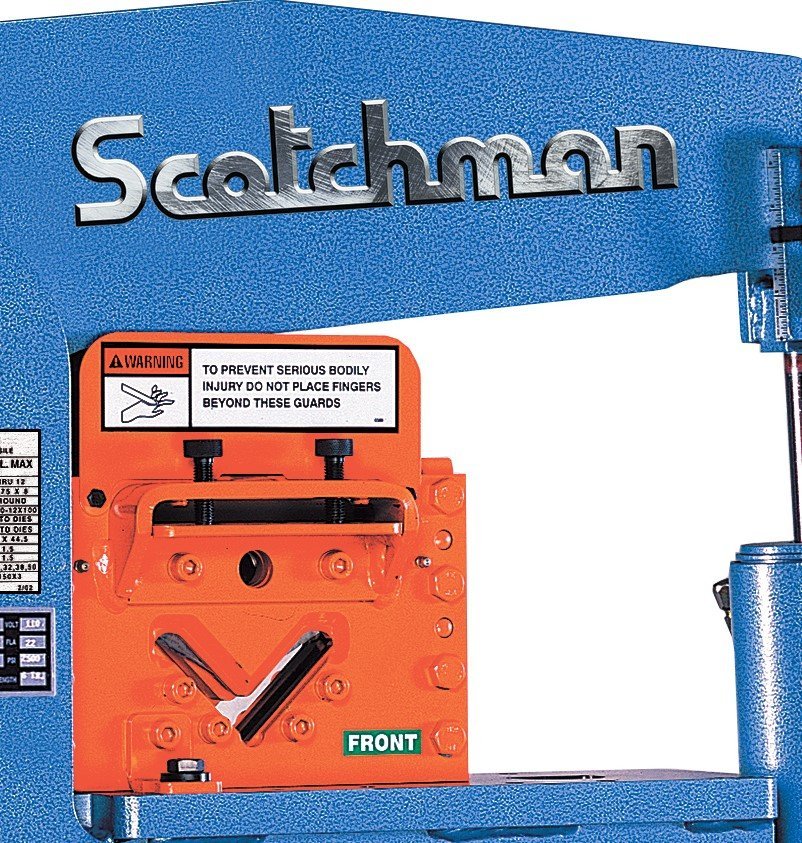

• Three-in-One Combination Tool: Angle Shear, Bar Shear & Rod Shear
• Tool table work area
• Slug receptacle
• Machine stand with punch & die and tooling storage rack
• All guards necessary to comply with ANSI B11.5 Safety Standards
• Warranty: Three years on parts
• Made in the USA
• Specifications
• Special Tooling: 2-1/4" Max. Dia.
• Throat Depth: 4-1/4"
• Flat Bar Shear: 6" Length 1/2" x 4" 3/8" x 6"
• 6" Length
• 1/2" x 4"
• 3/8" x 6"
• Angle Shear 90 degree: 3" x 3" x 5/16"
• Angle Shear 45 degree: 2" x 2" x 1/4"
• Round Rod Shear: 3/4"
• Brake 8": 25 Ton
• Brake 12": 20 Ton
• Open End Brake: Max. 1/4" x 3" [Flat or Angle Iron]
• Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2"
• Rectangle Notcher: 2" x 1-3/4" x 1/4"
• 90 degree V-Notcher: 6" x 6" x 1/8"
• Rod Shear Round (max.): 5 Cavity – 1/4" to 1"
• Rod Shear Square (max.): 1 Cavity – 1/4" to 3/4"
• Unistrut Shear: Samples Required
• Square Tube Shear: 1/2" to 1" 12 gauge
• Picket Tool: 1/2", 3/4" & 1" 16 gauge
• Weld Coupon Bender (max.): 2" wide x 3/8"
• Strokes per minute in light material: 10 spm [Punch Station] 1/4" Stroke
• Strokes per minute in heavy material: 4 spm [Punch Station] 3/4" Stroke
• Motor: 2 hp, 110 Volt, Single Phase
• Dimensions (L x W x H): 38-1/4" x 20" x 39-1/4"
• Shipping Weight (may vary): 710 lbs.
• Optional Tooling
• 220V Single Phase Motor
• Snap Ring Removal Tool
• Pipe Notcher
• 8” Brake
• Weld Coupon Bender
• Picket Tool
• Unistrut Shear
• LED Lights
• Brake Table with Scale and Squaring Arm
• Square Tube Shear
• 30" Material Stop
• Rod Shear
• 90° V-Notcher
• Rectangle Notcher
• Open End Brake
• 12" Brake
• 6" Brake
• Economy Punch & Die Package
• Deluxe Punch & Die Package
• Brake Length Gauge with Scale

Specifications

• Manufacturer: Scotchman
• SKU: 012600
• Shipping Method: LTL Freight
• Weight: 725 lb
• Dimensions: 36 × 18 × 40 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
