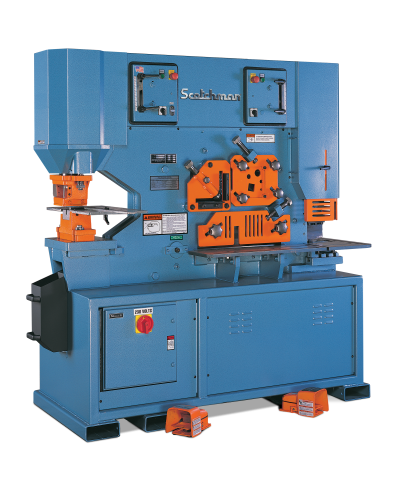

Scotchman DO 8514-20M 220V Single Phase Dual Operator 85 Ton Hydraulic Ironworker 025920

Scotchman DO 8514-20M 220V Single Phase Dual Operator 85 Ton Hydraulic Ironworker 025920 is a Scotchman product in the Ironworkers collection.

Product Details

• Punching Capacity: 85 ton 1-1/16" in 1"
• Hydraulics: 3,350/3,800 psi
• Motor: 10 hp, 220 Volt, 1 Phase
• Made in the USA with a 3-year parts warranty
• Features
• Dual Operator, 5 Stations
• Dual operator allows for two operators to work at the same time at full capacity
• 85 Ton punch station
• Keyed punch ram for safety
• Punch gauging table with fence and scale
• Die holder complete with 2" die insert
• Punch nut with wrench & stripper
• Adjustable swing-away stripper
• One round punch & die: max. diameter 1-1/4"
• Punch jog control
• Two adjustable electric stroke controls with scale
• Two electric remote foot pedals
• Tandem Hydraulic Pump
• Two valves
• Slug-less angle shear
• Rectangle notcher: can be converted to a V-notcher, 50 ton punch station, or open end brake
• Flat bar shear
• Shear table with miter fence
• Rod shear
• Slug receptacles
• Electrical box supplied with emergency palm button and lock-out tag-out accommodations
• All guards necessary to comply with ANSI B11.5 safety standards
• Forklift accommodations
• Warranty: Three years on parts
• Made in USA
• Specifications
• Special Tooling: 4" Max. Dia.
• Throat Depth: 14"
• Flat Bar Shear (Sabre Blade – Standard): 20" Length 1" x 14" 3/4" x 20"
• 20" Length
• 1" x 14"
• 3/4" x 20"
• Angle Shear 90 degree: 6" x 6" x 1/2"
• Angle Shear 45 degree w/Bar Shear: 4" x 4" x 1/2"
• Brake 12": 85 ton
• Brake 24": 85 ton
• Open End Brake (Notcher Station): Max. 1/2" x 6" [Flat or Angle Iron]
• Open End Brake (Punch Station): Max. 1/4" x 5" [Flat or Angle Iron]
• Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2"
• Rectangle Notcher: 2" x 4" x 1/2"
• 90 degree V-Notcher (Notcher Station): 3" x 3" x 1/2"
• 90 degree V-Notcher (Punch Station): 6" x 6" x 5/16"
• Punch Attachment (Notcher Station): 50 ton 1-1/4" in 1/2"
• Throat Depth w/Punch Attachment (Notcher Station): 4-7/16"
• Channel Shear: 2" to 6"
• Unistrut Shear: Samples Required
• Rod Shear Round (max.): 4 Cavity – 1/2", 3/4", 1", 1-1/2"
• Rod Shear Square (max.): 1 Cavity – 1-1/2"
• Square Tube Shear: 1/2" to 2" 12 gauge
• Picket Tool: 1/2", 3/4", 1" 16 gauge
• Weld Coupon Bender (max.): 2" wide x 3/8"
• Offset Die Holder: Max. 40 ton
• Strokes per Minute in Light Material: 45 spm [Punch Station] 1/4" Stroke
• Strokes per Minute in Heavy Material: 18 spm [Punch Station] 3/4" Stroke
• Motor: 10 hp, 220 Volt, Single Phase
• Dimensions (L x W x H): 77-1/2" x 32-1/4" x 74"
• Shipping Weight (may vary): 5,504 lbs.
• Optional Tooling
• Pipe Notcher
• Picket Tool
• Unistrut Shear
• LED Lights
• Weld Coupon Bender
• Punch Table Extension
• Custom Built Tool examples
• 24" x 5' Conveyor with Angle Iron Support
• Open End Brake for Notcher Station
• Multi-Loc Punch Gauging Table
• Optional Punch for Notcher Station
• Brake Table with Scale & Squaring Arm
• Offset Die Holder
• Urethane Stripper
• Channel Shear Blades
• 12" Brake
• 48" Back Gauge
• 90° V-Notcher
• Open End Brake
• Economy Punch & Die Package
• Deluxe Punch & Die Package
• 24" Brake
• Square Tube Shear

Specifications

• Manufacturer: Scotchman
• SKU: 025920
• Shipping Method: Flatbed
• Weight: 5,504 lb
• Dimensions: 70 × 30 × 77 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
