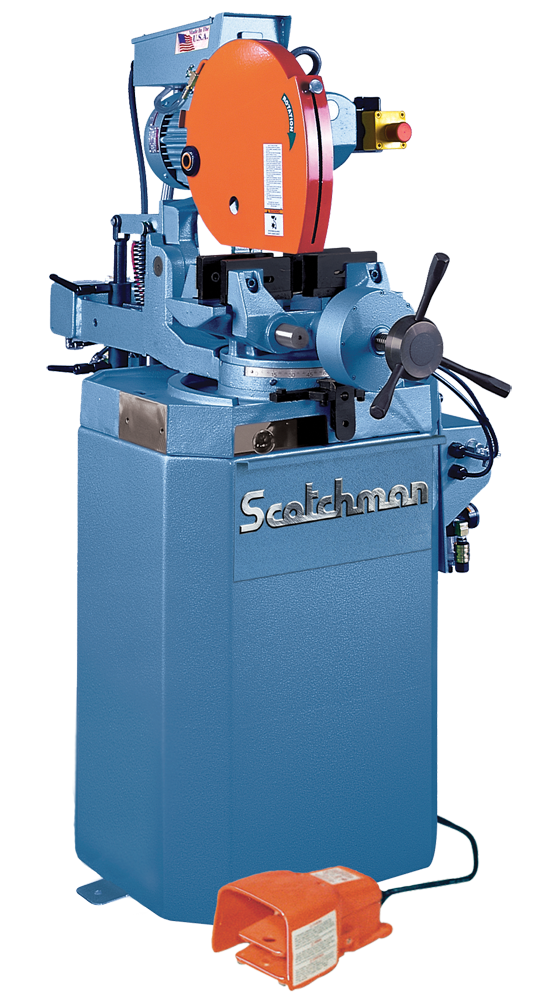

Scotchman CPO 350 PKPD 14″ Semi-Automatic Ferrous 208V Three Phase High Turn Dual Speed Circular Cold Saw 076033

Scotchman CPO 350 PKPD 14″ Semi-Automatic Ferrous 208V Three Phase High Turn Dual Speed Circular Cold Saw 076033 is a Scotchman product in the Cold Saws collection.

Product Details

• Cutting Speeds: (HT) 3 hp, 44/88 rpm
• Semi-automatic cycle
• Motor: 3 hp, 208 Volt, 3 Phase
• Made in the USA with a 3-year parts warranty
• Description
• The Scotchman CPO 350 PKPD semi-automatic cold saw is built for industrial use and designed to make precise burr-free cuts on a production scale. This American-made saw accepts a 350mm HSS blade and can easily cut 4.5” round tube and 2” solid at 90°; plus, it has mitering capabilities of 135° with a miter locking device allowing for quick & accurate stop setting at 45°, 90° and 135°. The semi-auto cycle is simple to operate with a press on the remote foot pedal and features a double clamping and self-centering vise for maximum material hold. Its pneumatic vise and automatic return save you time, and the integrated flood coolant system maintains a high cut quality while extending the life of the blade saving you money.
• All Scotchman CPO series saws are American-made, built with a rigid cast iron saw base, and have a double reduction ground and hardened all-metal gear box to ensure tight tolerances throughout the life of the saw.
• The CPO 350 PKPD is built with dependability and versatility in mind and is able to expand to meet growing production needs by adding on a programmable stop/feed material positioning system. This saw is backed by a 3-year parts warranty and lifetime technical support. Cut with confidence on a USA made sawing system from Scotchman.
• Features
• Air operated double self-centering vise assures burr-free cuts
• Pneumatic power down feed with electric controls
• Emergency stop button
• Miter capabilities 45 degrees left to 45 degrees right
• Miter locking device: Quick, accurate settings-stops at 45 degrees left, 90 degrees, and 45 degrees right
• Capable of slotting
• Double reduction, hardened and ground worm and wheel gear box
• Chip drawer
• 7 Gallon flood coolant tank with pump
• One 315 mm diameter HSS blade
• One blade wrench
• One gallon coolant
• Complies with ANSI B11.10 safety standards
• Warranty: Three years on parts
• Made in USA
• Specifications
• Cutting Speeds: HT (High Turn) – designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material: 3 hp, 44/88 rpm
• Max. Cutting Capacities (based on mild steel): Tubing: Round 90°: 4-1/2" Square 90°: 4-1/4" x 4-1/4" Rectangle 90°: 5-1/2" x 4" Round 45°: 4" Square 45°: 3-3/4" x 3-3/4" Rectangle 45°: 3-3/4" x 3-3/4" Solid Round 90°: 1-3/4" Square 90°: 1-3/4" x 1-3/4" Round 45°: 1-1/2" Square 45°: 1-1/2" x 1-1/2"
• Tubing: Round 90°: 4-1/2" Square 90°: 4-1/4" x 4-1/4" Rectangle 90°: 5-1/2" x 4" Round 45°: 4" Square 45°: 3-3/4" x 3-3/4" Rectangle 45°: 3-3/4" x 3-3/4"
• Round 90°: 4-1/2"
• Square 90°: 4-1/4" x 4-1/4"
• Rectangle 90°: 5-1/2" x 4"
• Round 45°: 4"
• Square 45°: 3-3/4" x 3-3/4"
• Rectangle 45°: 3-3/4" x 3-3/4"
• Solid Round 90°: 1-3/4" Square 90°: 1-3/4" x 1-3/4" Round 45°: 1-1/2" Square 45°: 1-1/2" x 1-1/2"
• Round 90°: 1-3/4"
• Square 90°: 1-3/4" x 1-3/4"
• Round 45°: 1-1/2"
• Square 45°: 1-1/2" x 1-1/2"
• Motor: 3 hp, 208 Volt, Three Phase
• Max. Diameter Blade: 350 mm
• Arbor Bore: 40 mm
• Pin Spacing: 4/12/64
• Width: 21-7/8"
• Depth: 43-1/2"
• Height (not including feed handle): 56-1/4"
• Height (floor to vise): 37-7/16"
• Shipping Weight (may vary): 760 lbs.

Specifications

• Manufacturer: Scotchman
• SKU: 076033
• Shipping Method: LTL Freight
• Weight: 760 lb
• Dimensions: 25 × 45 × 65 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
