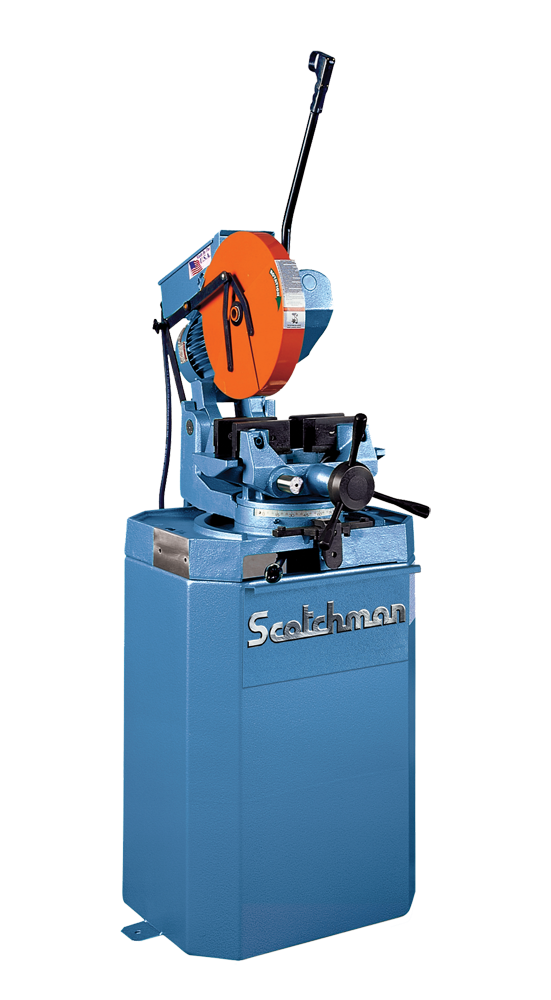

Scotchman CPO 350 14″ Manual Ferrous 208V Three Phase High Turn Dual Speed Circular Cold Saw 076030

Scotchman CPO 350 14″ Manual Ferrous 208V Three Phase High Turn Dual Speed Circular Cold Saw 076030 is a Scotchman product in the Cold Saws collection.

Product Details

• Cutting Speeds: (HT) 3 hp, 44/88 rpm
• Maximum Saw Blade Diameter: 350 mm
• Motor: 3 hp, 208 Volt, 3 Phase
• Made in the USA with a 3-year parts warranty
• Description
• Scotchman Industries powerful American-made CPO 350 Circular Cold Saw is the perfect machine for any fabrication shop. This dependable saw features a double clamping and self-centering vise for maximum hold and provides burr-free, high quality, volume parts. It has 180-degree mitering ability and a miter-locking device which automatically stops at 45 degrees left, 90 degrees straight, and 45 degrees right, giving it the ability to slot and notch. Additional machine features include a chip drawer, a double reduction gearbox, a two-speed motor which utilizes up to a 350mm diameter blade giving it a 4-7/8" OD round capacity. This machine is built with dependability and versatility in mind, with the quality you expect from a Scotchman. Always backed by their outstanding 3-Year Warranty!
• Features
• Manual double self-centering vise assures burr-free cuts
• Operator controlled trigger switch
• Miter capabilities 45 degrees left to 45 degrees right
• Miter locking device: Quick, accurate setting-stops at 45 degrees left, 90 degrees, and 45 degrees right
• Capable of slotting
• Double reduction, hardened and ground worm and wheel gear box
• Chip drawer
• 7 Gallon flood coolant tank with pump
• One 315 mm diameter HSS blade
• One blade wrench
• One gallon coolant
• Complies with ANSI B11.10 safety standards
• Warranty: Three years on parts
• Made in USA
• Specifications
• Cutting Speeds: HT (High Turn) – designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material: 3 hp, 44/88 rpm
• Max. Cutting Capacities (based on mild steel): Tubing: Round 90°: 4-1/2" Square 90°: 4-1/4" x 4-1/4" Rectangle 90°: 5-1/2" x 4" Round 45°: 4" Square 45°: 3-3/4"x3-3/4" Rectangle 45°: 3-3/4"x3-3/4" Solid Round 90°: 1-3/4" Square 90°: 1-3/4" x 1-3/4" Round 45°: 1-1/2" Square 45°: 1-1/2"x1-1/2"
• Tubing: Round 90°: 4-1/2" Square 90°: 4-1/4" x 4-1/4" Rectangle 90°: 5-1/2" x 4" Round 45°: 4" Square 45°: 3-3/4"x3-3/4" Rectangle 45°: 3-3/4"x3-3/4"
• Round 90°: 4-1/2"
• Square 90°: 4-1/4" x 4-1/4"
• Rectangle 90°: 5-1/2" x 4"
• Round 45°: 4"
• Square 45°: 3-3/4"x3-3/4"
• Rectangle 45°: 3-3/4"x3-3/4"
• Solid Round 90°: 1-3/4" Square 90°: 1-3/4" x 1-3/4" Round 45°: 1-1/2" Square 45°: 1-1/2"x1-1/2"
• Round 90°: 1-3/4"
• Square 90°: 1-3/4" x 1-3/4"
• Round 45°: 1-1/2"
• Square 45°: 1-1/2"x1-1/2"
• Motor: 3 hp, 208 Volt, Three Phase
• Max. Diameter Blade: 350 mm
• Arbor Bore: 40 mm
• Pin Spacing: 4/12/64
• Width: 21-7/8"
• Depth: 43-1/2"
• Height (not including feed handle): 56-1/4"
• Height (floor to vise): 37-7/16"
• Shipping Weight (may vary): 660 lbs.
• Optional Tooling
• Blade Guide Laser Light
• Universal Clamping Fixture
• Variable Speed Control
• Diagonal Vise Jaws
• Digital Quick Stop

Specifications

• Manufacturer: Scotchman
• SKU: 076030
• Shipping Method: LTL Freight
• Weight: 660 lb
• Dimensions: 25 × 45 × 60 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
