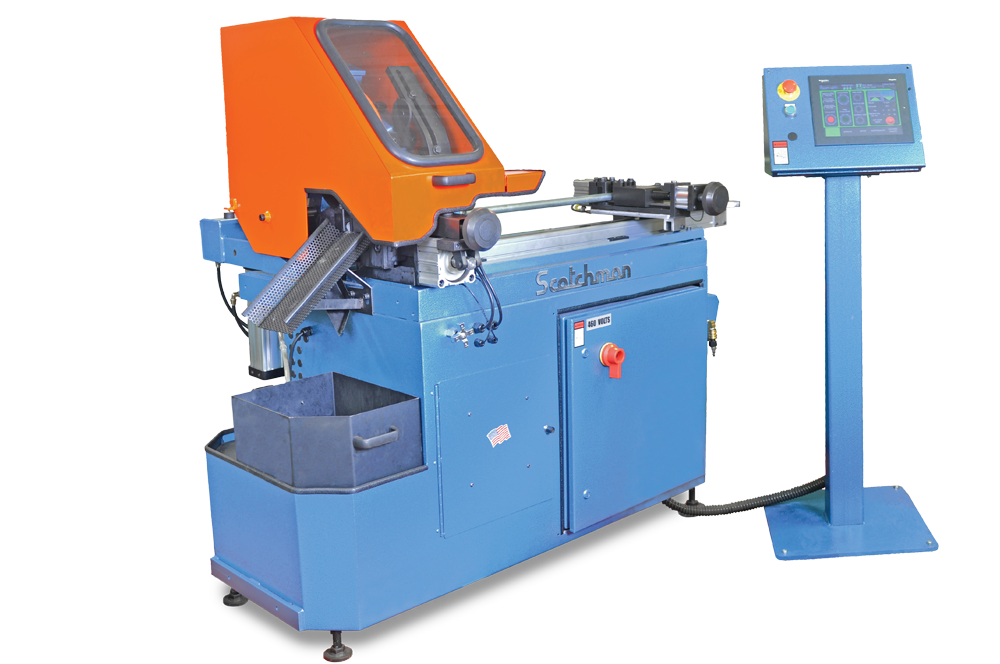

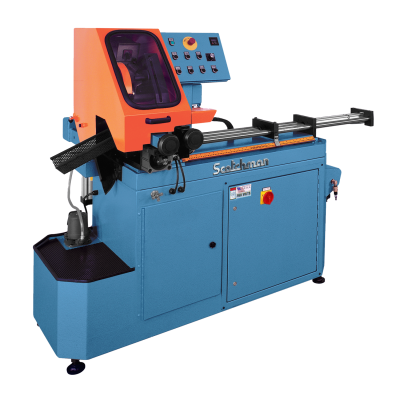

Scotchman CPO 315 HFA CNC 12.5″ Ferrous Hitch Feed Automatic 230V Circular Cold Saw 045012

Scotchman CPO 315 HFA CNC 12.5″ Ferrous Hitch Feed Automatic 230V Circular Cold Saw 045012 is a Scotchman product in the Cold Saws collection.

Product Details

• Cutting Speeds: Variable Speed 11 to 177 RPM
• Maximum Saw Blade Diameter: 315 mm
• Motor: 5 hp 230 Volt, 3 Phase
• Made in the USA with a 2-year parts warranty
• Features
• Fully automatic cycle
• Touch screen controls
• Precision CNC controlled
• Interlocking safety hood
• Emergency stop button
• Clamping both sides of blade–highest quality, burr-free cuts
• Blade guides for accurate tolerances
• Mist coolant lubrication system
• Adjustable stroke control on the saw head
• Adjustable down feed control on the saw head for feed rate
• Adjustable indexing feed speeds
• Program up to four separate cut lengths in each job
• 100 Program job storage
• 30" Single shuttle length (unlimited shuttles)
• Piece counter
• One saw blade
• One gallon coolant
• Complies with ANSI B11.10 safety standards
• Warranty: Two years on parts
• Made in USA
• Specifications
• Cutting Speeds: 5 hp Variable Speed 11 to 177 RPM
• Maximum Cutting Capacities (based on mild steel): Tubing Round 90°: Up to 3-1/2" Square 90°: Up to 3-1/8" x 3-1/8" Solid Round 90°: Up to 1-3/4" Square 90°: Up to 1-1/2" x 1-1/2"
• Tubing Round 90°: Up to 3-1/2" Square 90°: Up to 3-1/8" x 3-1/8"
• Round 90°: Up to 3-1/2"
• Square 90°: Up to 3-1/8" x 3-1/8"
• Solid Round 90°: Up to 1-3/4" Square 90°: Up to 1-1/2" x 1-1/2"
• Round 90°: Up to 1-3/4"
• Square 90°: Up to 1-1/2" x 1-1/2"
• Length Tolerance: ± 0.006" per index
• Squareness Tolerance: ± 0.002" per dia. inch
• Minimum Cut Length: 1/8"
• Maximum Cut Length: Unlimited
• Motor: 5 hp 230 Volt, Three Phase
• Air Pressure: 90 psi
• Arbor Bore Size: 40 mm
• Pin Spacing: 4/12/64
• Dimensions (L x W x H): 100" x 44" x 64"
• Shipping Weight (may vary): 1,800 lbs.

Specifications

• Manufacturer: Scotchman
• SKU: 045012
• Shipping Method: LTL Freight
• Weight: 1,800 lb
• Dimensions: 72 × 44 × 64 in
• Country of Origin: United States of America
• Warranty: 2 Years (Parts)
