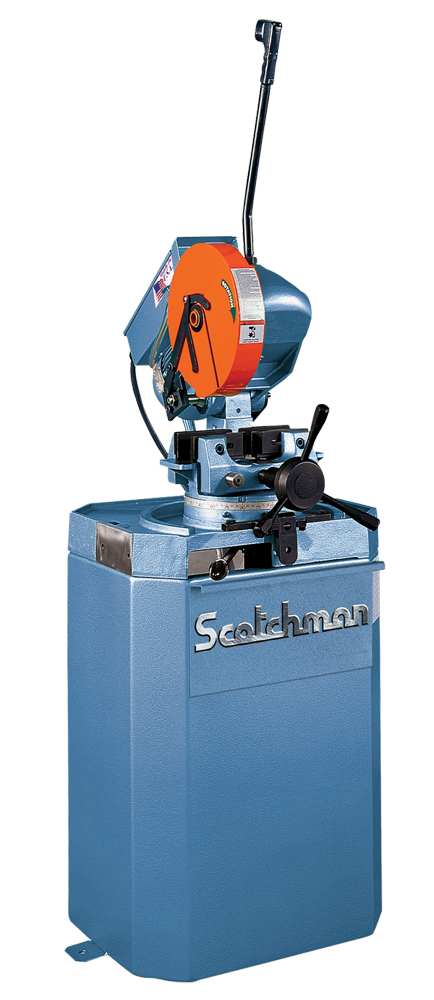

Scotchman CPO 275 220V Manual Single Phase Single Speed Circular Cold Saw 076580

Scotchman CPO 275 220V Manual Single Phase Single Speed Circular Cold Saw 076580 is a Scotchman product in the Cold Saws collection.

Product Details

• Maximum Diameter Blade: 275 mm
• Motor: 60 RPM, 220 Volt, 1 Phase
• Made in the USA with a 3-year parts warranty
• Features
• Manual double self-centering vise assures burr-free cuts
• Operator controlled trigger switch
• Miter locking device stops: 45 degree left, 90 degree and 45 degree right
• Capable of slotting
• Double reduction, hardened and ground worm and wheel gear box
• Chip drawer
• 7 Gallon flood coolant tank with pump
• One 250 mm diameter HSS blade
• One blade wrench
• One gallon coolant
• Complies with ANSI B11.10 safety standards
• Warranty: Three years on parts
• Made in USA
• Specifications
• Cutting Speeds: SS(Single Speed) – designed for 220v 1ph applications: 60 rpm
• Maximum Cutting Capacities (with 275 mm blade): Tubing: Round 90°: 3-3/8" Square 90°: 3" x 3" Rectangle 90°: 3" x 2-3/8" Round 45°: 2" Square 45°: 2" x 2" Rectangle 45°: 2" x 2" Solid Round 90°: 1-1/2" Square 90°: 1-1/2" x 1-1/2" Round 45°: 1" Square 45°: 1" x 1"
• Tubing: Round 90°: 3-3/8" Square 90°: 3" x 3" Rectangle 90°: 3" x 2-3/8" Round 45°: 2" Square 45°: 2" x 2" Rectangle 45°: 2" x 2"
• Round 90°: 3-3/8"
• Square 90°: 3" x 3"
• Rectangle 90°: 3" x 2-3/8"
• Round 45°: 2"
• Square 45°: 2" x 2"
• Rectangle 45°: 2" x 2"
• Solid Round 90°: 1-1/2" Square 90°: 1-1/2" x 1-1/2" Round 45°: 1" Square 45°: 1" x 1"
• Round 90°: 1-1/2"
• Square 90°: 1-1/2" x 1-1/2"
• Round 45°: 1"
• Square 45°: 1" x 1"
• Motor: 60 RPM, 220 Volt, Single Phase
• Arbor Bore: 32 mm
• Pin Spacing: 2/8/45
• Width: 21-7/8"
• Depth: 43-1/2"
• Height (not including feed handle): 53-1/4"
• Height (floor to vise): 36-1/8"
• Shipping Weight (may vary): 550 lbs.
• Optional Tooling
• 5' to 32' Material Supply Track

Specifications

• Manufacturer: Scotchman
• SKU: 076580
• Shipping Method: LTL Freight
• Weight: 550 lb
• Dimensions: 25 × 45 × 55 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
