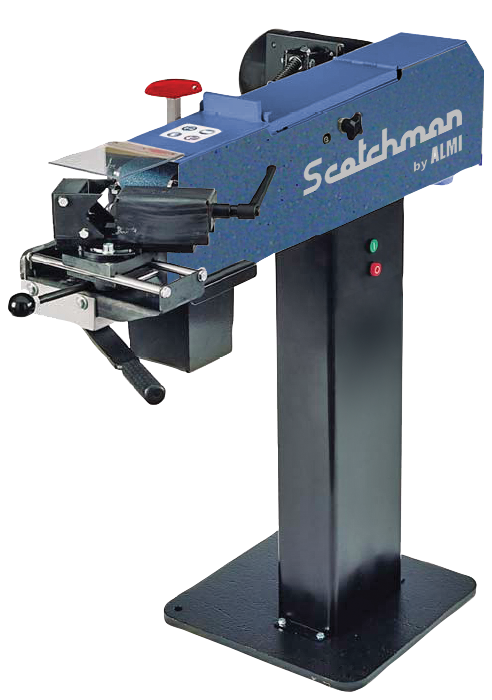

Scotchman AL100U-01 220V Single Phase Abrasive Tube and Pipe Grinder Notcher A040.00005

Scotchman AL100U-01 220V Single Phase Abrasive Tube and Pipe Grinder Notcher A040.00005 is a Scotchman product in the Notchers collection.

Product Details

• Grinding Capacity: 1/2" to 3" O.D
• Angle Range: Straight=90° to 30°
• Motor: 4.5 hp, 220 Volt, Single Phase
• Manufactured in the Netherlands with a 3-year parts warranty
• Description
• The AL100U-01 produces gap-free fits ready for welding, with minimal vibration. It is equipped with a hand lever feed handle & manual vise that can be adjusted right or left.
• Features
• Grinds notches of any desired angle from 90 degrees to 30 degrees in seconds
• Operated with hand lever feed handle and manual vise adjustment left and right
• Smooth operation with minimal vibration
• Heavy duty frame and base construction
• Mandrel centerline adjustment
• One vise holds all pipe and tube sizes
• Top-mounted deburring surface creates a multifunctional machine
• Easy setup with vise graduated in degrees
• 13 Mandrel sizes available to ensure a correct gap-free fit
• Supplied with 2 belts and two pipe mandrels (1-1/4" & 1-1/2")
• Tool-free belt and mandrel change over for easy transition
• Warranty: Three years on parts
• Manufactured in the Netherlands
• Specifications
• Profile Applications: All: Round, Square, Rectangle or Flat
• Belt: 4" x 78-3/4"
• Speed: 3,420 RPM
• Operation: Lever
• Dimensions (L x W x H): 57" x 45-1/4" x 25-1/2"
• Shipping Weight (may vary): 460 lbs
• Available Accessories
• Abrasive Belts (4”)
• Mandrels
• Back Gauge

Specifications

• Manufacturer: Scotchman
• SKU: A040.00005
• Shipping Method: LTL Freight
• Weight: 460 lb
• Dimensions: 60 × 50 × 25 in
• Country of Origin: Netherlands
• Warranty: 3 Years (Parts)
