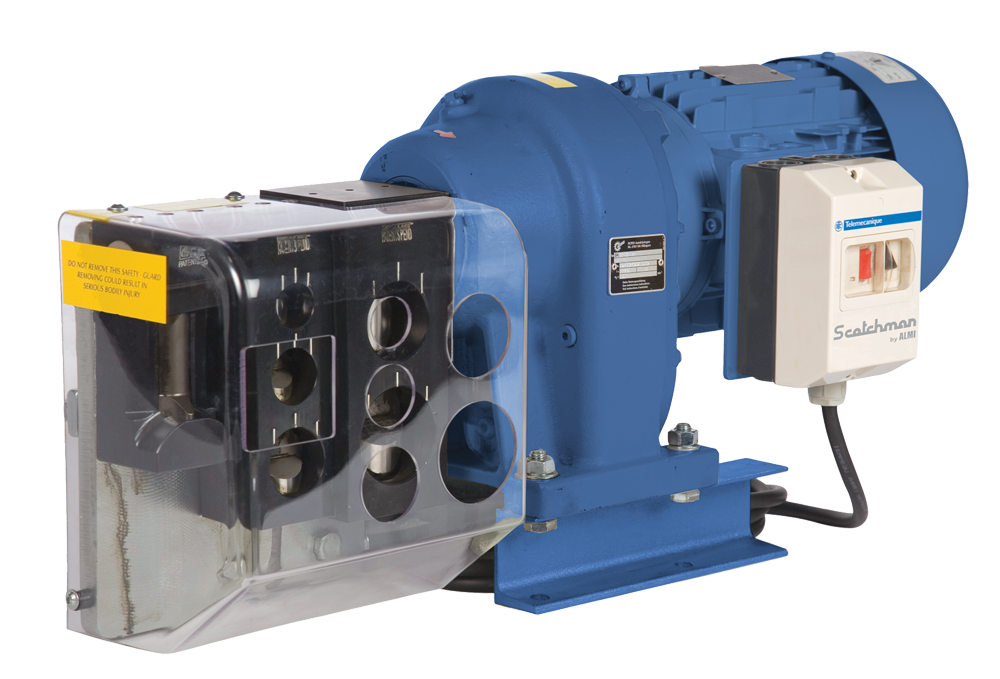

Scotchman AL1-2U 230V Three Phase Electric Tube and Pipe Notcher A030.00008

Scotchman AL1-2U 230V Three Phase Electric Tube and Pipe Notcher A030.00008 is a Scotchman product in the Notchers collection.

Product Details

• O.D. Pipe Sizes: 3/4", 1", 1-1/4", 1-1/2" and 2"; Schedule 40
• Includes vent notcher to quickly create a uniform vent-notch for galvanizing outflow
• Motor: 3-1/2 hp, 230 Volt, Three Phase
• Manufactured in the Netherlands with a 3-year parts warranty
• Description
• Can notch 3/4", 1", 1-1/4", 1-1/2" and 2" up to schedule 40 wall thickness; plus it's equipped with a vent notch to quickly create a uniform vent-notch for galvanizing outflow.
• Features
• Equipped to notch 3/4", 1", 1-1/4", 1-1/2" and 2" up to schedule 40 wall thickness
• Safety guards to surround and protect notching dies
• Electric operation
• Warranty: Three years on parts
• Manufactured in the Netherlands
• Specifications
• Max. Wall Thickness: 0.197" steel 0.118" stainless steel
• 0.197" steel
• 0.118" stainless steel
• Vent Notch: yes
• Profile Applications: Round Tube & Pipe
• Dimensions (L x W x H): 30" x 13-1/2" x 11-1/2"
• Shipping Weight: 230 lbs

Specifications

• Manufacturer: Scotchman
• SKU: A030.00008
• Shipping Method: LTL Freight
• Weight: 230 lb
• Dimensions: 30 × 20 × 15 in
• Country of Origin: Netherlands
• Warranty: 3 Years (Parts)
