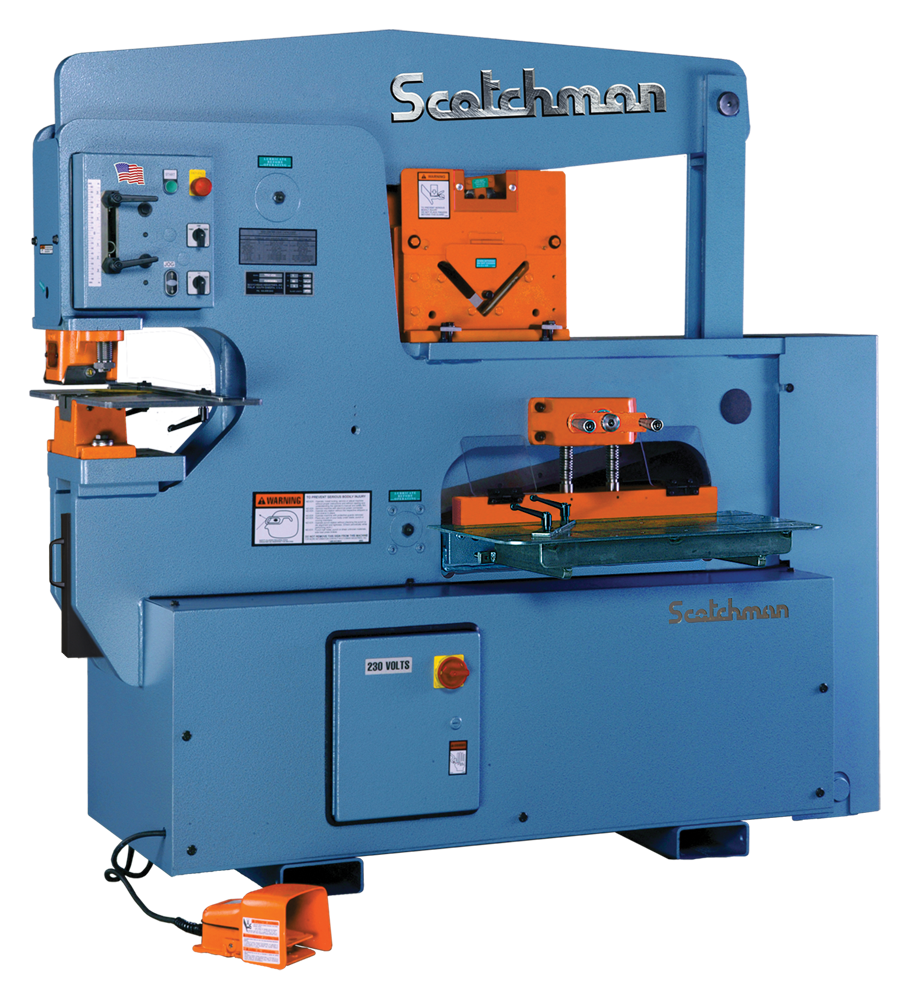

Scotchman 9012-24M 230V Three Phase 90 Ton Hydraulic Ironworker 030010

Scotchman 9012-24M 230V Three Phase 90 Ton Hydraulic Ironworker 030010 is a Scotchman product in the Ironworkers collection.

Product Details

• Punching Capacity: 90 ton 1-1/8" in 1"
• Hydraulics: 2,600 psi
• Motor: 5 hp, 230 Volt, 3 Phase
• Made in the USA with a 3-year parts warranty
• Features
• Single Operator, 4 Stations
• 90 Ton punch station
• Keyed punch ram for safety
• Punch gauging table with fence and scale
• Die holder complete with 2" die insert
• Punch nut with wrench & stripper
• One round punch & die: max. diameter 1-1/4"
• Jog control
• Adjustable electric stroke control with scale
• Electric remote foot pedal
• Angle shear
• Flat bar shear with 4-way reversible blade
• Shear table with miter fence
• Tool table work area
• Slug receptacle
• Two-stage hydraulic pump
• Electrical box supplied with emergency palm button and lock-out tag-out accommodations
• All guards necessary to comply with ANSI B11.5 safety standards
• Forklift accommodations
• Warranty: Three years on parts
• Made in USA
• Specifications
• Special Tooling: 4" Max. Dia.
• Throat Depth: 12"
• Flat Bar Shear: 24" Length 1" x 8" 3/4" x 12" 1/2" x 16" 1/4" x 24"
• 24" Length
• 1" x 8"
• 3/4" x 12"
• 1/2" x 16"
• 1/4" x 24"
• Saber Blade ( optional ): 1/2" x 22" 3/8" x 24"
• 1/2" x 22"
• 3/8" x 24"
• Angle Shear 90 degree: 6” x 6” x 1/2"
• Angle Shear 45 degree w/Tool: 3" x 3" x 3/8"
• Angle Shear 45 degree w/Bar Shear: 4" x 4" x 1/2"
• Brake 12": 50 ton
• Brake 24": 40 ton
• Open End Brake: Max. 1/4" x 5" [Flat or Angle Iron]
• Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2"
• Rectangle Notcher: 2" x 2-1/2" x 3/8"
• 90 degree V-Notcher: 6" x 6" x 5/16"
• Channel Shear: 2" to 6" adj.
• Unistrut Shear: Samples Required
• Rod Shear Round (max.): 9 Cavity – 1/4" to 1-1/4"
• Rod Shear Square (max.): 1 Cavity – 1/4" to 1"
• Square Tube Shear: 1/2" to 2" 12 gauge
• Picket Tool: 1/2", 3/4" & 1" 16 gauge
• Weld Coupon Bender (max.): 2" wide x 3/8"
• Offset Die Holder: Max. 40 ton
• Strokes per Minute in Light Material: 45 spm [Punch Station]
• Strokes per Minute in Heavy Material: 24 spm [Punch Station]
• Motor: 5 hp, 230 Volt, Three Phase
• Dimensions: L: 76-3/4" x W: 31" x H: 71-1/2"
• Shipping Weight (may vary): 4,204 lbs.
• Optional Tooling
• Rod Shear
• Pipe Notcher
• Picket Tool
• Unistrut Shear
• LED Lights
• Weld Coupon Bender
• Tool Table Extension With Punch & Die Storage Drawer
• Punch Table Extension
• Custom Built Tool Examples
• 24" x 5' Conveyor with Angle Iron Support
• Multi-Loc Punch Gauging Table
• Brake Table with Scale & Squaring Arm
• Hydraulic Hold Down
• Unequal Leg Angle Shear Blades
• Offset Die Holder
• Urethane Stripper
• Channel Shear
• 12" Brake
• Laser Light – Bar Shear
• 48" Back Gauge
• 90° V-Notcher
• Rectangle Notcher
• Angle Shear Miter Guide
• Open End Brake
• Economy Punch & Die Package
• Deluxe Punch & Die Package
• 24" Brake
• Square Tube Shear
• Brake Length Gauge with Scale

Specifications

• Manufacturer: Scotchman
• SKU: 030010
• Shipping Method: Flatbed
• Weight: 4,204 lb
• Dimensions: 76 × 26 × 70 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
