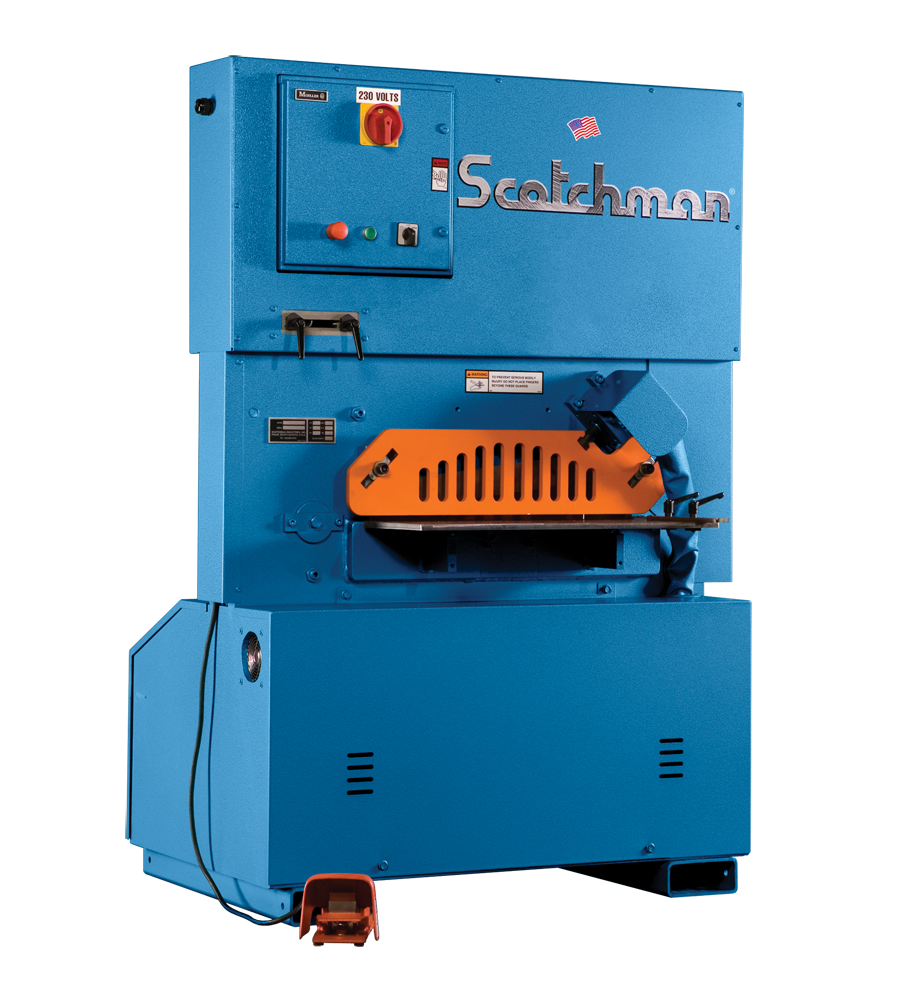

Scotchman 220V Single Phase Flat Bar ShearMaster 610 017920

Scotchman 220V Single Phase Flat Bar ShearMaster 610 017920 is a Scotchman product in the Shears collection.

Product Details

• Shearing Capacity: 1" x 12", 3/4" x 16", or 1/2" x 24"
• Strokes Per Minute: Full Stroke – 10, Half Stroke – 17
• Motor: 10 hp, 220 Volt, 1 Phase
• Made in the USA with a 3-year parts warranty
• Features
• 24" Flat bar shear with 4-way reversible blades
• Shear table with miter fence
• Hydraulic hold-down
• Electric back gauge
• Electric stroke control
• Electric foot pedal
• Two-stage hydraulic pump
• Electrical box supplied with emergency palm button and lock-out tag-out accommodations
• All guards necessary to comply with ANSI B11.5 safety standards
• Forklift accommodations
• Warranty: Three years on parts
• Made in the USA
• Specifications
• Shearing Capacity: 1" x 12" 3/4" x 16" 1/2" x 24"
• 1" x 12"
• 3/4" x 16"
• 1/2" x 24"
• Full Stroke – 10
• Half Stroke – 17
• Motor: 10 hp, 220 Volt, Single Phase
• Dimensions (L x W x H): 49" x 37-3/4" x 70"
• Shipping Weight (may vary): 3,065 lbs
• Optional Tooling
• LED Lights
• 24" x 5' Roller Conveyor

Specifications

• Manufacturer: Scotchman
• SKU: 017920
• Shipping Method: LTL Freight
• Weight: 3,100 lb
• Dimensions: 35 × 50 × 70 in
• Country of Origin: United States of America
• Warranty: 3 Years (Parts)
