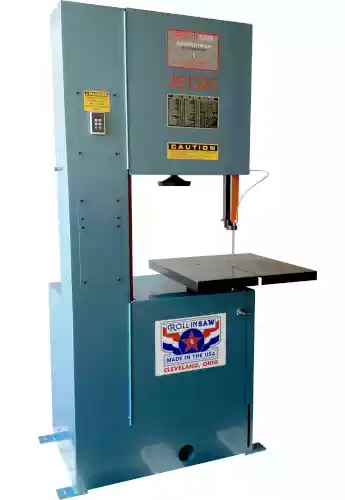

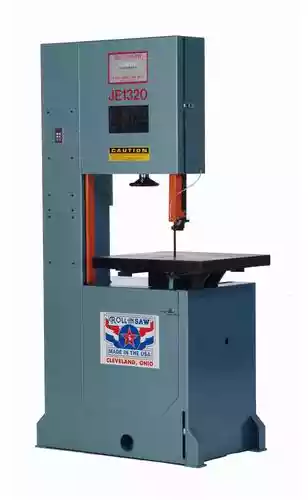

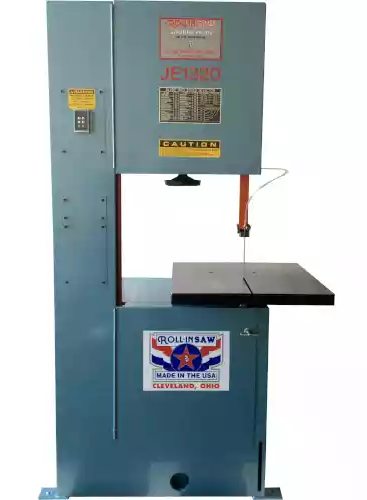

Roll-In Saw Journeyman 440V Three Phase Vertical Bandsaw JE1320

Roll-In Saw Journeyman 440V Three Phase Vertical Bandsaw JE1320 is a Roll-In Saw product in the Band Saws collection.

Product Details

• Cutting Capacity at 90°: Round: 13" Rectangle: 20" x 13"
• Throat: 20”
• Table: Precision Ground Steel Table: 24” x 24 ¼”
• Motor: 2HP, 440V, 60-cycle, three-phase
• Description
• “The Journeyman” provides the strength and agility to make straight or detailed cuts on 13" material. This saw is designed to provide you decades of service. Extend the life of the saw blade by utilizing the chip blower; adjusting the blade speed with the digital keypad; or by using the optional saw blade welder, grinder, & shear
• Features
• Accurately control blade speed with the on-board digital inverter drive
• Adjusto-Blok® guides for 1/4" to 3/4" blade widths
• Optional saw blade welder, grinder, and shear for longer saw blade life
• Specifications
• Feed System: N/A
• Blade Travel: N/A
• Miter Cut Angle Range: 0° – 45° **
• Bevel Cut Angle Range: N/A
• Capacity Under Guides: 13”
• Blade Size (Ships with Saw): 3/4" Width x 12' 10" Length .035 Thick (bi-metal)
• Blade Size (Accepted Widths): 1/4”, 3/8”, 1/2”, 5/8” and 3/4” (“Adjusto-Blok®” works for each blade width)
• Blade Speeds: 70 – 500 sfpm (digital speed control)
• Table Height: 40" From Floor (No Casters)
• Saw Dimensions: 46” Width x 80” Height x 30” Length
• Shipping Dimensions: 48” Width x 86” Height x 38” Length
• Shipping Weight: 750 lbs.
• Optional Equipment
• Welder, Grinder, & Shear

Specifications

• Manufacturer: Roll-In Saw
• SKU: JE1320 440V
• Shipping Method: LTL Freight
• Weight: 750 lb
