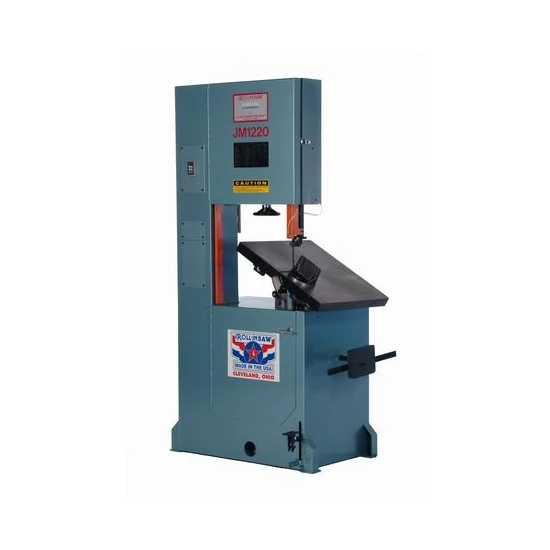

Roll-In Saw Journeyman 1220 220V Three Phase Vertical Bandsaw JM1220

Roll-In Saw Journeyman 1220 220V Three Phase Vertical Bandsaw JM1220 is a Roll-In Saw product in the Band Saws collection.

Product Details

• Gravity Feed System
• Cutting Capacity at 90°: Round: 12" Rectangle: 20" x 12"
• Throat: 20”
• Motor: 2HP, 220V, 60-Cycle, Three-Phase
• Description
• From the digital speed control to the calibrated gravity fed tilt-table, The "Journeyman 1220” sets the standard for versatility. The saw comes standard with variable speed control, tilt-table, "Adjusto-Blok®" blade guides, blade guard, chip-clearing funnel, chip blower, and angle plate–making this a perfect precision-cutting machine for tool & die, R&D, and model shops.
• Features
• The multifaceted Journeyman Tilt Table allows users to easily make contour, profile, rip, and complex angle cuts
• Quickly make specialty cuts with the easily adjustable table that tilts up to 45°
• Improves efficiency through a dual-sourced weighted/hydraulic table feed
• Fast & accurate all-purpose saw, with the benefits of both a vertical and horizontal saw
• Specifications
• Feed System: Gravity Feed
• Blade Travel: 11" (Table Travels, Not the Blade)
• Miter Cut Angle Range: 0° – 45° **
• Bevel Cut Angle Range: 0° – 45° **
• Capacity Under Guides: 12
• Blade Size (Ships with Saw): 3/4" Width x 12' 10" Length .035 Thick (Bi-Metal)
• Blade Size (Accepted Widths): 1/4”, 3/8”, 1/2”, 5/8” and 3/4” (“Adjusto-Blok®” Works For Each Blade Width)
• Blade Speeds: 70 – 500 sfpm (Digital Speed Control)
• Table: Tilting Precision Ground Steel Table: 24” x 24”
• Table Height: 37" From Floor (No Casters)
• Saw Dimensions: 46" Width x 80" Height x 30" Length
• Shipping Dimensions: 48" Width x 86" Height x 38" Length
• Shipping Weight: 1,000 lbs
• Optional Equipment

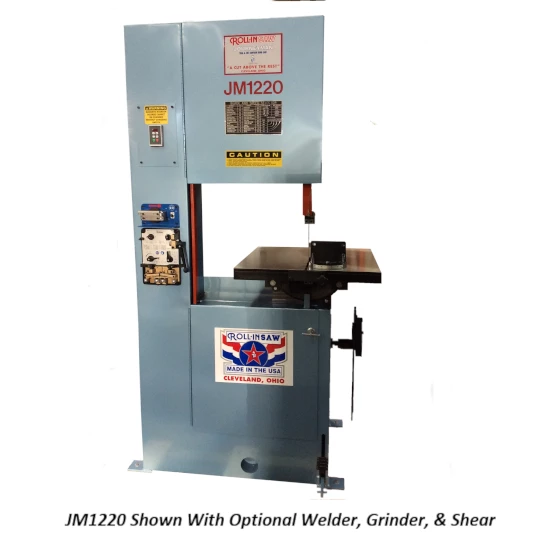

• Welder, Grinder, & Shear

Specifications

• Manufacturer: Roll-In Saw
• SKU: JM1220 220V
• Shipping Method: LTL Freight
• Weight: 1,000 lb
