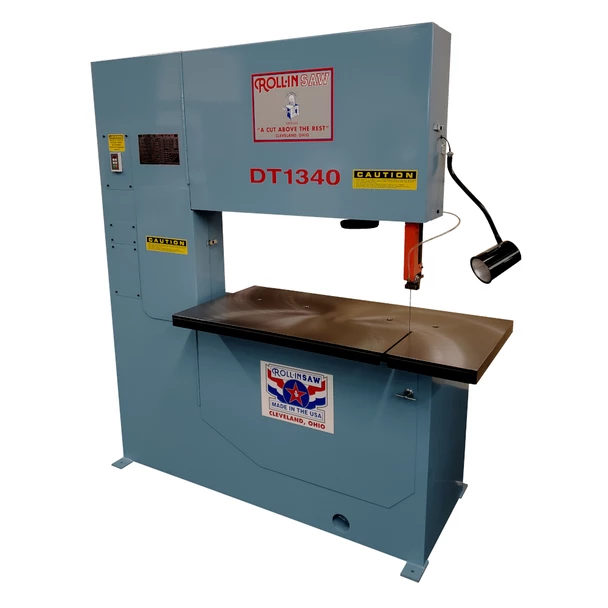

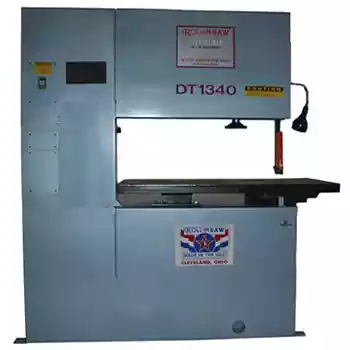

Roll-In Saw 440V Three Phase Deep Throat Journeyman DT1340

Roll-In Saw 440V Three Phase Deep Throat Journeyman DT1340 is a Roll-In Saw product in the Band Saws collection.

Product Details

• Cutting Capacity at 90°: Round: 13" Rectangle: 40" x 13”
• Throat: 40"
• Table: Precision Ground Steel Table: 24" x 50 1/4"
• Motor: 2 HP, 440V three-phase
• Description
• “The Deep Throat Journeyman” is designed for large jobs that require large levels of complexity and accuracy. This saw has the strength of Roll-In’s other Journeyman saws to make straight or detailed cuts with additional throat clearance. The wide table and 40" throat allows you to control wide pieces of material as you cut. Extend the life of the saw blade by utilizing the chip blower; adjusting the blade speed with the digital keypad; or by using the optional saw blade welder, grinder, & shear
• Features
• Double the throat distance of our other Journeyman models
• Adjusto-Blok® guides for 1/4" to 3/4" blade widths
• Optional saw blade welder, grinder, and shear for longer saw blade life
• Accurately control blade speed with the on-board digital inverter drive
• Specifications
• Feed System: N/A
• Blade Travel: N/A
• Cutting Capacity at 90°: Round: 13" Rectangle: 40" x 13" (Confirm)
• Miter Cut Angle Range: 0° – 45° **
• Bevel Cut Angle Range: N/A
• Clearance: 13" Table to guide
• Blade Size (Ships with Saw): 3/8" Width x 15' 3" Length 10/14 Variable tooth .035 Thick (bi-metal)
• Blade Size (Accepted Widths): 1/4”, 3/8”, 1/2”, 5/8” and 3/4” (“Adjusto-Blok®” guide roller works for each blade width)
• Blade Speeds: 70 – 500 sfpm (digital speed control)
• Table Height: 39" From Floor (No Casters)
• Saw Dimensions: 76” Width x 80” Height x 30" Length
• Shipping Dimensions: 47" Width x 86" Height x 96" Length
• Shipping Weight: 1,050 lbs
• Optional Equipment
• Welder, Grinder, & Shear

Specifications

• Manufacturer: Roll-In Saw
• SKU: DT1340 440V
• Shipping Method: LTL Freight
• Weight: 1,050 lb
• Dimensions: 96 × 47 × 86 in
