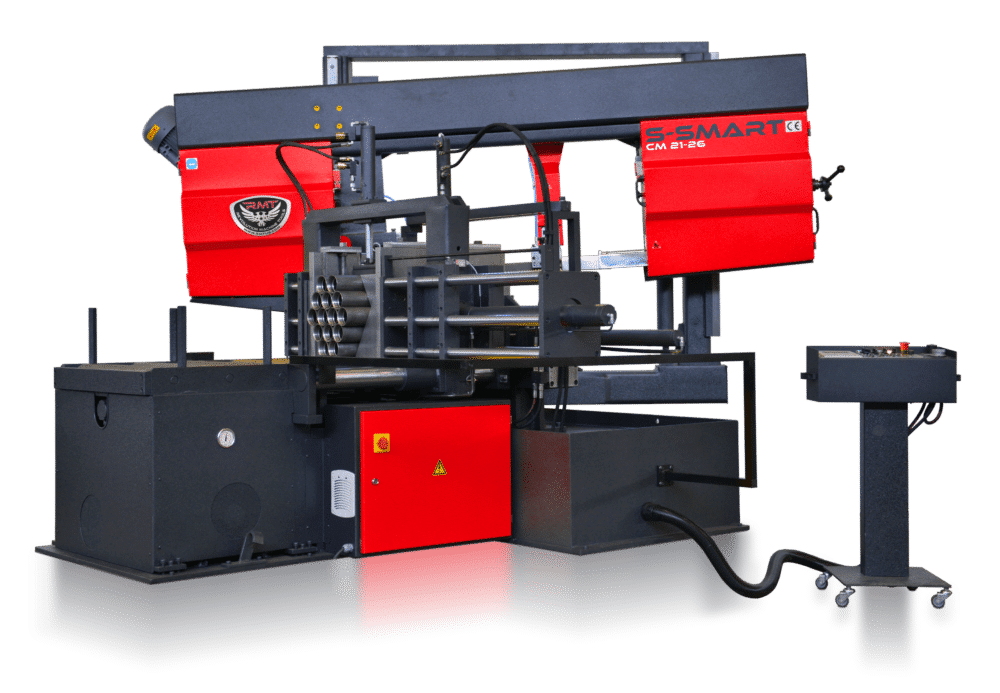

Revolution Machine Tools 7.5HP Automatic Column Type Single Miter Band Saw S-SMART CM 21-26

Revolution Machine Tools 7.5HP Automatic Column Type Single Miter Band Saw S-SMART CM 21-26 is a Revolution Machine Tools product in the Band Saws collection.

Product Details

• Cutting Speeds: 65- 328 ft/min
• Band Dims.: 236.2 x 1.61 x 0.051”
• Main Motor: 7.5 HP
• Capacity: 0°, 30°, 45°, 60°
• Features
• Control panel NC
• Blade brush
• Hydraulic vice
• Hydraulic feeding vice
• Security switch
• Siti heavy duty gearbox
• Infinite variable speed inverter
• Sensitive pressure control
• Hydromechanical blade tension
• Coolant pump
• Linear guide rails
• Optical saw height adjustment
• Proximity switch for sensing blade slippage
• Specifications
• Capacity at 0° Round: 21.3" (540 mm) Flat (H x W): 21.3" x 26.4" (540 x 670 mm) Square: 21.3" (540 mm)
• Round: 21.3" (540 mm)
• Flat (H x W): 21.3" x 26.4" (540 x 670 mm)
• Square: 21.3" (540 mm)
• Capacity at 30° Round: 21.3" (540 mm) Flat (H x W): 21.3" x 23.6" (540 x 600 mm) Square: 21.3" (540 mm)
• Flat (H x W): 21.3" x 23.6" (540 x 600 mm)
• Capacity at 45° Round: 20.1" (510 mm) Flat (H x W): 21.3" x 17.7" (540 x 450 mm) Square: 17.7" (450 mm)
• Round: 20.1" (510 mm)
• Flat (H x W): 21.3" x 17.7" (540 x 450 mm)
• Square: 17.7" (450 mm)
• Capacity at 60° Round: 10.6" (270 mm) Flat (H x W): 21.3" x 9.8" (540 x 250 mm) Square: 9.8" (250 mm)
• Round: 10.6" (270 mm)
• Flat (H x W): 21.3" x 9.8" (540 x 250 mm)
• Square: 9.8" (250 mm)
• Cutting Speeds: 65- 328 ft/min (20- 100 m/min)
• Band Dims.: 236.2 x 1.61 x 0.051” (6000 x 41 x 1.3 mm)
• Main Motor: 7.5 HP (5.5 kW)
• Hydraulic Motor: 1.5 HP (1.1 kW)
• Weight: 8,466 lbs. (3,840 kg)
• Machine Dims. (L x W x H): 123" x 93" x 85" (3100 mm x 2350 mm x 2150 mm)
• Options
• Hydraulic blade tension
• Hydraulic top clamping
• Dropsa air/oil clean lubrication system
• Micro spray cooling
• 10ft roller table
• 10ft motorized roller table

Specifications

• Manufacturer: Revolution Machine Tools
• SKU: S-SMART CM 21-26
• Shipping Method: Flatbed
• Weight: 8,666 lb
• Dimensions: 128 × 98 × 90 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
