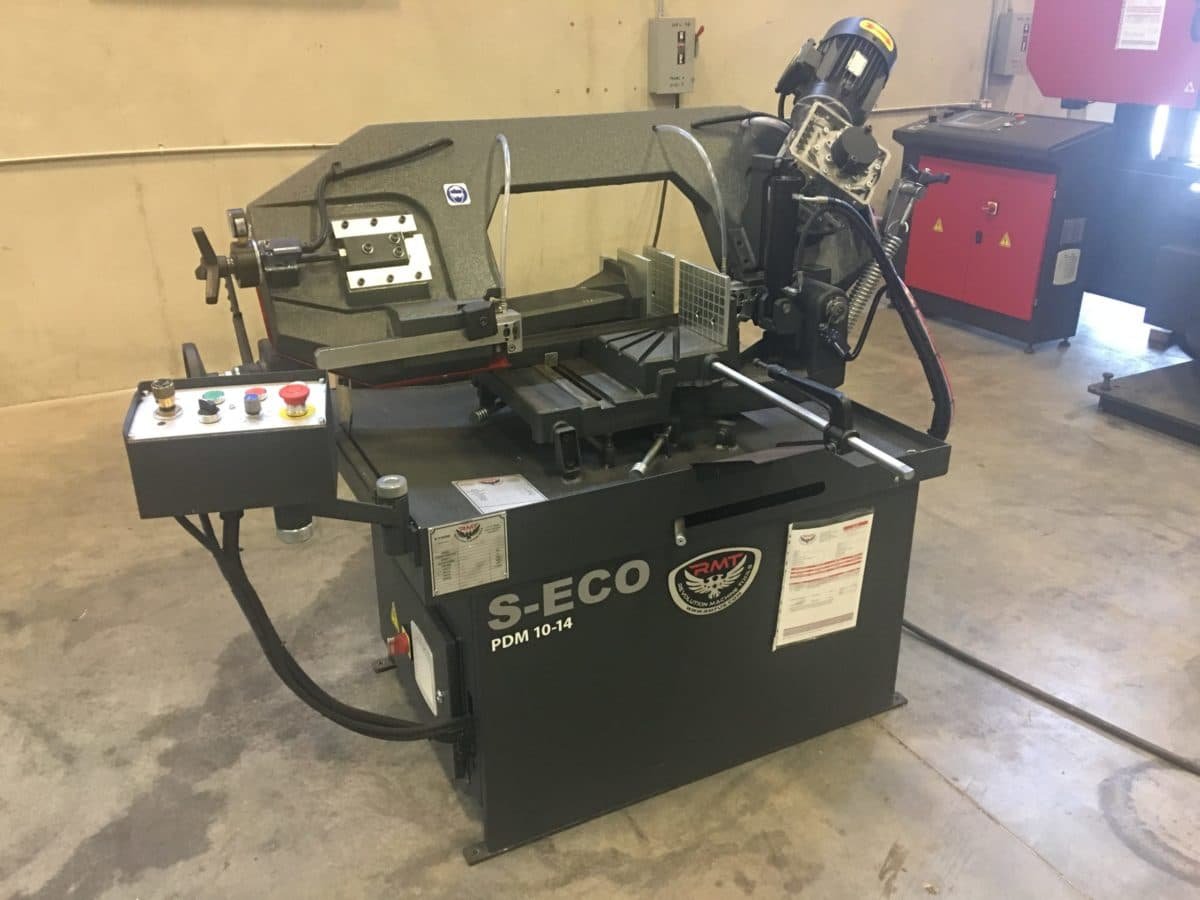

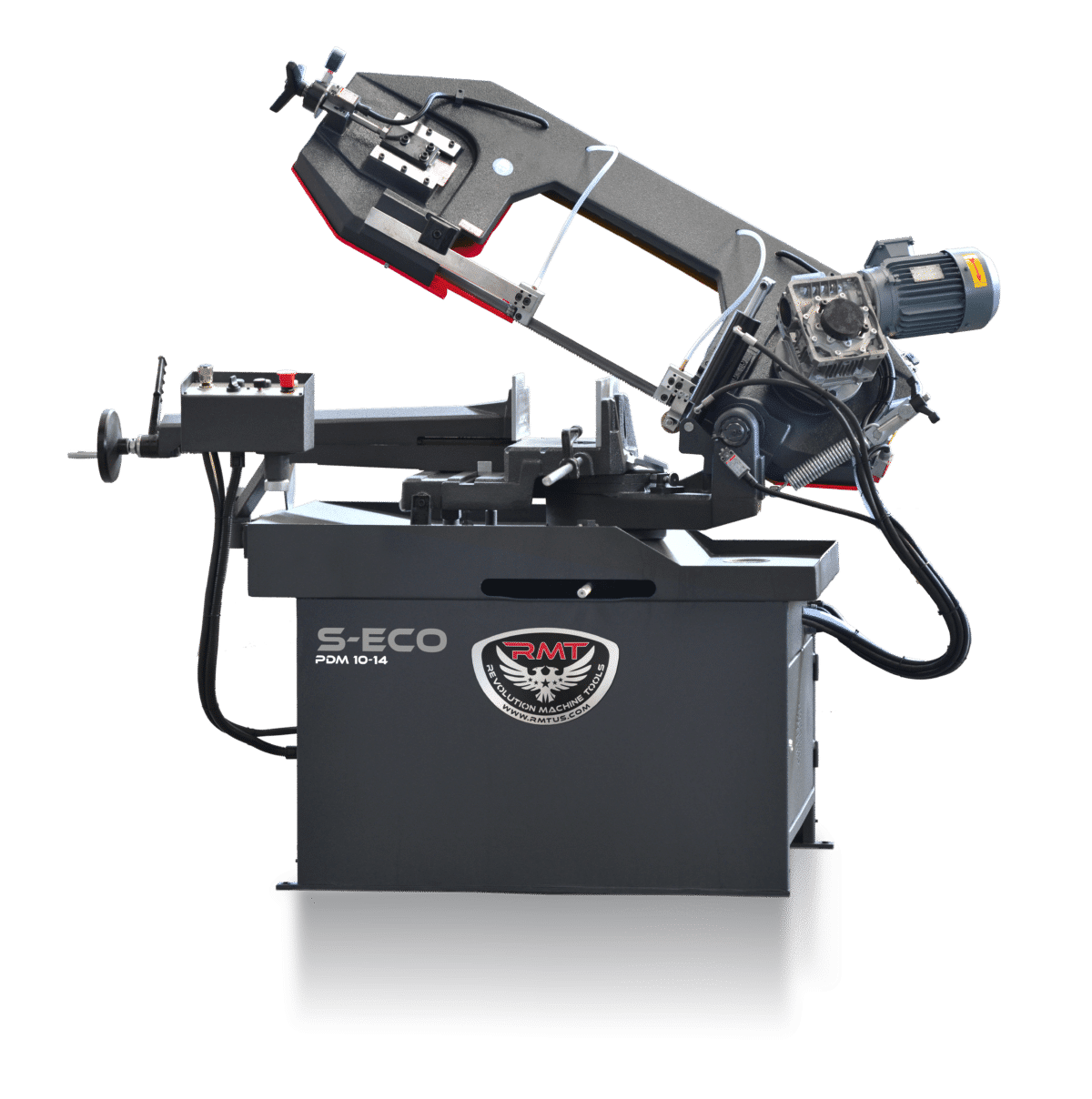

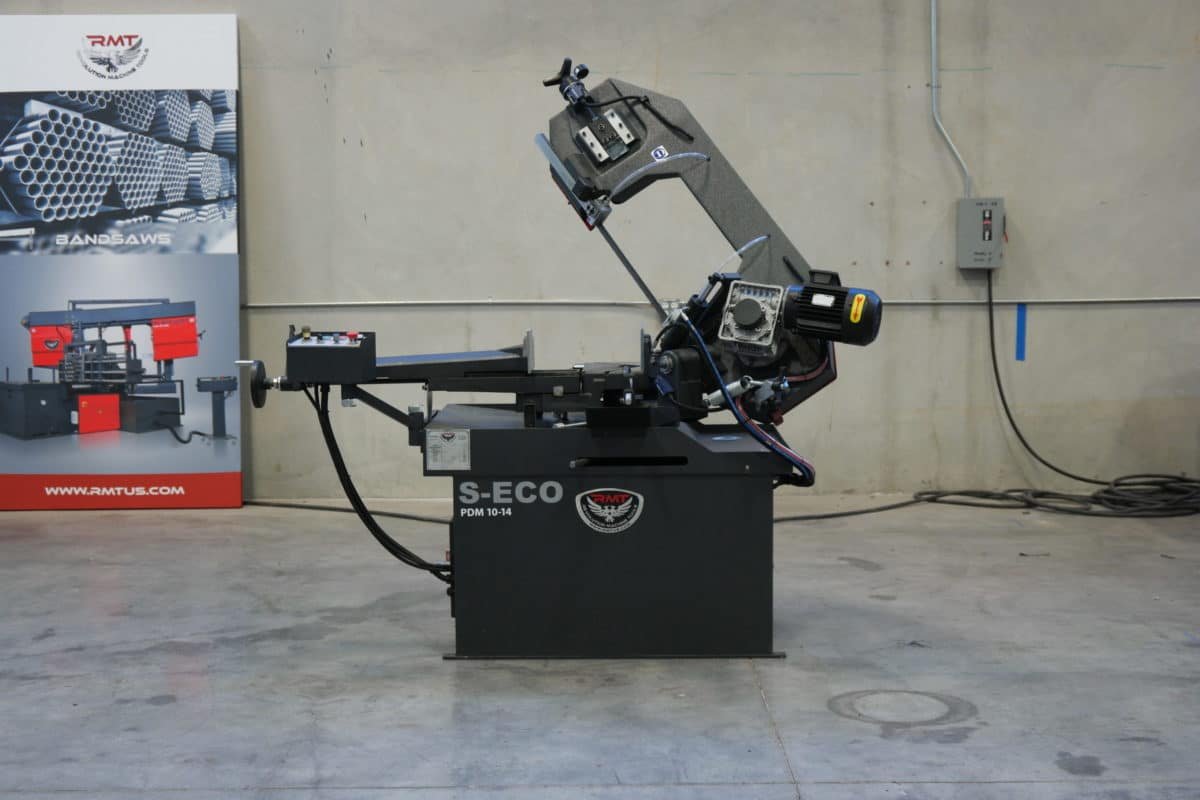

Revolution Machine Tools 2HP Manual Pivot Type Double Miter Band Saw S-ECO PDM 10-14

Revolution Machine Tools 2HP Manual Pivot Type Double Miter Band Saw S-ECO PDM 10-14 is a Revolution Machine Tools product in the Band Saws collection.

Product Details

• Cutting Speeds: 65- 328 ft/min
• Band Dims.: 124" x 1" x 0.035”
• Main Motor: 2 HP
• Capacity: 0°, 45°, 60°, -45°
• Description
• The Revolution Machine Tools S-ECO PDM 10-14 Manual Pivot Type Double Miter Band Saw has been designed to give a low-cost compact and rugged machine, constructed in heavy gauge steel. It offers a strong rigid saw frame, providing a high degree of accuracy while cutting. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. These models can cope with most types of material. Blade guides with rollers and carbide pads provide precise support for the blade. Thermal overload and no-volt release are a standard feature, and the machine automatically switches off at the end of the cut. Bi-Metal sawblade and material support stand are supplied as standard.
• Features
• Control Panel
• Blade Brush
• Material Length Stop
• Security Switch
• Siti Heavy Duty Gearbox
• Hydromechanical Blade Tension
• Coolant Pump
• Infinite variable speed inverter
• Specifications
• Capacity at 0° Round: 10.6" (270 mm) Flat (H x W): 10" x 14" (250 x 360 mm) Square: 10" (270 mm)
• Round: 10.6" (270 mm)
• Flat (H x W): 10" x 14" (250 x 360 mm)
• Square: 10" (270 mm)
• Capacity at 45° Round: 9.4" (240 mm) Flat (H x W): 7.8" x 10.6" (200 x 270 mm) Square: 6.7" (170 mm)
• Round: 9.4" (240 mm)
• Flat (H x W): 7.8" x 10.6" (200 x 270 mm)
• Square: 6.7" (170 mm)
• Capacity at 60° Round: 5.9" (150 mm) Flat (H x W): 3.9" x 5.9" (100 x 150 mm) Square: 3.9" (100 mm)
• Round: 5.9" (150 mm)
• Flat (H x W): 3.9" x 5.9" (100 x 150 mm)
• Square: 3.9" (100 mm)
• Capacity at -45° Round: 9.4" (210 mm) Flat (H x W): 7.8" x 10.6" (210 x 270 mm) Square: 6.7" (180 mm)
• Round: 9.4" (210 mm)
• Flat (H x W): 7.8" x 10.6" (210 x 270 mm)
• Square: 6.7" (180 mm)
• Cutting Speeds: 65- 328 ft/min (20- 100 m/min)
• Band Dims.: 10'4" x 1" x 0.035" (3160 x 27 x 0.9 mm)
• Main Motor: 2 HP (1.5 kW)
• Hydraulic Motor: –
• Weight: 1,049 lbs. (476 kg)
• Machine Dims. (L x W x H): 69” x 31” x 62” (1730 mm x 770 mm x 1550 mm)
• Options
• Dropsa air/oil clean lubrication system
• Single phase power
• Micro mist cooling system
• Stand
• 4ft Roller Table
• 10ft Roller Table
• 10ft Motorized Roller Table
• 5 Bi-Metal Blade Startup Package
• 5 Premium Quality Carbide Blade Startup Package
• S-ECO Manual Power Options 1Ph – 230V – 60Hz 3Ph – 230V – 60Hz 3Ph – 460V – 60Hz
• 1Ph – 230V – 60Hz
• 3Ph – 230V – 60Hz
• 3Ph – 460V – 60Hz

Specifications

• Manufacturer: Revolution Machine Tools
• SKU: S-ECO PDM 10-14
• Shipping Method: LTL Freight
• Weight: 1,249 lb
• Dimensions: 74 × 36 × 67 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
