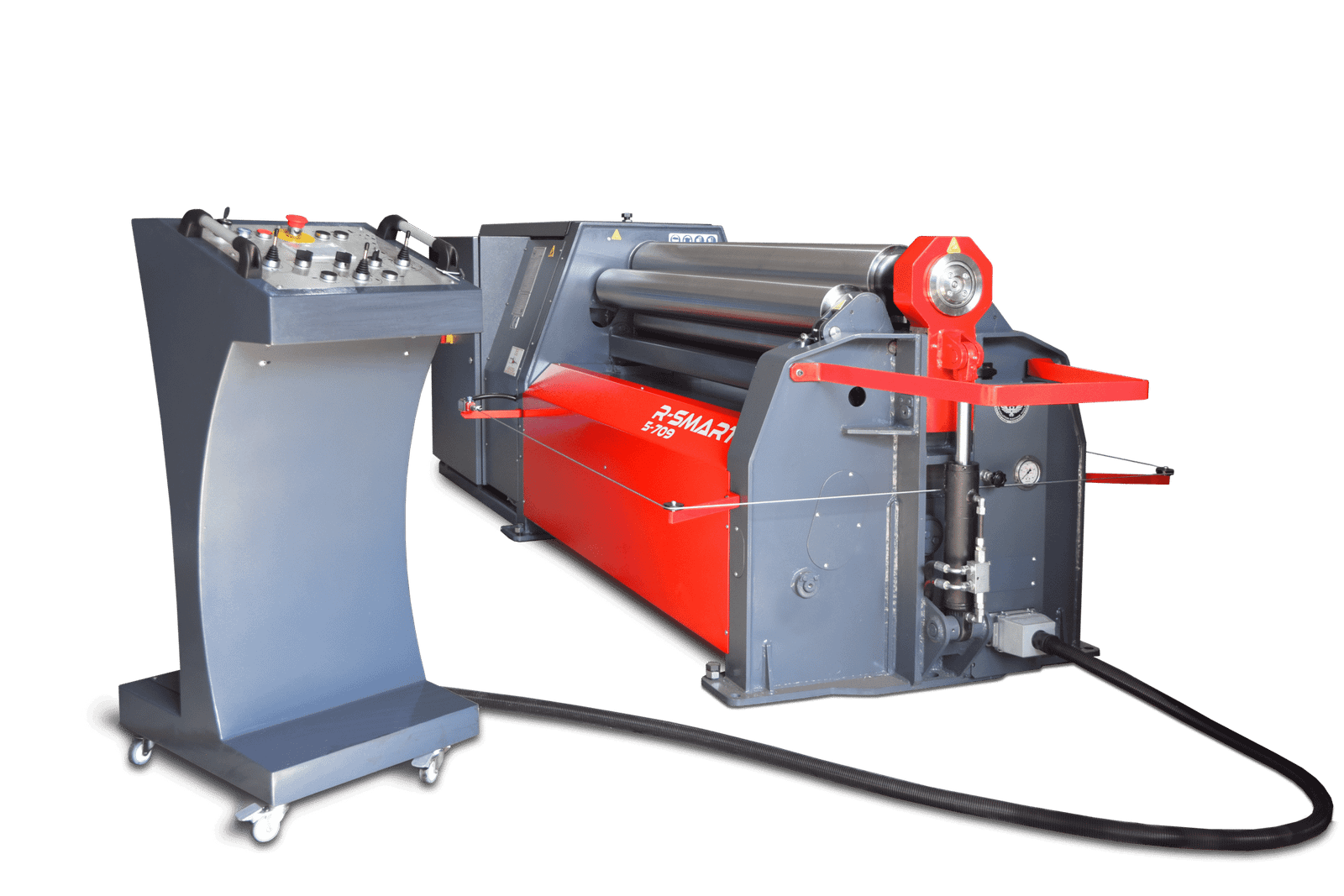

Revolution Machine Tools 15HP Hydraulic Planetary Type Four Roll Bending Machine R-SMART 10-906

Revolution Machine Tools 15HP Hydraulic Planetary Type Four Roll Bending Machine R-SMART 10-906 is a Revolution Machine Tools product in the Roll Benders collection.

Product Details

• Bending Length: 122”
• Top Roll: 9.06”
• Bottom Roll: 8.27”
• Side Rolls: 7.48”
• Description
• The R-SMART Series 4 roll plate rolls are developed specifically for the most demanding applications. Achieve obtainable production speeds that have never been realized before. Available with NC and CNC applications.
• Specifications
• Minimum Internal Diameter Ødx1,5 Pre-Bending Capacity: 1/4” Ødx3 Bending Capacity: 5/16” Ødx5 Bending Capacity: 3/8”
• Ødx1,5 Pre-Bending Capacity: 1/4”
• Pre-Bending Capacity: 1/4”
• Ødx3 Bending Capacity: 5/16”
• Bending Capacity: 5/16”
• Ødx5 Bending Capacity: 3/8”
• Bending Capacity: 3/8”
• Max. Pass Through: 1-3/16”
• Machine Dims. (L x W x H): 193” x 46” x 47”
• Working Height: 33”
• Width of Side Support: 27”
• Weight: 12,787 lbs.
• Motor Power: 15 HP
• Hydraulic Tank Capacity: 42 Gal
• Options
• Min. Additional Top Roll Diameter: 7.87”

Specifications

• Manufacturer: Revolution Machine Tools
• SKU: R-SMART 10-906
• Shipping Method: Flatbed
• Weight: 12,987 lb
• Dimensions: 198 × 51 × 52 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
