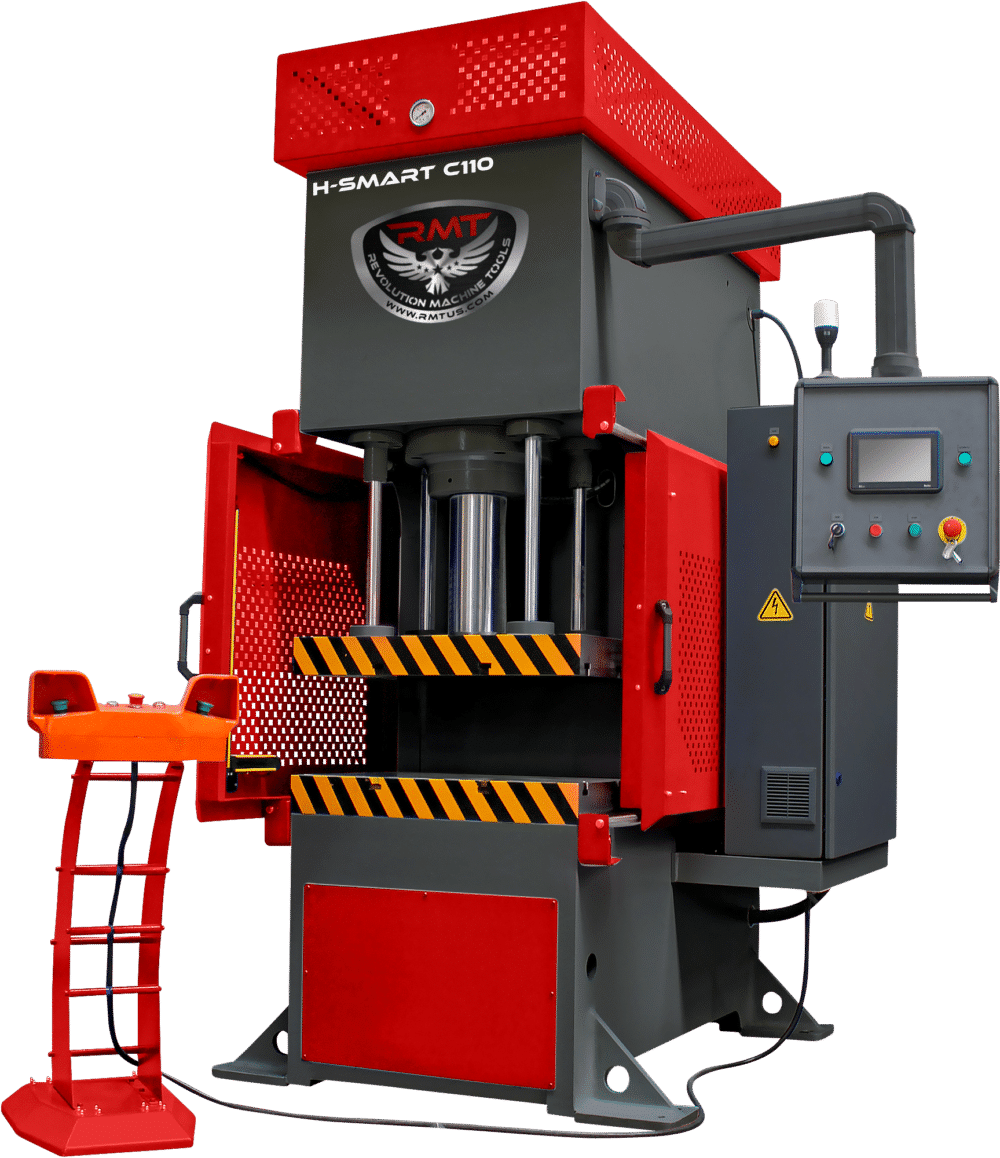

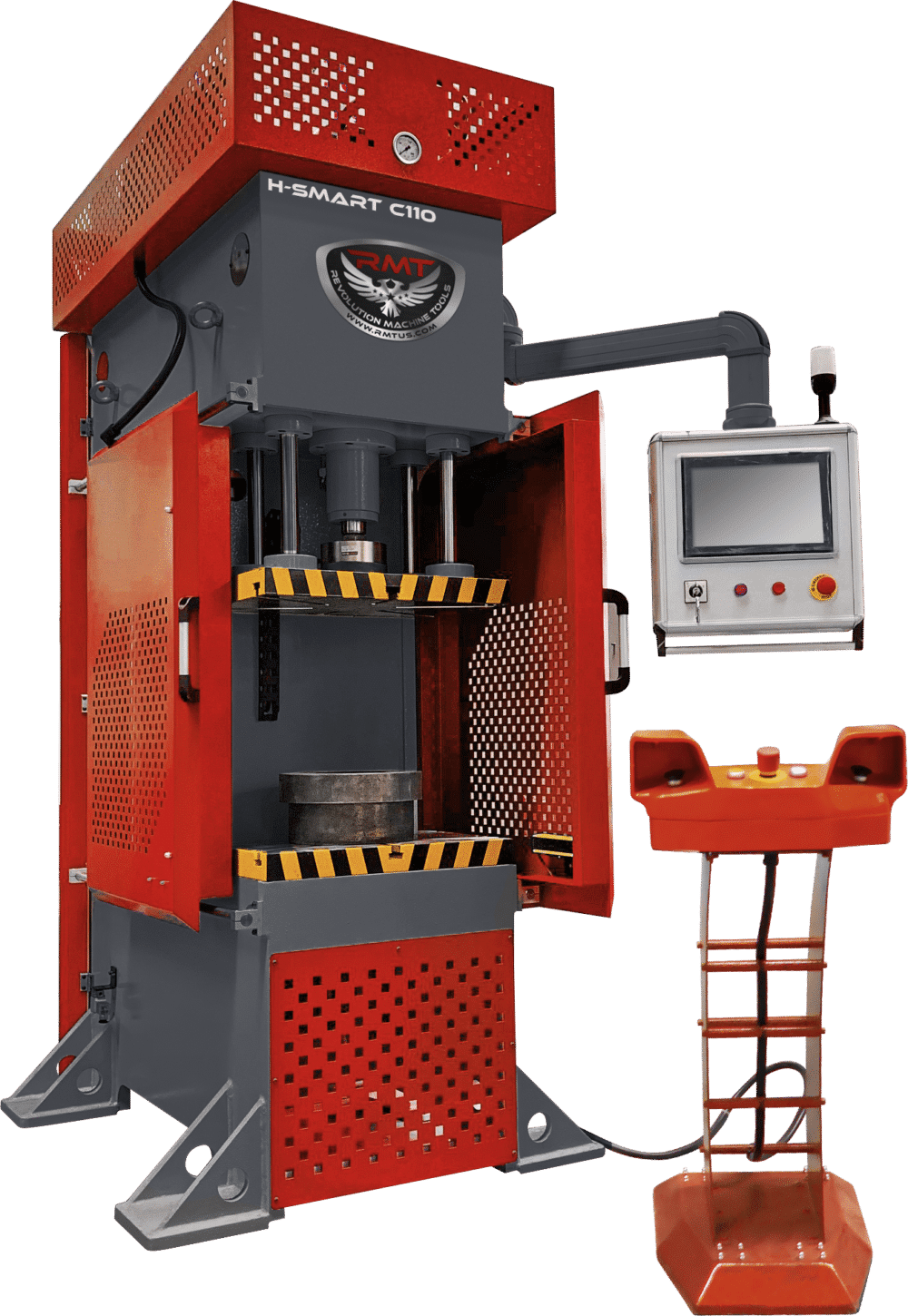

Revolution Machine Tools 15HP 110 Ton C-Frame Hydraulic Deep Drawing Press H-SMART C110

Revolution Machine Tools 15HP 110 Ton C-Frame Hydraulic Deep Drawing Press H-SMART C110 is a Revolution Machine Tools product in the C-Frame Presses collection.

Product Details

• Daylight: 20”
• Stroke: 16”
• Pump: 7 Gallons
• Open Height: 4”
• Description
• RMT C type deep drawing presses, which are produced up to 275 Tons capacity, can be customized and made up to a certain size of a table depending on the customer’s requirements. The frame is in the form of a C, and because of its shape, the space in the frame increases and this causes the frame to flex. The C type presses can be used to bend, hole punch, cut, and straighten according to die set used.
• This type of press is preferred for deep drawing processes with small die sets, as it takes up less space in production. In addition, the ejector roller placed in the top table for the work makes the product easier and quicker to remove after the drawing process is finished.
• High precision processed frame and table provide their customers to receive precise products in their production.
• Features
• Chrome plated cylinder
• Steel welded frame
• Servo hydraulic system
• HMI touch screen control panel
• Safety cover and light barrier
• Two hand button control
• Adjustable variable pressure on HMI touch screen control panel
• Adjustable stroke on HMI touch screen control panel
• Adjustable variable speed on HMI touch screen control panel
• Oil pressure gauge
• Air cooling
• T-slotted table and ram
• Common off the shelf components, typically of German or USA origin (Rexroth, Parker, Sneiders, and Seimens)
• Specifications
• Ton: 110
• Table Size (L x W): 32” x 20”
• Motor Power: 15 HP
• Down Speed: 236” I.P.M.
• Return Speed: 378” I.P.M.
• Working Speed: 24” I.P.M.
• Machine Dims. (L x W x H): 63” x 67” x 115”
• Weight: 12,125 lbs.
• Options
• Cushion Stroke: 6”
• Ejector cylinder
• Variable speeds
• Die sets
• Cushion
• Heated platens
• Custom height, bed size, stroke

Specifications

• Manufacturer: Revolution Machine Tools
• SKU: H-SMART C110
• Shipping Method: Flatbed
• Weight: 12,325 lb
• Dimensions: 68 × 72 × 120 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
