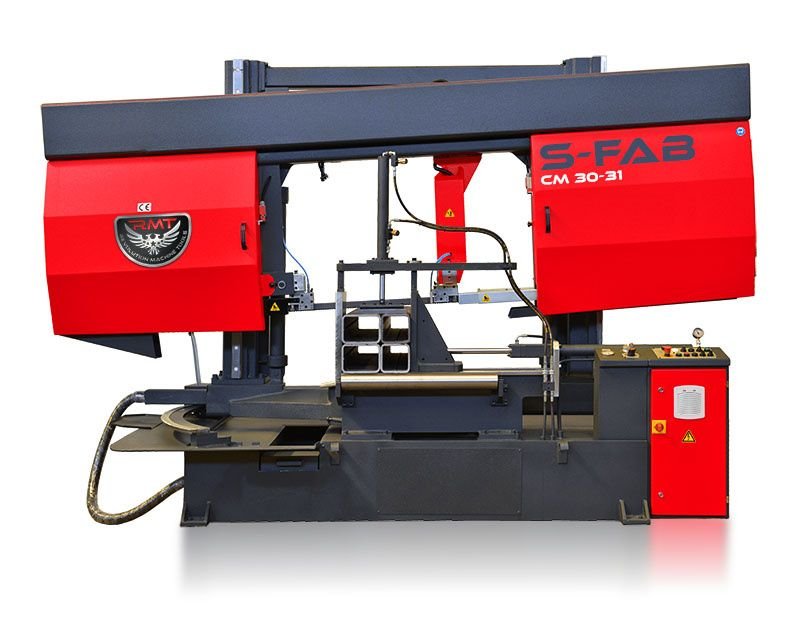

Revolution Machine Tools 10HP Semi-Automatic Column Type Single Miter Band Saw S-FAB CM 30-31

Revolution Machine Tools 10HP Semi-Automatic Column Type Single Miter Band Saw S-FAB CM 30-31 is a Revolution Machine Tools product in the Band Saws collection.

Product Details

• Cutting Speeds: 65- 328 ft/min
• Band Dims.: 331 x 1.61 x 0.051”
• Main Motor: 10 HP
• Capacity: 0°, 30°, 45°, 60°
• Features
• Control panel
• Blade brush
• Hydraulic vice
• Security switch

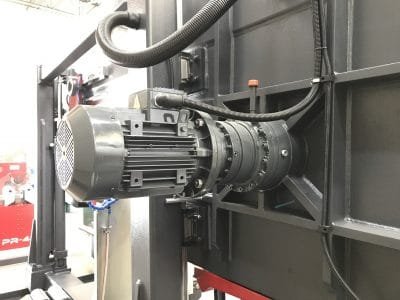

• Siti heavy duty gearbox
• Infinite variable speed inverter
• Sensitive pressure control
• Digital angle display
• Linear guide rails
• Turn table
• Turn table brake
• Hydromechanical blade tension
• Optical saw height adjustment

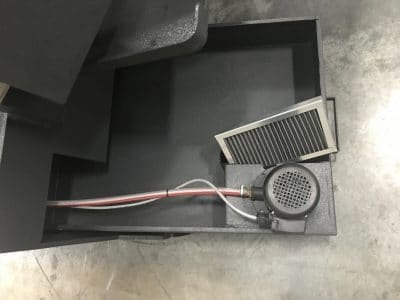

• Coolant pump
• 4ft roller table
• Digital angle readout
• Specifications
• Capacity at 0° Round: 31.9" (810 mm) Flat (H x W): 30.3" x 31.9" (770 x 810 mm) Square: 30.3" (770 mm)
• Round: 31.9" (810 mm)
• Flat (H x W): 30.3" x 31.9" (770 x 810 mm)
• Square: 30.3" (770 mm)
• Capacity at 30° Round: 27.6" (700 mm) Flat (H x W): 30.3" x 27.6" (770 x 700 mm) Square: 27.6" (700 mm)
• Round: 27.6" (700 mm)
• Flat (H x W): 30.3" x 27.6" (770 x 700 mm)
• Square: 27.6" (700 mm)
• Capacity at 45° Round: 21.9" (555 mm) Flat (H x W): 30.3" x 21.9" (770 x 555 mm) Square: 21.9" (555 mm)
• Round: 21.9" (555 mm)
• Flat (H x W): 30.3" x 21.9" (770 x 555 mm)
• Square: 21.9" (555 mm)
• Capacity at 60° Round: 12.6" (320 mm) Flat (H x W): 30.3" x 12.2" (770 x 310 mm) Square: 12.2" (310 mm)
• Round: 12.6" (320 mm)
• Flat (H x W): 30.3" x 12.2" (770 x 310 mm)
• Square: 12.2" (310 mm)
• Cutting Speeds: 65- 328 ft/min (20- 100 m/min)
• Band Dims.: 331 x 1.61 x 0.051” (8400 x 41 x 1.3 mm)
• Main Motor: 10 HP (7.5 kW)
• Hydraulic Motor: 2 HP (1.5 kW)
• Weight: 8,929 lbs. (4050 kg)
• Machine Dims. (L x W x H): 159" x 65" x 102" (4020 mm x 1630 mm x 2570 mm)
• Options
• Hydraulic blade tension
• Hydraulic top clamping
• Dropsa air/oil clean lubrication system
• Micro mist cooling
• 10ft roller table
• 10ft motorized roller table
• Laser line

Specifications

• Manufacturer: Revolution Machine Tools
• SKU: S-FAB CM 30-31
• Shipping Method: Flatbed
• Weight: 9,129 lb
• Dimensions: 164 × 70 × 107 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
