RAMS 5HP Single Phase Auxiliary Machine RAMS-2014

RAMS 5HP Single Phase Auxiliary Machine RAMS-2014 is a Rams Sheet Metal Equipment product in the Metal Forming & Shaping collection.

Product Details

• Capacity 20ga. Max–28ga Min. Mild Steel
• Approx. Speed 40 FPM
• Dimensions 63" x 26" x 34"
• Approx. Weight 600 LBS

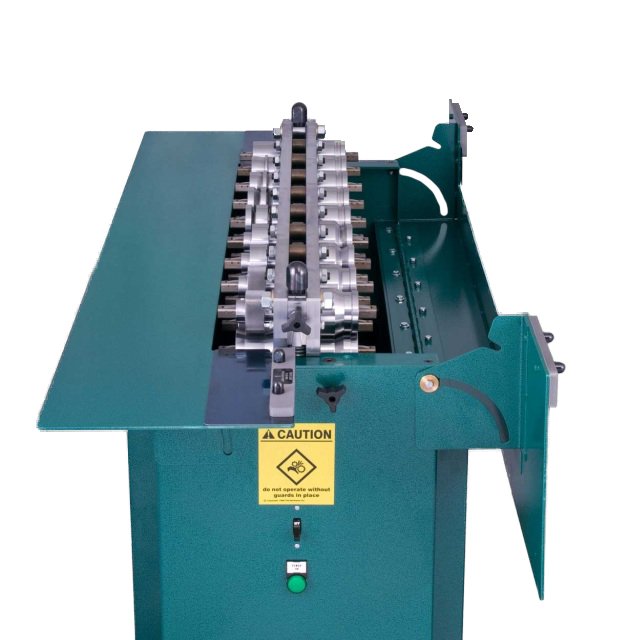

• The RAMS 2014 Auxiliary Machine is like no other machine available on the market today. Features a 5 HP motor 208-230V single phase. It was designed specifically for ease of use, flexibility and the convenience of the end user. Key features include: hinged table top and square drive shafts which allows easy access to change out a complete roll set in less than five minutes, quick change tooling which requires no keys or tools, and quick jam clearing. This machine can convert from a button lock to an Acme & Drive Cleat machine instantly.
• Specifications
• ROLL CHART & GAUGE CAPACITY
• 6 in 1 Tap-in Rolls: 22 ga Max | 26 ga Min
• ACME Double Seam Rolls: 20 ga Max | 26 ga Min
• Drive Cleat Rolls: 20 ga Max | 26 ga Min
• Male Button Lock Rolls: 20 ga Max | 22 ga Min
• Male Button Lock Rolls-01: 24 ga Max | 28 ga Min
• Female Button Lock Rolls: 20 ga Max | 22 ga Min
• Female Button Lock Rolls-01: 24 ga Max | 28 ga Min
• Pittsburgh Rolls: 20 ga Max | 22 ga Min
• Pittsburgh Rolls-01: 24 ga Max | 28 ga Min

Specifications

• Manufacturer: Rams Sheet Metal Equipment
• SKU: RAMS-2014
• Weight: 825 lb
• Dimensions: 72 × 30 × 50 in
