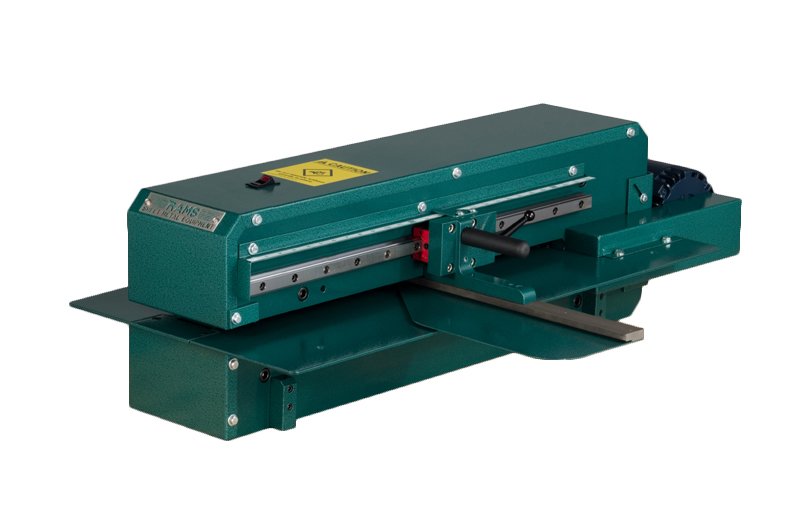

RAMS 16 Gauge Cabinet Slitter RAMS-2011-C

RAMS 16 Gauge Cabinet Slitter RAMS-2011-C is a Rams Sheet Metal Equipment product in the Metal Forming & Shaping collection.

Product Details

• Capacity 16 GA. MAX. Mild Steel
• MIN. Slit Width 3/4"
• MAX. Slit Width 24-3/8"
• Approx. Speed 65 FPM
• Description
• THK Bearing Slide Rail for effortless one hand adjustments
• Easy to read scale and an adjustable top cutter, eliminating the need for shims
• 1 HP electric motor, 110-115V single phase
• Cabinet is heavy gauge steel with a Hammertone Green Finish
• Holds a tolerance of +/- .007 over an 8 foot distance
• Specifications
• Dimensions: 36" x 28" x 34"
• Approx. Weight 410 LBS
• 16 GAUGE SLITTER MAXIMUM CUTTING CAPABILITIES
• MILD STEEL: 16 ga | .063"
• GALVANIZED SHEET METAL: 16 ga | .063"
• STAINLESS STEEL: 18 ga | .048"
• ALUMINUM: 14 ga | .080"
• COPPER: 14 ga | .080"
• BRASS: 14 ga | .080"
• TRUSS PLATES: 16 ga | .063"
• PLASTICS: 12 ga | .109"

Specifications

• Manufacturer: Rams Sheet Metal Equipment
• SKU: RAMS-2011-C
• Shipping Method: LTL Freight
• Weight: 540 lb
• Dimensions: 52 × 40 × 48 in
