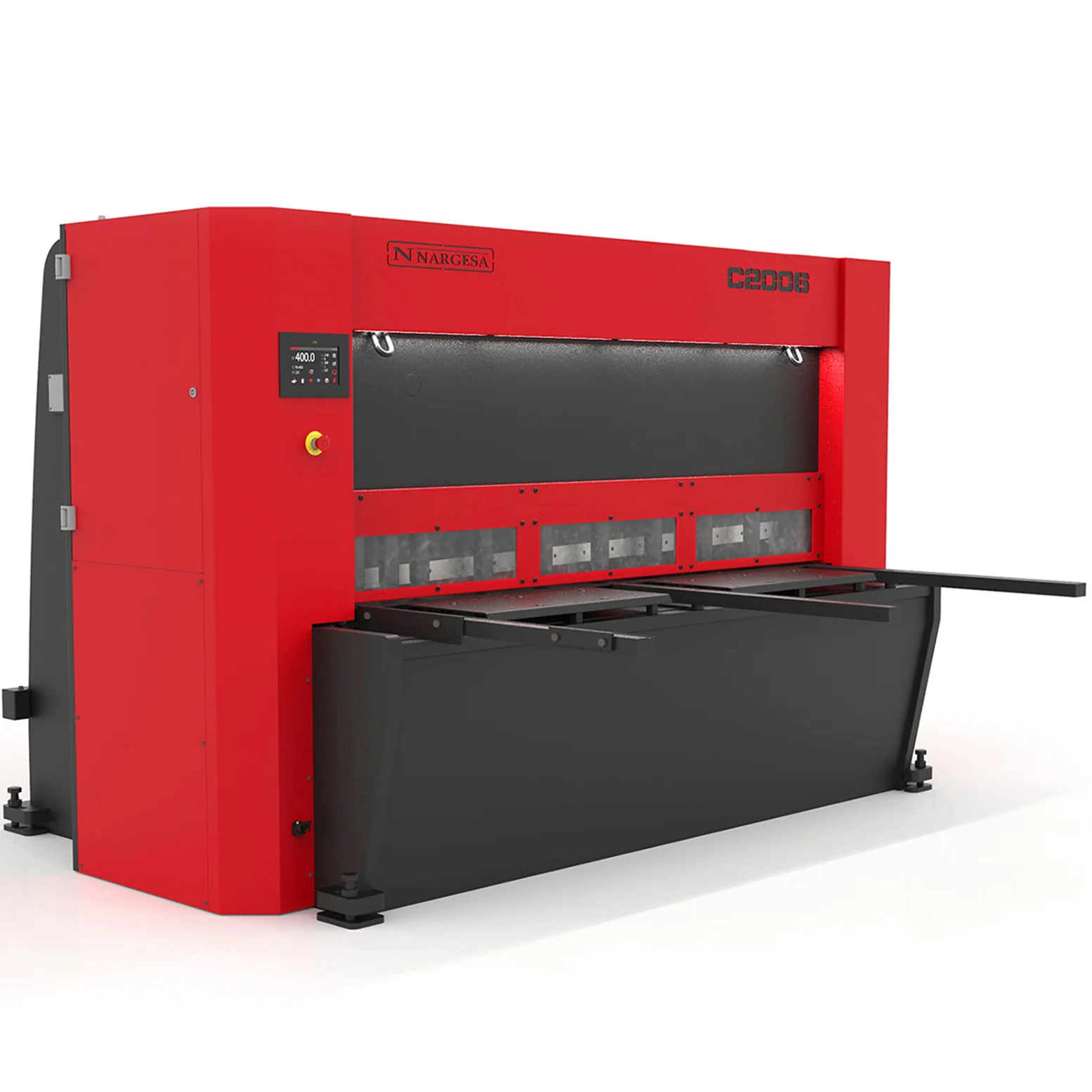

Quantum Machinery Nargesa 6.5ft 220V Three Phase Hydraulic Vertical Cut Shear with CNC Control C2006

Quantum Machinery Nargesa 6.5ft 220V Three Phase Hydraulic Vertical Cut Shear with CNC Control C2006 is a Quantum Machinery Group product in the Shears collection.

Product Details

• Cutting Length: 79”
• Goose Neck for Cuts with Bigger Lengths: 7.5”
• Accuracy & Repeatability of Positioning: from +/- 0.004”
• Millimeter Squaring Arm Length: 39.3”
• Description
• The last generation of QUANTUM NARGESA CNC Vertical cut shears are made of stabilized, welded steel that allows to take on big jobs without deformation.
• Advantages of Vertical Cut Instead of Swing Cut
• Energy Savings: Resistance of material in vertical cut is much lower, which becomes a considerable energetic saving
• Cutting Quality: Clean, perfect, and accurate cut
• Life of the Blades: The blades wear is almost nule. The life of the blades is 4 times higher than other sharing systems
• Features
• CNC back gauge
• Digital display
• 4-edged lower and upper blades suitable for stainless steel

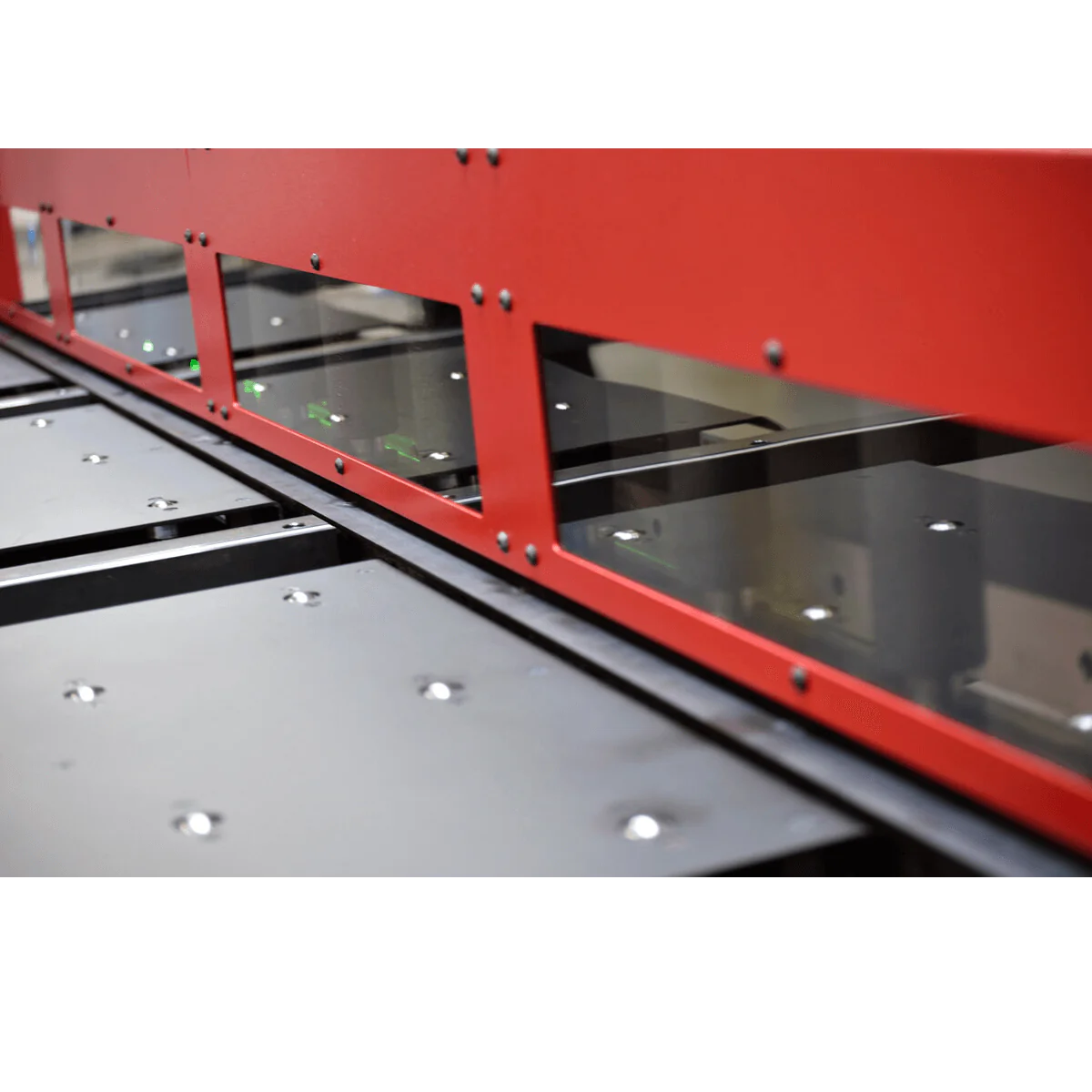

• Cutting area lit up by LEDs
• Thin marking zone for manual cutting
• Driving with safety pedal and emergency stop
• Back overture with safety optoelectronic devices
• CNC Control ESA 262 Features
• The operator only has to enter the type of material, thickness, distance from the gauge and the CNC will automatically arrange all components to obtain an optimal result
• Equipped with a 7” touch screen which makes all operations on the machine simpler and more intuitive
• You can manage up to 3 axes and 16 + 12 I/O with an integrated PLC
• Storage of thousands of parts programs
• 7” 800×480 color touch screen resolution
• 128 MB silicon disk
• 2 analog inputs, 12-bit resolution
• 16 digital inputs (24V DC)
• 16 digital outputs (24V DC, 0.7 A max) protected against overloads and short circuits
• 1 RS232 serial port
• 1 CAN port with 9 contacts Sub D F connector
• 24V DC power supply
• 1 USB input
• 1 Ethernet port that allows connection remotely
• Specifications
• Max Thickness in Mild Steel: 0.23”
• Max Thickness in Stainless Steel: 0.15”
• Independent Hydraulic Rammers: 10 Units
• Squaring Arms: Two
• Strokes per Minute: 10 stroke (all length)
• Fix Cut Inclination: 1.75°
• Guage Displacement: 27.5”
• Hydraulic Pump: 16 liters
• Container Capacity: 73 liters
• Motor Power: 7.5HP
• Electrical Requirements: 220V / Three Phase / 60Hz
• Machine Dims: 113" x 93" x 71"
• Approx Machine Weight: 11,250 lbs

Specifications

• Manufacturer: Quantum Machinery Group
• SKU: C2006
• Shipping Method: Flatbed
• Weight: 11,500 lb
• Dimensions: 120 × 100 × 84 in
