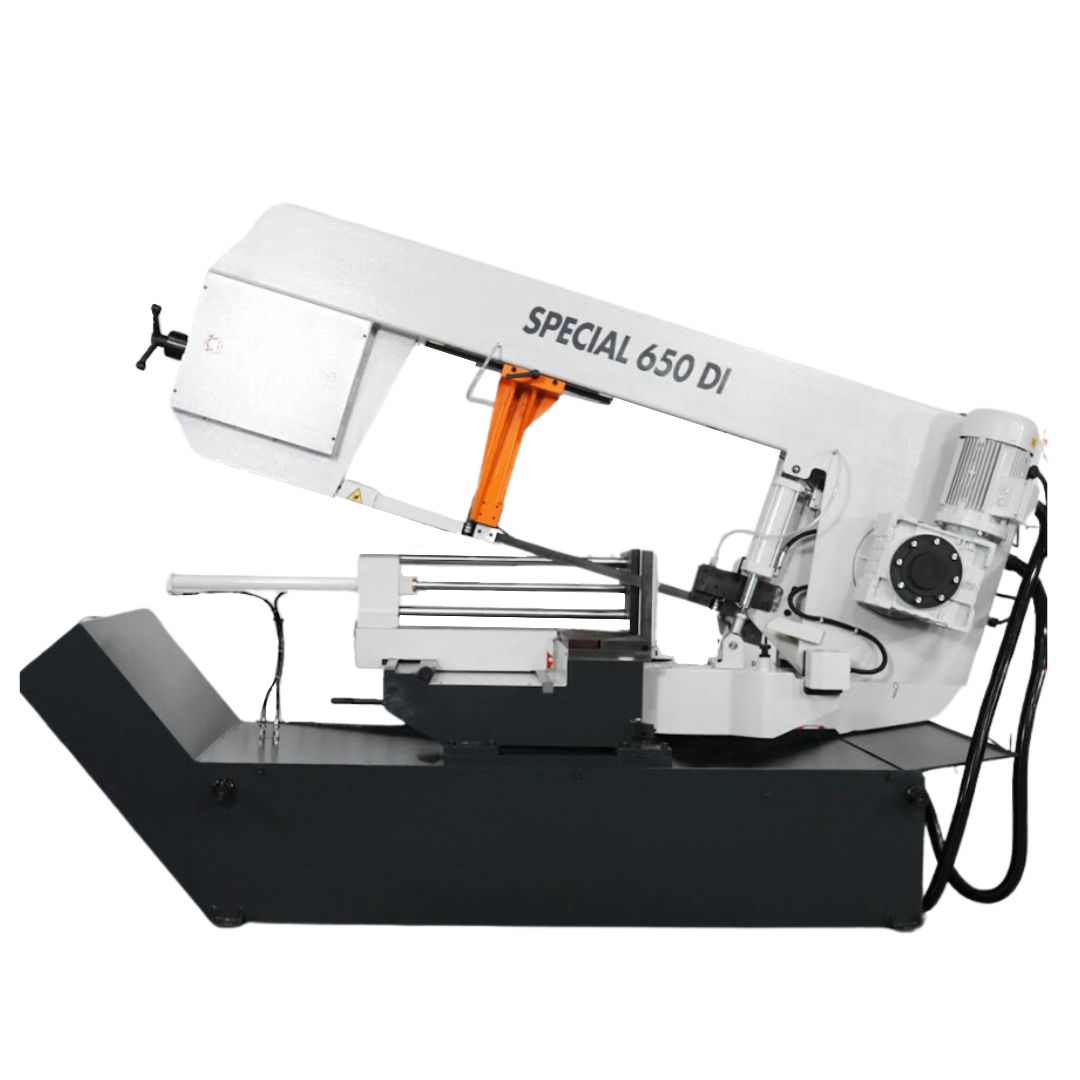

Quantum Machinery 480V Three Phase 18” Semi-Automatic Band Saw with Variable Speed Inverter S 650 DI

Quantum Machinery 480V Three Phase 18” Semi-Automatic Band Saw with Variable Speed Inverter S 650 DI is a Quantum Machinery Group product in the Band Saws collection.

Product Details

• Blade Size: 5,270mm x 34mm x 1.1mm
• Vice Jaws Height: 9.84”
• Bed Height: 30”
• Cutting Thickness: 0.059”
• Semi-Automatic Operation
• Vice closing and activation of band motor
• Cutting bow down stroke
• Return of bow to initial position
• Band motor stop
• Vice opening
• Maximum Cutting Capacities
• Round Tube Straight Cut: 18” 45° Left Cut: 17.6” 60° Left Cut: 9.4” 45° Right Cut: 17.6” 60° Right Cut: 11.75”
• Straight Cut: 18”
• 45° Left Cut: 17.6”
• 60° Left Cut: 9.4”
• 45° Right Cut: 17.6”
• 60° Right Cut: 11.75”
• Square Tube Straight Cut: 7.75” 45° Left Cut: 7.75” 60° Left Cut: 7.75” 45° Right Cut: 7.75” 60° Right Cut: 7.75”
• Straight Cut: 7.75”
• 45° Left Cut: 7.75”
• 60° Left Cut: 7.75”
• 45° Right Cut: 7.75”
• 60° Right Cut: 7.75”
• Solid Round Straight Cut: 17.6” 45° Left Cut: 16.9” 60° Left Cut: 11.75” 45° Right Cut: 16.1” 60° Right Cut: 11.75”
• Straight Cut: 17.6”
• 45° Left Cut: 16.9”
• 60° Left Cut: 11.75”
• 45° Right Cut: 16.1”
• Rectangular Tube Straight Cut: 17.6”H x 24.4”W 45° Left Cut: 15.6”H x 17.6”W 60° Left Cut: 8.5”H x 12.5”W 45° Right Cut: 13.4”H x 17.6”W 60° Right Cut: 10.6”H x 16.5”W
• Straight Cut: 17.6”H x 24.4”W
• 45° Left Cut: 15.6”H x 17.6”W
• 60° Left Cut: 8.5”H x 12.5”W
• 45° Right Cut: 13.4”H x 17.6”W
• 60° Right Cut: 10.6”H x 16.5”W
• Features
• Appropriately dimensioned flywheels
• Strong blade guides with tight stress-raiser bearings and adjustable widia tips
• Band stretching is obtained by electro-mechanical blade tensioner with microswitch for blade rotation
• Safety device on the flywheel casing and on the blade
• Adjustable stop for cuts of the same size
• Balde cleaning device with brush
• Includes: variable speed inverter, vertical hydraulic clamp, laser for saw cut, instruction manual, service tools, & 1 band saw blade
• Specifications
• Vice Jaws Length: 7.87”
• Cutting Range: 60° left up to 60° right
• Max Vice Opening: 24.4”
• 2 Speeds: 23 – 95 feet per minute
• Motor Hydraulic Gearcase: 0.55 kW
• Electropump for Band Cooling: 0.09 kW
• Electrical Requirements: 480V / Three Phase / 60Hz
• Overall Dims (w/o bar stop): 112” x 28” x 90”
• Overall Dims (w/bar stop): 112” x 75” x 90”
• Machine Weight: 2,760 lbs

Specifications

• Manufacturer: Quantum Machinery Group
• SKU: S 650 DI(480V)
• Shipping Method: LTL Freight
• Weight: 3,000 lb
• Dimensions: 120 × 84 × 98 in
