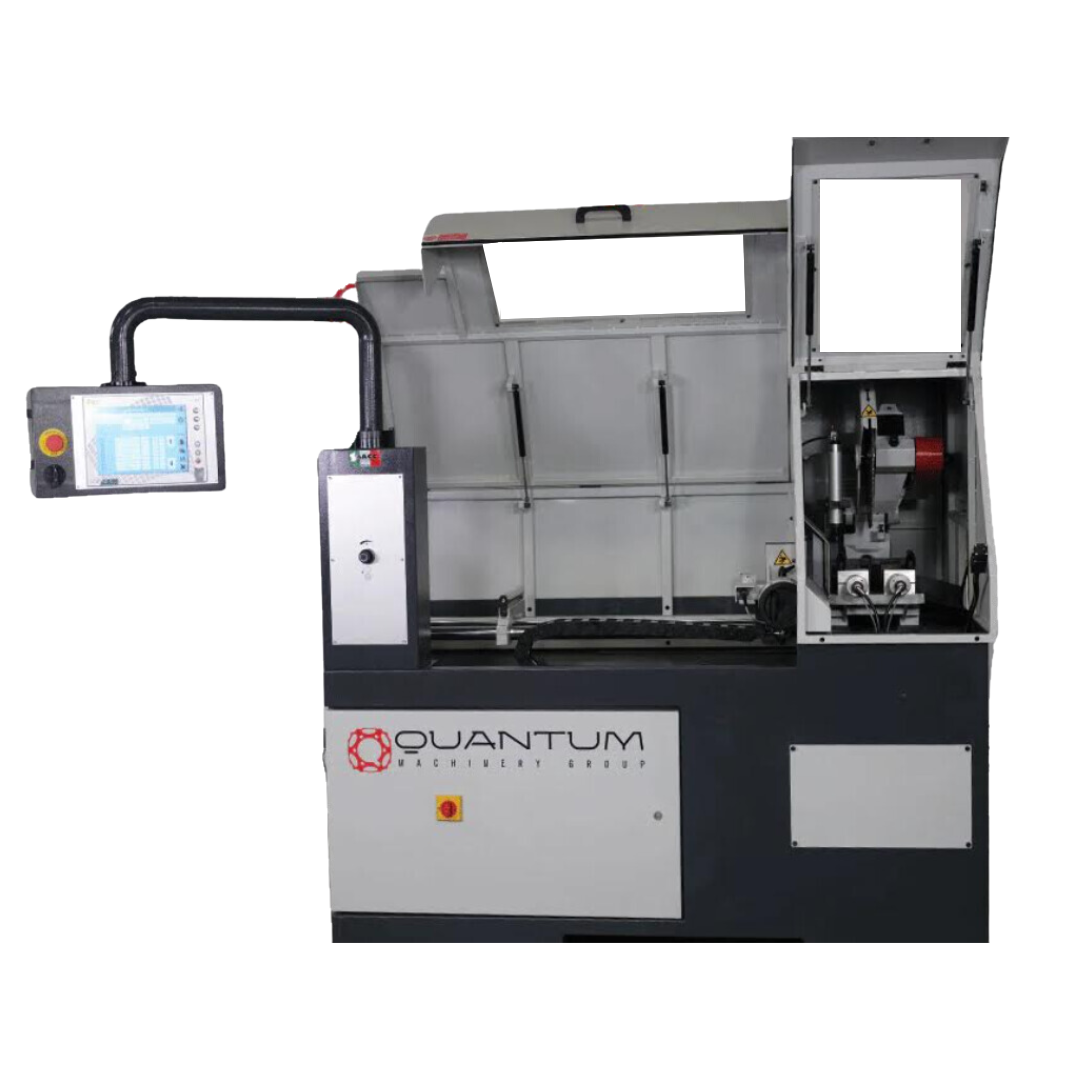

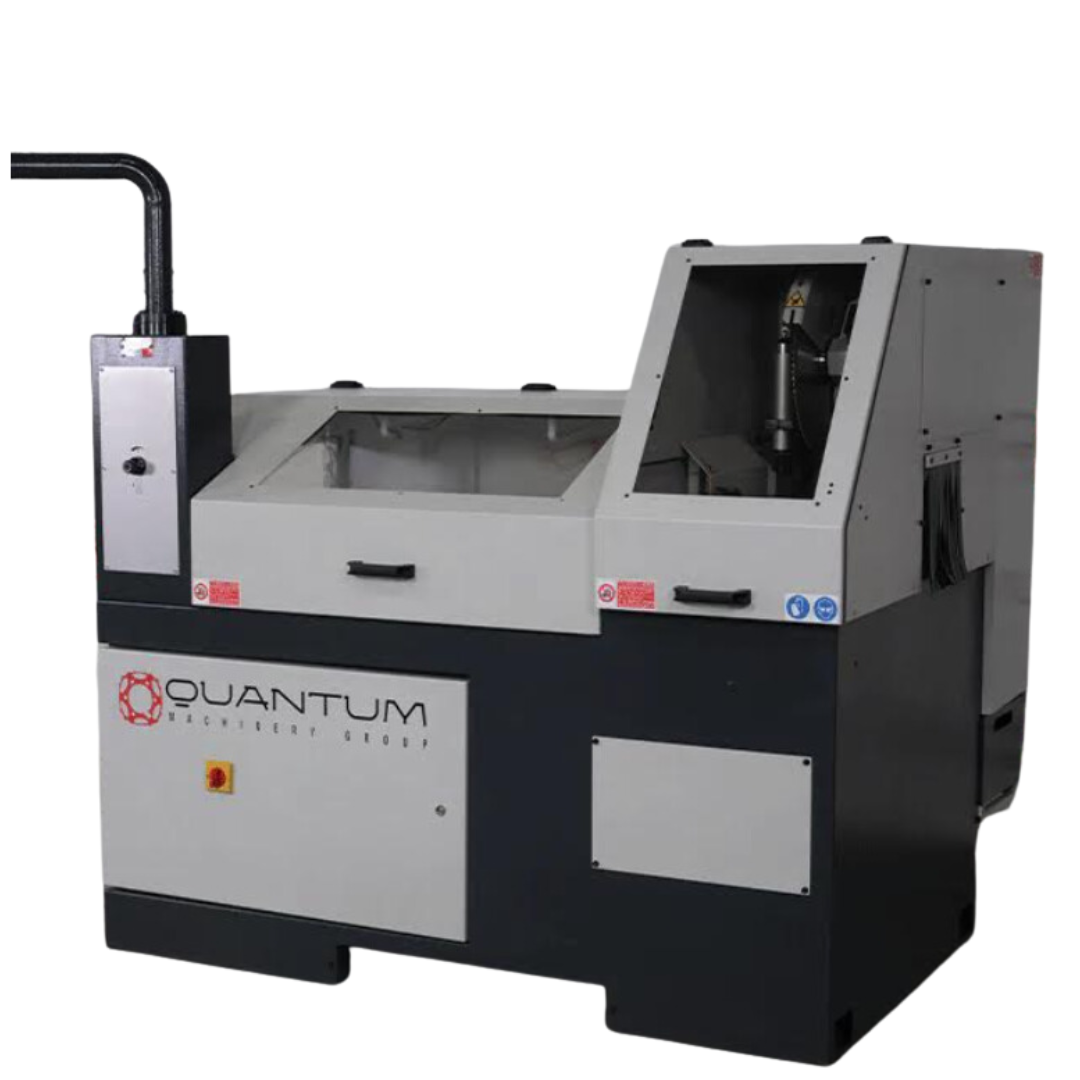

Quantum Machinery 480V Three Phase 15.75” Fully-Automatic Non-Ferrous Aluminum Cutting Saw TA 400-A

Quantum Machinery 480V Three Phase 15.75” Fully-Automatic Non-Ferrous Aluminum Cutting Saw TA 400-A is a Quantum Machinery Group product in the Cold Saws collection.

Product Details

• Blade Size (Bore Carbide Tip): 400mm x 2.5mm x 32mm
• Max Vice Opening: 7”
• Blade Speed: 3,000 rpm
• Includes: bar stop, bar support arm, instruction manual, service tools, & 1 Bore Carbide Tip
• Maximum Cutting Capacities
• Round Tube Straight Cut: 5.5”
• Straight Cut: 5.5”
• Square Tube Straight Cut: 4.25”
• Straight Cut: 4.25”
• Solid Round Straight Cut: 2.25
• Straight Cut: 2.25
• Rectangular Tube Straight Cut: 3.9”H x 7”W
• Straight Cut: 3.9”H x 7”W
• Operation
• Material feeds in and fixed vice locks
• The blade rotation and coolant delivery start
• Head descends to the set cut
• Stroke returns to the set measurement
• Head returns and blade rotation and coolant delivery stop
• Vice opens
• Features
• Automatic circular saw for cutting solid or profiles of aluminum or light alloys
• Supplied with 39 programs, each of them with 50 steps for a total of 1950 cutting positions with relevant piece-counter
• Blade holder shaft on bearings
• Two pneumatic vices
• Teflon jaws to fix the piece
• Specifications
• Electrical Requirements: 480V / Three Phase / 60Hz
• Overall Dims: 63” x 150” x 67”
• Machine Weight: 1,125 lbs

Specifications

• Manufacturer: Quantum Machinery Group
• SKU: TA 400-A(480V)
• Shipping Method: Flatbed
• Weight: 1,300 lb
• Dimensions: 150 × 63 × 67 in
