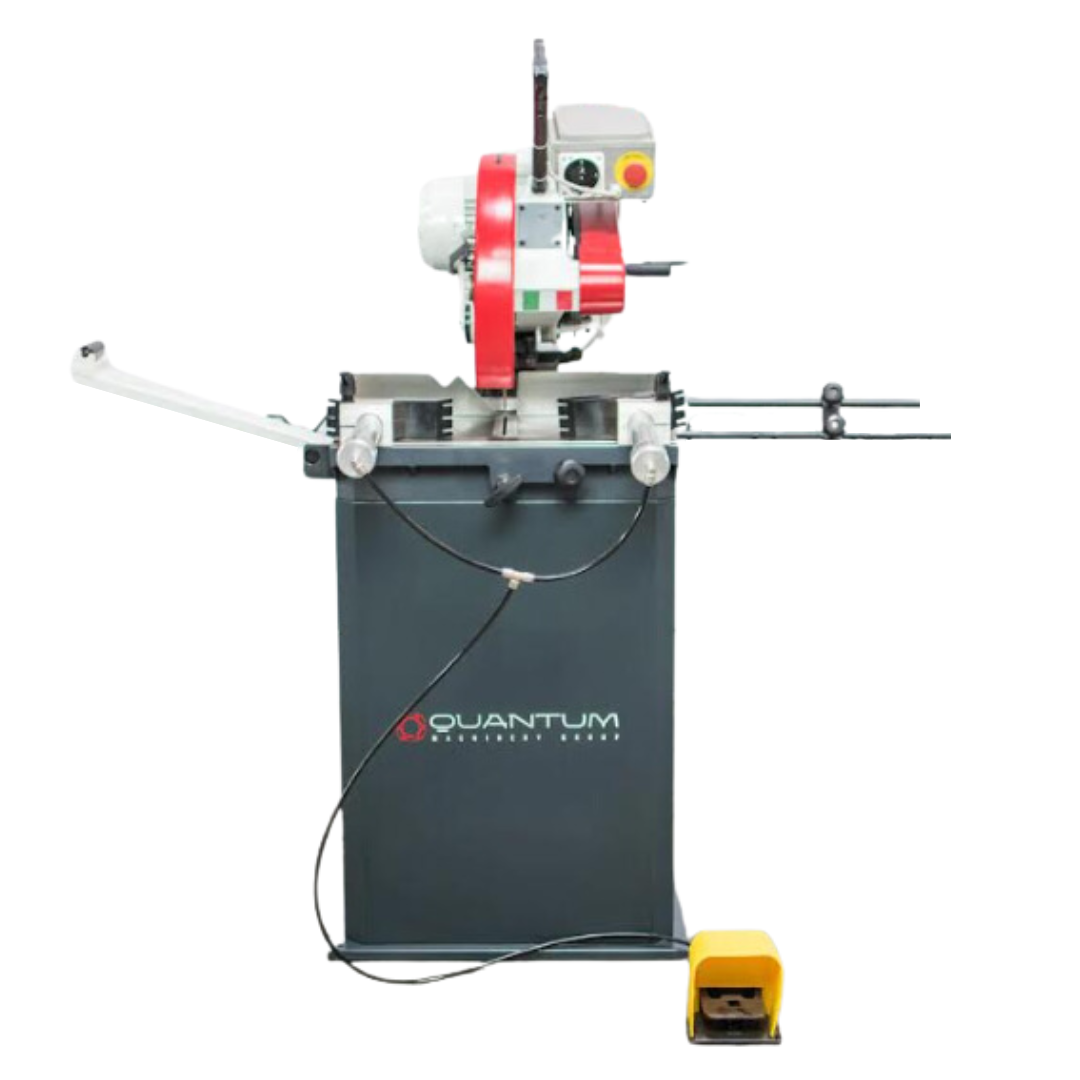

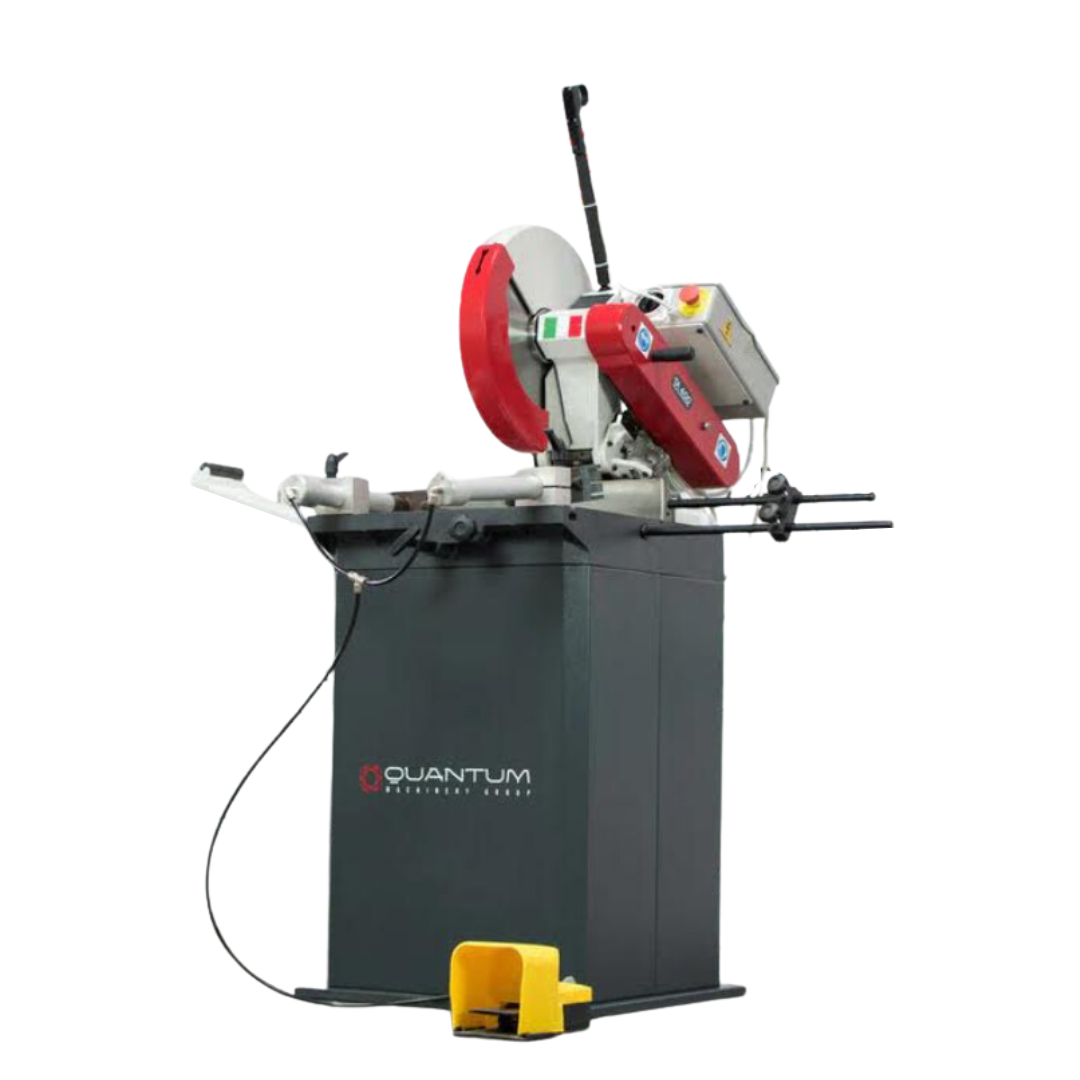

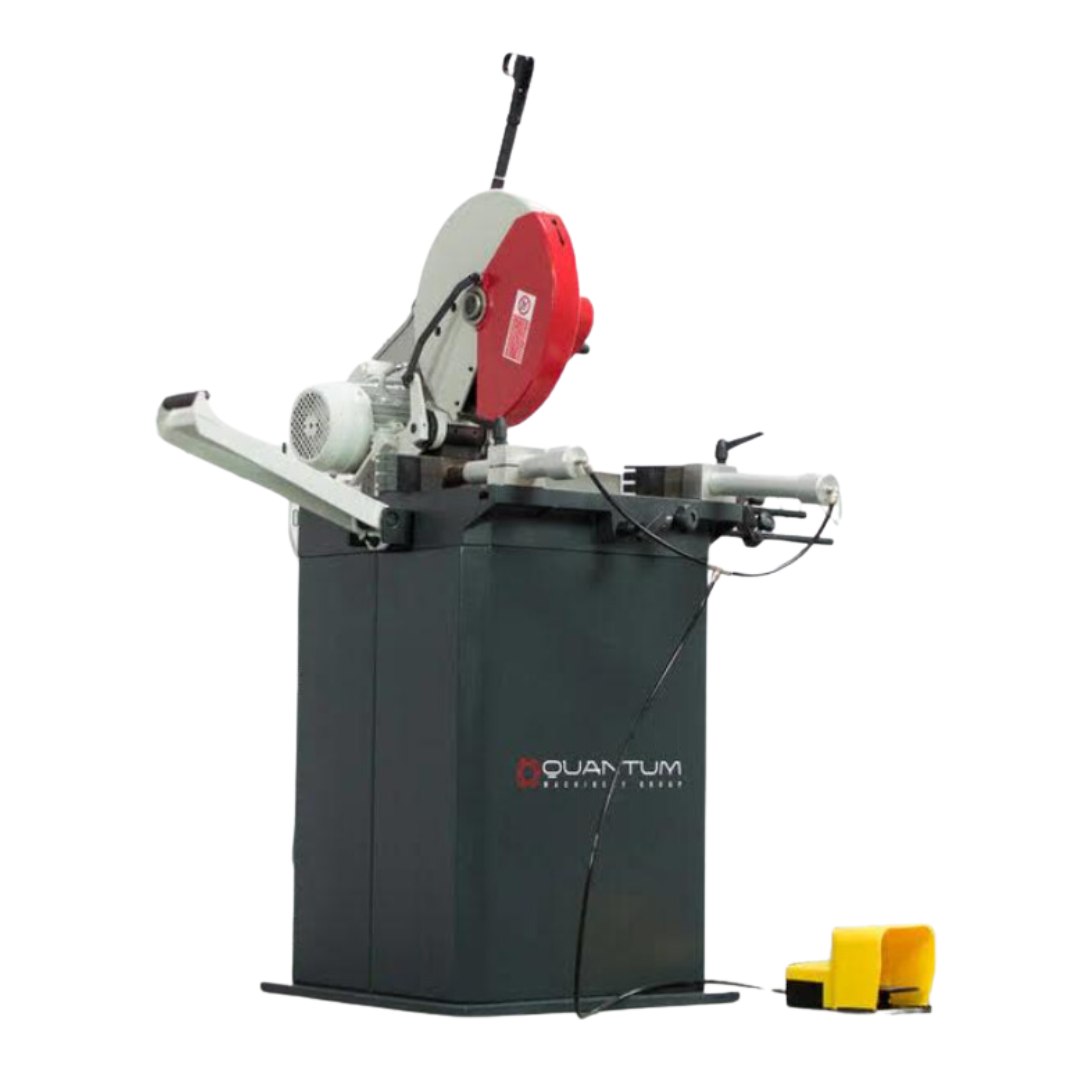

Quantum Machinery 15.75” 220V Three Phase Manual Non-Ferrous Circular Aluminum Cutting Saw TA 400

Quantum Machinery 15.75” 220V Three Phase Manual Non-Ferrous Circular Aluminum Cutting Saw TA 400 is a Quantum Machinery Group product in the Cold Saws collection.

Product Details

• Blade Size (Bore Carbide Tip): 400mm x 2.5mm x 32mm
• Max Vice Opening: 7”
• Blade Speed: 3,000 RPM
• Movable Cutting Head: 45° Left/Right
• Maximum Cutting Capacities
• Round Tube Straight Cut: 5.5” 45° Left/Right Cut: 5”
• Straight Cut: 5.5”
• 45° Left/Right Cut: 5”
• Square Tube Straight Cut: 4.25” 45° Left/Right Cut: 3.9”
• Straight Cut: 4.25”
• 45° Left/Right Cut: 3.9”
• Solid Round Straight Cut: 2.25” 45° Left/Right Cut: 2.25”
• Straight Cut: 2.25”
• 45° Left/Right Cut: 2.25”
• Rectangular Tube Straight Cut: 3.9”H x 7”W 45° Left/Right Cut: 3.9”H x 5.9”W
• Straight Cut: 3.9”H x 7”W
• 45° Left/Right Cut: 3.9”H x 5.9”W
• Features
• Movable Cutting Head: from 45° Left up to 45° Right and Inclinable head up to 45° left
• Manual circular saw for aluminum
• 24V low voltage installation with hold-to-run head control handle
• Locking pin ensuring fast positioning of the head
• Blade holder shaft on bearings
• Movable bed assembled on spheres
• Two manual vices and Teflon jaws for material clamping
• Includes: Steel Pedestal/Stand, Pedal Controlled Pneumatic Vice, Rapid Stop on Motor, Instruction Manual, Service Tools, & 1 Bore Carbide Tip Blade
• Specifications
• Inclinable Head: 45° Left
• Electrical Requirements: 220V / Three Phase / 60Hz
• Machine Dims: 40” x 59” x 36”
• Machine Weight: 350 lbs

Specifications

• Manufacturer: Quantum Machinery Group
• SKU: TA400
• Shipping Method: LTL Freight
• Weight: 450 lb
• Dimensions: 48 × 70 × 48 in
• Country of Origin: Italy
